Warn 110759 Installation Instructions Manual

Your safety, and the safety of others, is very important. To help you make informed decisions about safety, we have provided
installation and operating instructions and other information on labels and in this guide. This information alerts you to
potential hazards that could hurt you or others. It is not possible to warn you about all potential hazards associated with this
product, you must use your own good judgment.
CARELESS INSTALLATION AND OPERATION CAN RESULT IN SERIOUS INJURY OR EQUIPMENT DAMAGE. READ AND
UNDERSTAND ALL SAFETY PRECAUTIONS AND OPERATING INSTRUCTIONS BEFORE INSTALLING AND OPERATING
THIS PRODUCT.
This guide identifies potential hazards and has important safety messages that help you and others avoid personal injury or
death. WARNING and CAUTION are signal words that identify the level of hazard. These signal words mean:
WARNING signals a hazard that could cause serious injury or death, if you do not follow recommendations.
signals a hazard that may cause minor to moderate injury, if you do not follow recommendations.
This guide uses NOTICE to call attention to important mechanical information, and Note: to emphasize general information
worthy of special attention.
• Always Know Your Winch. Take time to fully read the Instructions and/or Operations Guide, and/or Basic Guide to Winching Techniques, in order to understand your winch and its operations.
• Never work under vehicle before properly securing vehicle.
• Always use appropriate and adequate care in lifting components into place.
• Never work under vehicle before properly securing vehicle.
• Always use appropriate and adequate care in lifting components into place.
• Never use a jack to support the vehicle.
• Always use jack stands in pairs to support the vehicle.
• Always use jacks or jack stands only on a hard, stable, and level surface.
• Never exceed the rated capacity of a jack or jack stands.
• Always verify that the parking brake is set, the transmission is in park (automatic) or reverse (manual) and the rear wheels are blocked before working on vehicle.
• Never work under vehicle before properly securing vehicle.
• Always use appropriate and adequate care in lifting components into place.
• Always insure components will remain secure during installation and operation.
• Always tighten all nuts and bolts securely, per the installation and operation.
• Always perform regular inspections and maintenance on the winch, winch mount and related hardware.
• Always replace all worn or damaged parts before operating.
• Never operate this WARN product with damaged or missing parts.
• Always use extreme caution when drilling on any vehicle. Make sure that all fuel lines, brake lines, electrical wires, and other objects are not punctured or damaged when / if drilling on the vehicle. Thoroughly inspect the
area to be drilled (on both sides of material) prior to drilling, and relocate any objects that may be damaged. Failure to inspect the area to be drilled may result in vehicle damage, electrical shock, fire or personal injury.
• Always use extreme caution when cutting and trimming during fitting.
• Always wear safety glasses when installing this kit. A drilling operation will cause flying metal chips. Flying chips can cause eye injury.
• Always remove jewelry and wear eye protection.
• Never lean over battery while making connections.
• Never route electrical cables across any sharp edge, through or near moving parts, near parts that become hot.
WARN INDUSTRIES, INC. 12900 S.E. Capps Road,
Clackamas, OR USA 97015-8903, 1-503-722-1200, FAX: 1-503-722-3000
Customer Service: 1-800-543-9276
Dealer Locator Service: 1-800-910-1122
International Sales/Customer Service: 1-503-722-3008
International Fax: 1-503-722-3005
©2023 Warn Industries, Inc.WARN® and the WARN logo are trademarks of Warn Industries Inc.
INSTALLATION INSTRUCTIONS

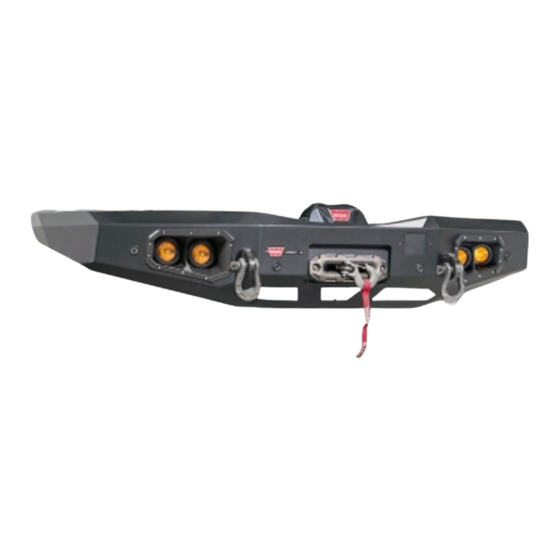

ASCENT FRONT BUMPER
Part Number: 110759 AND 110760
Application: 2023 Ford Super Duty
G E N E R A L S A F E T Y P R E C A U T I O N S
W A R N I N G
IMPACT AND MOVING PARTS ENTANGLEMENT HAZARD
Failure to observe these instructions could lead to severe injury or death
Read installation and operating instructions thoroughly.
1
CAUTION
110784A0
