Rightline Gear 100605 Setup Manual

Rear Car Clips Set Up Guide
Set Up
www.rightlinegear.com/setup.html
Video:
The correct attachment of this product is critical and
beyond the control of Rightline Gear. The safe use
and long life of this product depends entirely on
your good judgment and following these directions.

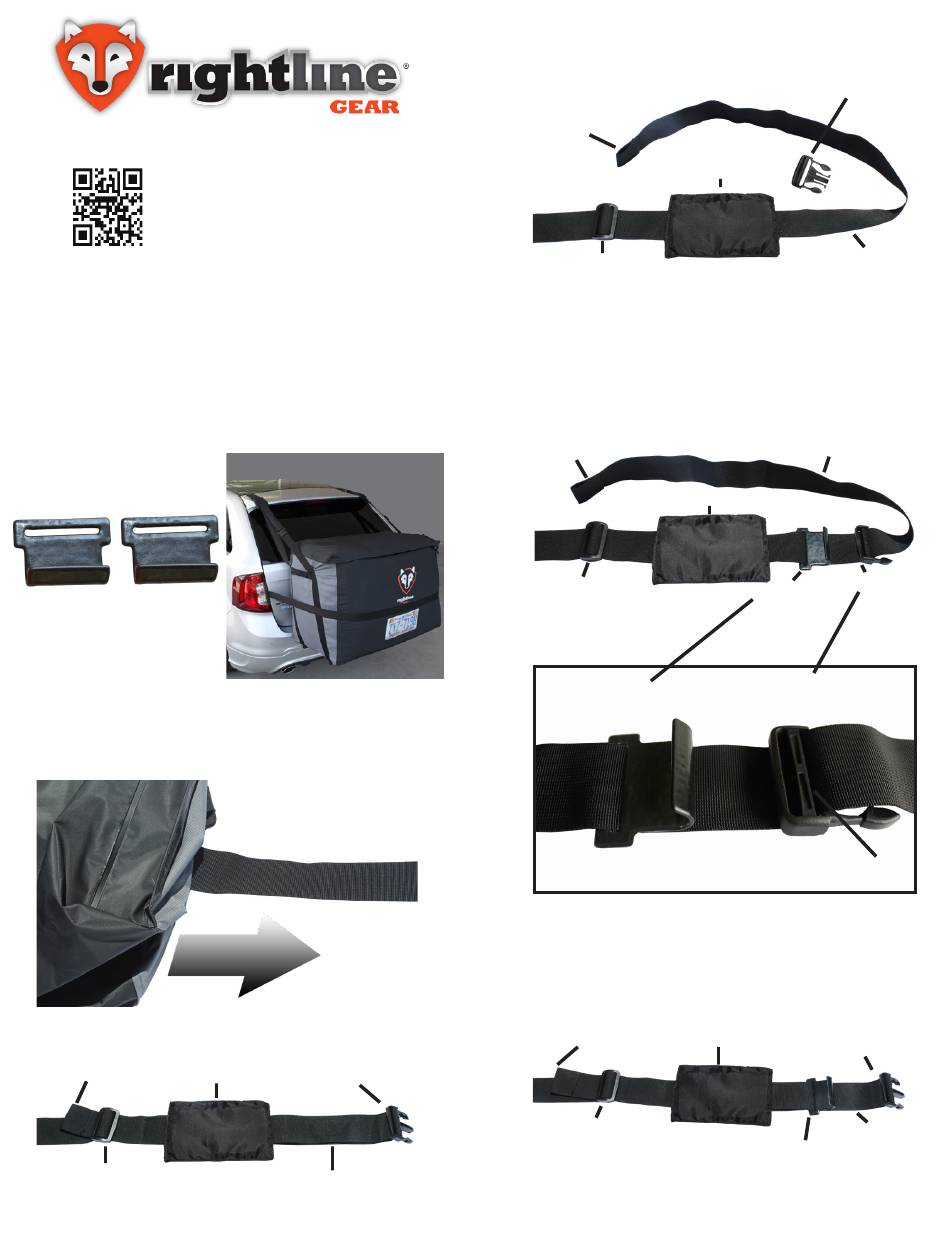

Add the Rear Car Clips (Fig 1) to the side straps of the
Rightline Gear Car Back Carrier to attach the carrier to
vehicles WITHOUT a roof rack (Fig 2).
Fig 1

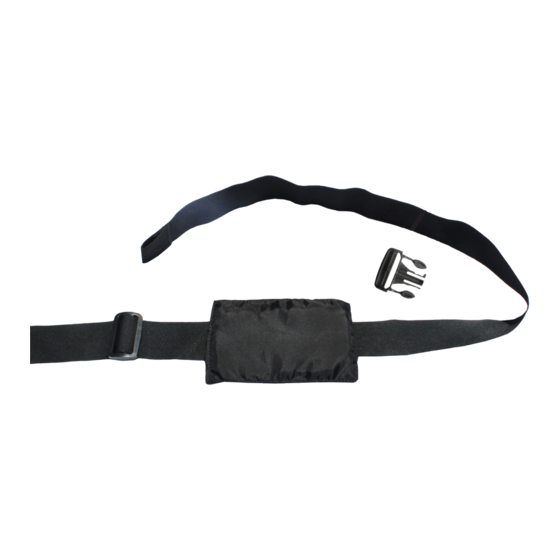

1- Place the Car Back Carrier top side up. Extend one of
the long side straps out. Make sure the strap is not twisted
(Fig 3 and Fig 4).
Top Side
Fig 3
Strap End
Tri-glide
Fig 4
Fig 2
Male
Buckle
Pad
Strap
2-Remove the male buckle from the strap. Make sure the
other parts are positioned as shown (Fig 5).
Strap End
100605
Fig 5
3-Add the Rear Car Clip and the male buckle onto the
strap (Fig 6). Make sure the strap goes through the correct
side of the buckle (Fig 6 Close-Up)
Strap End
Tri-glide
Fig 6
Fig 6 Close-Up
4-Run the strap back through the buckle, the Rear Car Clip,
the pad, and the tri-glide. (Fig 7).
Strap End
Fig 7
5-Repeat steps 1-4 for the second long side strap.
Pad
Tri-glide
Pad
Rear
Car Clip
Pad
Tri-glide
Male
Buckle
Strap
Strap
Male
Rear
Buckle
Car Clip
Male
Buckle
Grooves
Male
Buckle
Strap
Rear
Car Clip
