In this figure, the components R101,R102,C101 and C102 is used for antenna matching, the components' value
only can be got after the antenna tuning. Usually, matching components' value is provided by antenna vendor, the
default value of R101 and R102 are 0Ω, and reserve the place of C101 and C102 without soldering.
The RF test connector in above figure is used for conducted RF performance test, and should be placed as close as
possible to the module's RF_ANT pin. The traces in bold type should be treated as 50Ω impedance controlled line
in PCB layout. For details about radio frequency trace layout, please refer to document [9].
SIM900-DS_Hardware Design_V1.00
RF test connector
GND 59
RF_ANT
60
GND 61

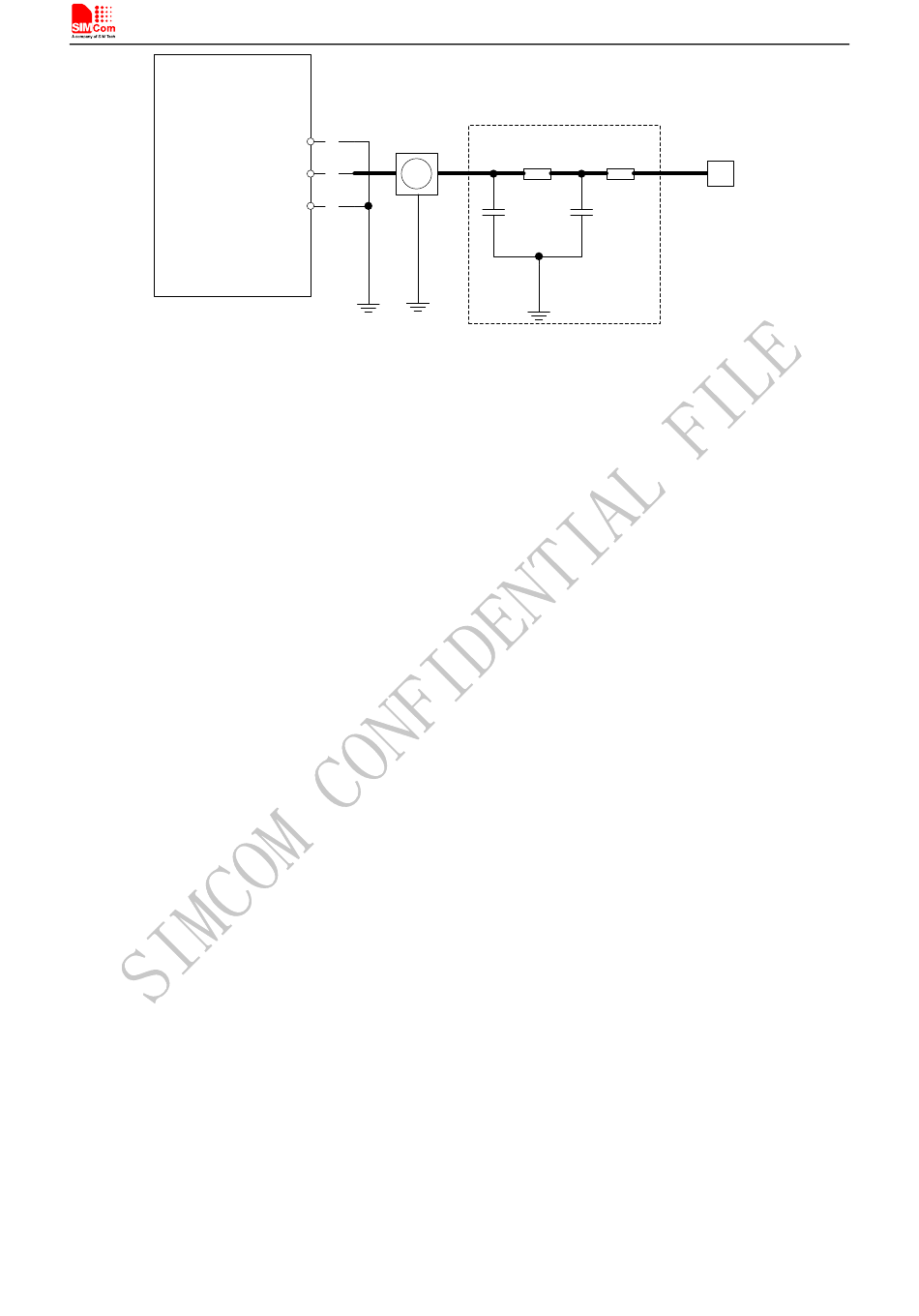

Figure 36: Antenna matching circuit
