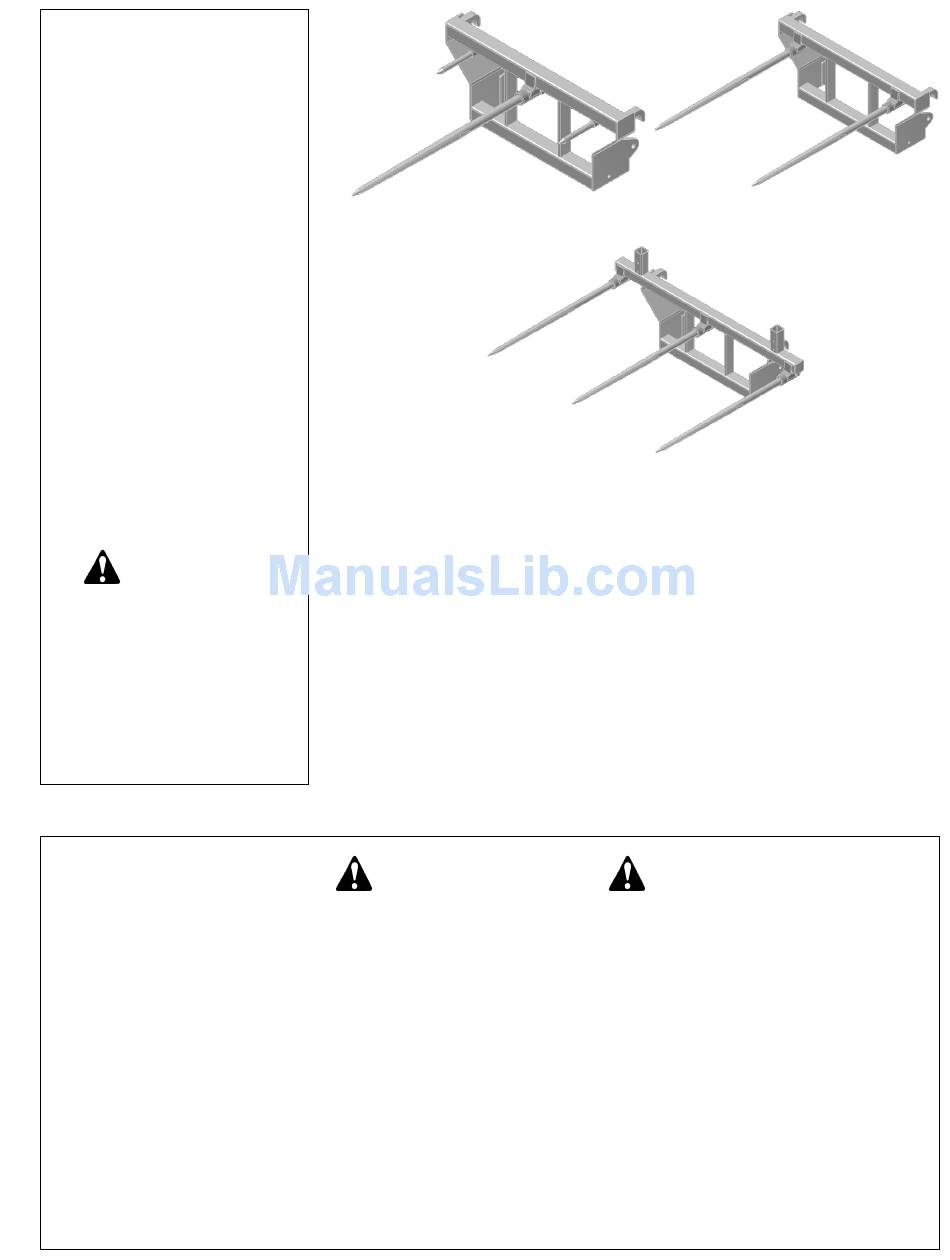

OWNER'S /
OPERATOR'S
MANUAL
MODEL NO.'s
GLB-2200
GLB-3000
GLB-330
GLB-340
CAUTION
For Safe Operation
Read Rules And
Instructions Carefully
SINO LEEINGLES, PIDA AYUDA
A AIGUIEN QUE SI LO LEA
PARA QUE LE TRADUZCA LAS
MEDIDAS DE SEGURIDAD.
THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE THOROUGHLY UNDERSTOOD
1. Select an area for assembly that is clean and free of any
debris which might cause persons working on the
assembly to trip.
2. Do not lift heavy parts or assemblies. Use crane, jack,
tackle, fork trucks or other mechanical devices.
3. Preview the assembly instructions in your operator's
manual before proceeding further.
4. If the assembly instructions call for parts or assemblies to
be blocked up, use only blocking material that is in good
condition and is capable of handling the weight of the
assembly to be blocked. Also insure that the blocking
material is on a clean, dry surface.
5. Never put hands, or any part of body, under blocked up
assemblies if at all possible.
GLB-2200
GLOBAL / EURO-HOOK STYLE
BALE SPEAR ATTACHMENTS
Safety Instructions
Assembly & Mounting
Operating Instructions
CAUTION
BEFORE ATTEMPTING TO BEGIN ASSEMBLING THIS MACHINE
GLB-340
INTEGRATED DESIGN
6. After completing assembly, thoroughly inspect the
machine to be sure that all nuts, bolts, hydraulic fittings
or any other fastened assemblies have been thoroughly
tightened.
7. Before operating the machine, thoroughly read the
operation section of your operator's manual.
8. Before operating, read the maintenance section of your
operator's manual to be sure that any parts requiring
lubrication, such as gearboxes, are full, to avoid any
possible damage.
9. Before operating equipment – If you have any
questions regarding the proper assembly or
operation, contact your dealer or representative.
GLB-3000
Maintenance
Repair Parts
Advertisement
Table of Contents
Related Manuals for Worksaver GLB-3000
Summary of Contents for Worksaver GLB-3000
-
Page 1: Safety Instructions
OWNER’S / OPERATOR’S MANUAL MODEL NO.’s GLB-2200 GLB-3000 GLB-330 GLB-340 CAUTION For Safe Operation Read Rules And Instructions Carefully SINO LEEINGLES, PIDA AYUDA A AIGUIEN QUE SI LO LEA PARA QUE LE TRADUZCA LAS MEDIDAS DE SEGURIDAD. THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE THOROUGHLY UNDERSTOOD BEFORE ATTEMPTING TO BEGIN ASSEMBLING THIS MACHINE 1. -
Page 2: Table Of Contents
Like all mechanical products, it will require cleaning and upkeep. Use only genuine Worksaver, Inc. service parts. Substitute parts will void the warranty and may not meet stan- dards required for safe and satisfactory operation. Record the model and serial number of your Attachment here: Model:________________________________________ Serial Number:_______________________________ RETAIL CUSTOMER’S RESPONSIBILITY... -
Page 3: Warranty
2. If the unit has been subjected to misapplication, abuse, misuse, negligence, fire or other accident. 3. If parts not made or supplied by Worksaver have been used in connection with the unit, if, in sole judge- ment of Worksaver such use affects its performance, stability, or reliability. -
Page 4: Safety Information
To the Owner/Operator/Dealer All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded opera- tor who recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this implement to be used with all its safety equipment properly attached to minimize the chance of accidents. Read the safety messages on the implement and shown in your manual. -
Page 5: Safety Instructions
SAFETY INSTRUCTIONS (continued) EQUIPMENT SAFETY GUIDELINES Safety of the operator is one of the main concerns in designing and developing a new piece of equipment. Designers and manufacturers build in as many safety features as possible. However, every year many accidents occur which could have been avoided by a few seconds of thought and a more careful approach to handling equipment. -
Page 6: Tire Safety
SAFETY INSTRUCTIONS SAFETY SIGNS Keep safety signs clean and legible at all times. Replace safety signs that are missing or have become illegible. Replaced parts that displayed a safety sign should also display the current sign. Safety signs are available from your Distributor or Dealer Parts Department or the factory. How to Install Safety Signs: Be sure that the installation area is clean and dry. -
Page 7: Safety Training
SAFETY INSTRUCTIONS SAFETY TRAINING Safety is a primary concern in the design and manufacture of our products. Unfortunately, our efforts to pro- vide safe equipment can be wiped out by a single careless act of an operator. In addition to the design and configuration of equipment, hazard control and accident prevention are dependent upon the awareness, concern, prudence and proper training of personnel involved in the operation, transport, maintenance and storage of equipment. -
Page 8: Operational Safety
SAFETY INSTRUCTIONS PREPARATION (continued) Personal protection equipment including hard hat, safety glasses, safety shoes, and gloves are recommended during assembly, installation, operation, adjustment, maintaining, repairing, removal, or moving the implement. Do not allow long hair, loose fitting clothing or jewelry to be around moving parts. PROLONGED EXPOSURE TO LOUD NOISE MAY CAUSE PERMANENT HEARING LOSS! Tractors with or without equipment attached can often be noisy enough to cause permanent, partial hearing loss. - Page 9 SAFETY INSTRUCTIONS OPERATIONAL SAFETY (continued) Most accidents occur because of neglect or carelessness. Keep all helpers and bystanders at a safe distance. REMEMBER FALLING BALES CAN ROLL OR TUMBLE. Beware of low electrical wires when loader is raised. Serious injury or death can result if contact is made. Always insert spears into the bale –...
- Page 10 SAFETY INSTRUCTIONS (continued) OPERATIONAL SAFETY (continued) Allow for additional length of loader and bale on tractor while turning. Never allow anyone to walk or work under a raised loader. Do not use loader for a work platform. Do not lift or carry anyone on loader or in bucket or on attachment.
-
Page 11: Transport Safety
SAFETY INSTRUCTIONS (continued) TRANSPORT SAFETY Comply with state and local laws governing highway safety and movement of farm machinery on public roads. The use of flashing amber lights is acceptable in most localities. However, some localities prohibit their use. Local laws should be checked for all highway lighting and marking requirements. When driving the tractor and equipment on the road or highway under 20 mph (32 kph) at night or during the day, use flashing amber warning lights and a slow moving vehicle (SMV) identification emblem. -
Page 12: Maintenance Safety
SAFETY INSTRUCTIONS (continued) MAINTENANCE SAFETY Good maintenance is your responsibility. Poor maintenance is an invitation to trouble. Follow good shop practices. - Keep service area clean and dry. - Be sure electrical outlets and tools are properly grounded. - Use adequate light for the job at hand. Make sure there is plenty of ventilation. -
Page 13: Storage Safety
SAFETY INSTRUCTIONS MAINTENANCE SAFETY (continued) After servicing, be sure all tools, parts and service equipment are removed. Check to ensure all safety signs are installed and in good condition. (See safety sign section for location drawing.) Do not allow grease or oil to build up on any deck or platform. Never replace hex bolts with less than grade five bolts unless otherwise specified, i.e. -
Page 14: Safety Signs
Failure to do this can allow bale roll back when loader is raised, causing serious injury or death. (Models GLB-3000, GLB-330, GLB-340) BE CAREFUL! Use a clean, damp cloth to clean safety decals. Avoid spraying to close to decals when using a pressure washer;... -
Page 15: Preparation Instructions
Forged (3) GLB-340 Forged (3) WARNING! For multiple spear Models GLB-3000, GLB-330, GLB-340, always insert spears into the bale – NEVER under the bale. Failure to insert spears into bale can allow bale to roll back when loader is raised, causing serious injury or death. -
Page 16: Operation
Secure with the ” x 1 ” bolts provided. On the Models GLB-3000, GLB-330, and GLB-340, install the long, forged main spears into the casting sockets in the main frame and align the cross hole in the spear with the hole in the socket. - Page 17 INSTRUCTIONS OPERATION (continued) —————————————————— NOTE: In cold weather, a bale frozen to the ground may exceed the lifting capacity of spear and loader. Damage to spear or loader may occur. Not covered under warranty. NOTE: Soft center bales will tend to droop after being lifted by a single spear.
- Page 18 INSTRUCTIONS HANDLE BALES SAFELY Improper use of loaders to handle bales can result in serious injury or death to the operator. This could be caused by the bale tumbling back down the loader into the operator’s station. For optimum stability and visibility: •...
-
Page 19: Maintenance
OWNER SERVICE MAINTENANCE —————————————————— WARNING! Always stop the tractor, set brake, shut off engine, remove key, and lower loader to ground before attempting to service. Never leave equipment unat- tended with engine running. WARNING! Do not work under a raised loader unless it is securely blocked or held in position. -
Page 20: Parts Lists
GLB-2200 PARTS LIST... - Page 21 GLB-3000 PARTS LIST...
- Page 22 GLB-330 PARTS LIST...
- Page 23 GLB-340 PARTS LIST...
-
Page 24: Parts Lists
OPTIONAL UPRIGHT KIT PARTS LIST (#831095) -
Page 25: Safety Precautions
ALWAYS GIVE THE FOLLOWING INFORMATION: 1. PART NUMBER 2. PART DESCRIPTION 3. MODEL NUMBER 4. NAME OF ITEM MAKE EVERY DAY A HOLIDAY FROM ACCIDENTS! WORKSAVER, INC. P.O. BOX 100 LITCHFIELD, IL 62056-0100 WEB: http:// www.worksaver.com (217) 324-5973 E-MAIL: sales@worksaver.com...
