Worksaver Flip Over FOH-5 Operator's Manual

Flip-over spike-tooth harrow
Hide thumbs

Advertisement

Table of Contents

OWNER'S /
OPERATOR'S
MANUAL
MODEL NO.
FOH-5
CAUTION
For Safe Operation
Read Rules And
Instructions Carefully
SINO LEEINGLES, PIDA AYUDA
A AIGUIEN QUE SI LO LEA
PARA QUE LE TRADUZCA LAS
MEDIDAS DE SEGURIDAD.
THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE THOROUGHLY UNDERSTOOD
1. Select an area for assembly that is clean and free of any
debris which might cause persons working on the
assembly to trip.
2. Do not lift heavy parts or assemblies. Use crane, jack,
tackle, fork trucks or other mechanical devices.
3. Preview the assembly instructions in your operator's
manual before proceeding further.
4. If the assembly instructions call for parts or assemblies to
be blocked up, use only blocking material that is in good
condition and is capable of handling the weight of the
assembly to be blocked. Also insure that the blocking
material is on a clean, dry surface.
5. Never put hands, or any part of body, under blocked up
assemblies if at all possible.
SPIKE-TOOTH HARROW
Safety Instructions
Tractor Preparation
Operating Instructions
CAUTION
BEFORE ATTEMPTING TO BEGIN ASSEMBLING THIS MACHINE
FLIP-OVER
Assembly & Mounting
Maintenance
Repair Parts
6. After completing assembly, thoroughly inspect the
machine to be sure that all nuts, bolts, hydraulic fittings
or any other fastened assemblies have been thoroughly
tightened.
7. Before operating the machine, thoroughly read the
operation section of your operator's manual.
8. Before operating, read the maintenance section of your
operator's manual to be sure that any parts requiring
lubrication, such as gearboxes, are full, to avoid any
possible damage.
9. Before operating equipment – If you have any
questions regarding the proper assembly or
operation, contact your dealer or representative.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Flip Over FOH-5 and is the answer not in the manual?

Questions and answers

Related Manuals for Worksaver Flip Over FOH-5

Summary of Contents for Worksaver Flip Over FOH-5

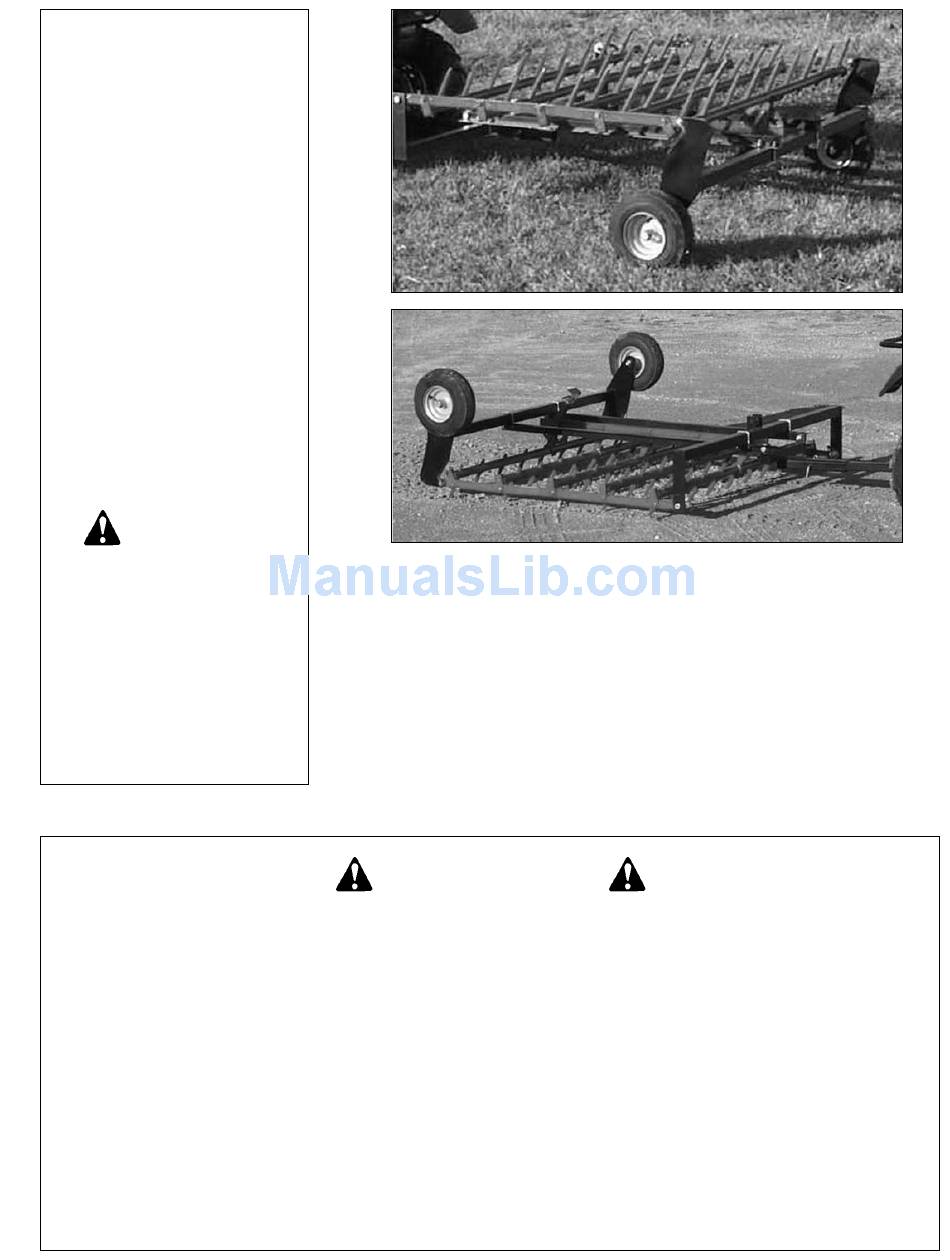

  • Page 1 OWNER’S / OPERATOR’S MANUAL MODEL NO. FOH-5 CAUTION For Safe Operation Read Rules And Instructions Carefully SINO LEEINGLES, PIDA AYUDA A AIGUIEN QUE SI LO LEA PARA QUE LE TRADUZCA LAS MEDIDAS DE SEGURIDAD. THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE THOROUGHLY UNDERSTOOD BEFORE ATTEMPTING TO BEGIN ASSEMBLING THIS MACHINE 1.

  • Page 2: Table Of Contents

    Like all mechanical products, it will require cleaning and upkeep. Use only genuine Worksaver service parts. Substitute parts will void the warranty and may not meet standards required for safe and satisfactory operation. Record the model and serial number of your Harrow here: Model:________________________________________ Serial Number:_______________________________ RETAIL CUSTOMER’S RESPONSIBILITY...

  • Page 3: Limited Warranty

    2. If the unit has been subjected to misapplication, abuse, misuse, negligence, fire or other accident. 3. If parts not made or supplied by Worksaver have been used in connection with the unit, if, in sole judge- ment of Worksaver such use affects its performance, stability, or reliability.

  • Page 4: Safety Information

    To the Owner/Operator/Dealer All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded opera- tor who recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this implement to be used with all its safety equipment properly attached to minimize the chance of accidents. Read the safety messages on the implement and shown in your manual.
  • Page 5 SAFETY INSTRUCTIONS EQUIPMENT SAFETY GUIDELINES Safety of the operator is one of the main concerns in designing and developing a new piece of equipment. Designers and manufacturers build in as many safety features as possible. However, every year many accidents occur which could have been avoided by a few seconds of thought and a more careful approach to handling equipment.
  • Page 6 SAFETY INFORMATION (continued) All equipment is potentially hazardous. There is no substitute for a cautious, safe-minded operator who recognizes potential hazards and follows reasonable safety practices. When the use of hand tools is required to perform any part of assembly, installation, adjustment, maintaining, repairing of the implement, be sure the tools used are designed and recommended by the tool manufacturer for that specific task.
  • Page 7 SAFETY INFORMATION (continued) When maneuvering close to buildings or passing through narrow areas, be sure to allow sufficient clearance for the implement and tractor or ATV. When removing, or adjusting equipment, be sure that your feet are never under the implement. Be careful to avoid catching the implement on stumps or other immovable objects.
  • Page 8 SAFETY INSTRUCTIONS (continued) Be certain the tractor or ATV is in neutral or park position before starting engine. Take all possible precautions when leaving unit unattended: Disengage PTO, set parking brake, stop engine and remove key from ignition. Park in level area. Pick up all rocks and other debris before operation.

  • Page 9: Safety Signs

    SAFETY SIGNS Keep children away from danger all day, every day. Please work, drive, play, and live each day with care and concern for your safety and that of your family and fellow citizens. OBEY ALL SAFETY WARNINGS!!
  • Page 10 TRACTOR / ATV REQUIREMENTS AND PREPARATION The model FOH-5 spike-tooth harrow is designed for 16 hp or larger garden tractors and ATV’s with an engine size of 250 cc or more. The harrow is easy to pull and maneuver. It can be turned in tight areas.
  • Page 11 INSTRUCTIONS FLIPPING THE HARROW FROM HARROWING TO TRANSPORT POSITION AND VISE VERSA Pull the harrow to a level location. Unhook the harrow from the tractor or ATV drawbar and move the tractor/ATV out of the way. (FIG. E) Install the two ”...

  • Page 12: Operating Instructions

    OPERATING INSTRUCTIONS OPERATION The safe operation of the implement is the respon- sibility of the operator. The operator should be familiar with the implement, tractor (or ATV) and all safety practices before starting operation. Review and follow all the safety rules in this manual and those of the tractor or ATV.

  • Page 13: Owner Service

    OWNER SERVICE The information in this section is written for operators who possess basic mechanical skills. For your protec- tion, read and follow all safety information in this manual. WARNING! Always stop the tractor or ATV, set brake, shut off engine, and remove key before attempting to service.
  • Page 14 FOH-5 PARTS DRAWING...

  • Page 15: Parts Lists

    FOH-5 PARTS LIST...

  • Page 16: Safety Precautions

    Please work, drive, play and live each day with care and concern for your safety and that of your family and fellow citizens. MAKE EVERY DAY A HOLIDAY FROM ACCIDENTS! WORKSAVER, INC. P.O. BOX 100 LITCHFIELD, IL 62056-0100 WEB: http:// www.worksaver.com (217) 324-5973 E-MAIL: sales@worksaver.com...
