Worksaver DCR-4 Owner's/Operator's Manual

3 pt. landscape rake
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OWNER'S /
OPERATOR'S
MANUAL
MODEL NO.'s
DCR-4
MCR-6
DCR-5
MCR-7
LRHD-6
LRHD-7
LRHD-8
CAUTION
For Safe Operation
Read Rules And
Instructions Carefully
SINO LEEINGLES, PIDA AYUDA
A AIGUIEN QUE SI LO LEA
PARA QUE LE TRADUZCA LAS
MEDIDAS DE SEGURIDAD.
THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE THOROUGHLY UNDERSTOOD
1. Select an area for assembly that is clean and free of any
debris which might cause persons working on the
assembly to trip.
2. Do not lift heavy parts or assemblies. Use crane, jack,
tackle, fork trucks or other mechanical devices.
3. Preview the assembly instructions in your operator's
manual before proceeding further.
4. If the assembly instructions call for parts or assemblies to
be blocked up, use only blocking material that is in good
condition and is capable of handling the weight of the
assembly to be blocked. Also insure that the blocking
material is on a clean, dry surface.
5. Never put hands, or any part of body, under blocked up
assemblies if at all possible.

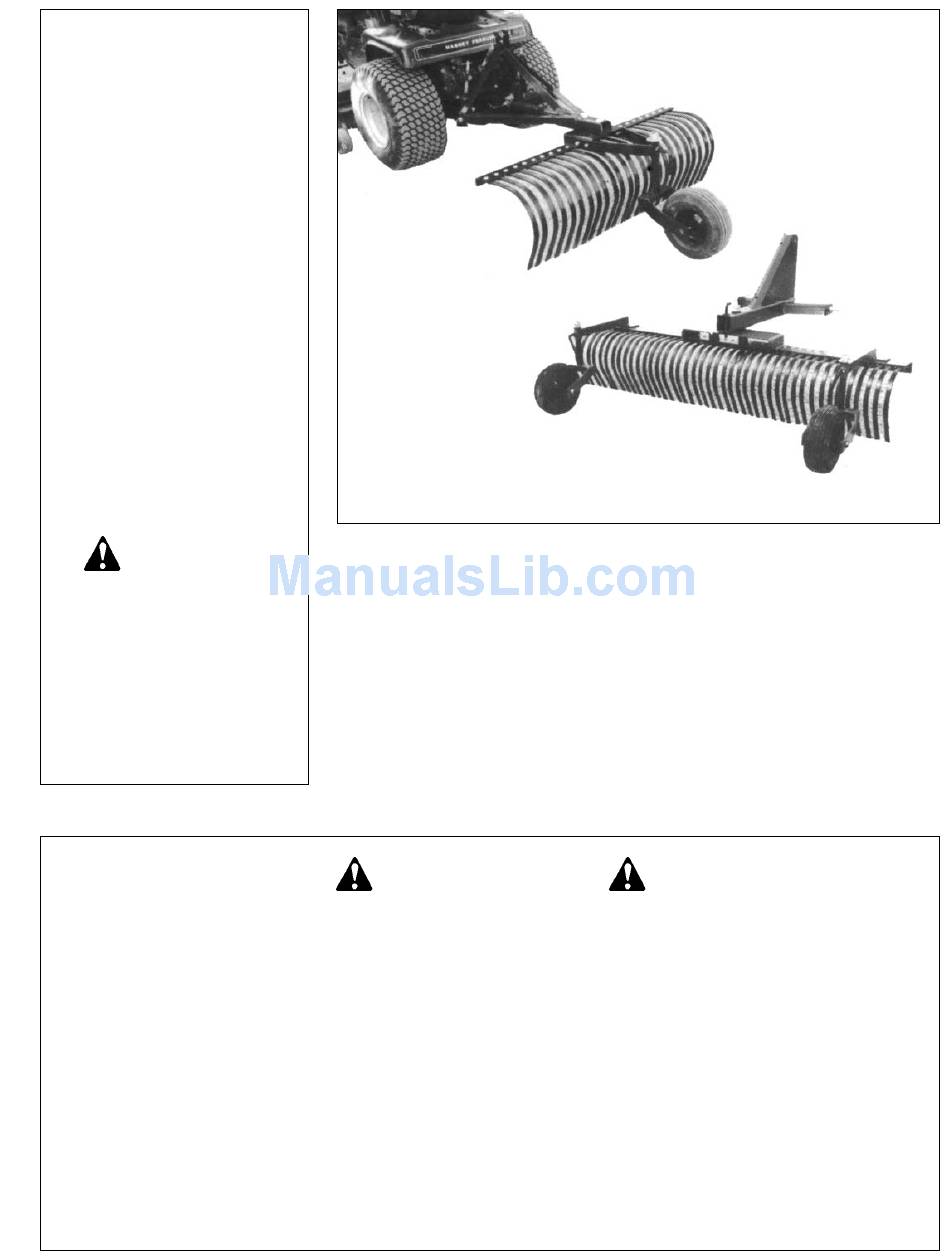

LRHD-7
(Rakes shown with optional gauge wheels)
3 PT. LANDSCAPE RAKE
Safety Instructions
Tractor Preparation
Operating Instructions
CAUTION
BEFORE ATTEMPTING TO BEGIN ASSEMBLING THIS MACHINE
Assembly & Mounting
Maintenance
Repair Parts
6. After completing assembly, thoroughly inspect the
machine to be sure that all nuts, bolts, hydraulic fittings
or any other fastened assemblies have been thoroughly
tightened.
7. Before operating the machine, thoroughly read the
operation section of your operator's manual.
8. Before operating, read the maintenance section of your
operator's manual to be sure that any parts requiring
lubrication, such as gearboxes, are full, to avoid any
possible damage.
9. Before operating equipment – If you have any
questions regarding the proper assembly or
operation, contact your dealer or representative.
DCR-4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DCR-4 and is the answer not in the manual?

Questions and answers

Related Manuals for Worksaver DCR-4

Summary of Contents for Worksaver DCR-4

  • Page 1 OWNER’S / OPERATOR’S MANUAL MODEL NO.’s DCR-4 MCR-6 DCR-5 MCR-7 LRHD-6 LRHD-7 LRHD-8 CAUTION For Safe Operation Read Rules And Instructions Carefully SINO LEEINGLES, PIDA AYUDA A AIGUIEN QUE SI LO LEA PARA QUE LE TRADUZCA LAS MEDIDAS DE SEGURIDAD.

  • Page 2: Table Of Contents

    Like all mechanical products, it will require cleaning and upkeep. Use only genuine Worksaver, Inc. service parts. Substitute parts will void the warranty and may not meet standards required for safe and satisfactory operation. Record the model and serial number of your Landscape...

  • Page 3: Warranty

    2. If the unit has been subjected to misapplication, abuse, misuse, negligence, fire or other accident. 3. If parts not made or supplied by Worksaver have been used in connection with the unit, if, in sole judge- ment of Worksaver such use affects its performance, stability, or reliability.

  • Page 4: Safety Information

    To the Owner/Operator/Dealer All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded opera- tor who recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this implement to be used with all its safety equipment properly attached to minimize the chance of accidents. Read the safety messages on the implement and shown in your manual.
  • Page 5 SAFETY INSTRUCTIONS (continued) All equipment is potentially hazardous. There is no substitute for a cautious, safe-minded operator who recognizes potential hazards and follows reasonable safety practices. Most accidents occur because of neglect or carelessness. Keep all helpers and bystanders fifty feet (50’) from an operating power unit and attached equipment.
  • Page 6 SAFETY INSTRUCTIONS (continued) Never allow children to operate or be around equipment. Use stabilizer bars, adjustable sway chains, or sway blocks on your tractor lift arms to keep the implement from swinging side to side. Adjust as tightly as practical for best performance. Keep alert and watch the front as well as the rear when working with the implement.

  • Page 7: Safety Signs

    SAFETY SIGNS Keep children away from danger all day, every day. Please work, drive, play, and live each day with care and concern for your safety and that of your family and fellow citizens. OBEY ALL SAFETY WARNINGS!!

  • Page 8: Preparation Instructions

    TRACTOR REQUIREMENTS AND PREPARATION —————————————————— The DCR, MCR, and LRHD Series Landscape Rakes will fit most Category I) tractors equipped with a standard 3 point hitch. DCR Series rakes will also fit Category 0 hitch tractors. NOTE: Some Category 0 tractors have very short lift arms or ”...
  • Page 9 INSTRUCTIONS ASSEMBLY (continued) —————————————————— FOR MODEL LRHD RAKES Place jack stands or suitable blocking under tinebar so center pivot bolt and 3 pt. mount can be installed. Place 3 pt. frame assembly on top of the tinebar and align 1 inch pivot hole with center hole on tine bar. Install 1 inch pivot bolt and flat washer.

  • Page 10: Operation

    OPERATION —————————————————— The operator is responsible for the safe operation of this equipment. The operator must be properly trained. Operators should be familiar with the equipment, the tractor, and all safety practices before starting operation. Read the safety rules and safety decals on page 3 through page 6.

  • Page 11: Owner Service

    OWNER SERVICE TRANSPORTING —————————————————— Pay particular close attention to the Safety Messages regarding transport. Avoid unnecessary injuries and equipment damage by exercising cautious, conscientious travel procedures. Attaching the landscape rake to the tractor increases the overall length of the working unit. Allow additional clearance for the landscape rake to swing when turning.

  • Page 12: Trouble-Shooting

    TROUBLE-SHOOTING GUIDE PROBLEM POSSIBLE CAUSE Rake will not pene- 1. Tinebar set too straight. trate soil. 2. Soil too hard. Rake teeth digging 1. Tinebar pitch excessive. in too much. 2. Soft ground. 3 Pt. hitch frame 1. Hitting hidden objects in backfill bent.

  • Page 13: Parts Drawings & Lists

    DCR LANDSCAPE RAKE PARTS LIST SGW-10 GAUGE WHEEL PARTS LIST (OPTIONAL)
  • Page 14 MCR LANDSCAPE RAKE PARTS LIST...
  • Page 15 LRHD LANDSCAPE RAKE PARTS LIST DGW-20 GAUGE WHEEL PARTS LIST (OPTIONAL)

  • Page 16: Safety Precautions

    ALWAYS GIVE THE FOLLOWING INFORMATION: 1. PART NUMBER 2. PART DESCRIPTION 3. MODEL NUMBER 4. NAME OF ITEM MAKE EVERY DAY A HOLIDAY FROM ACCIDENTS WORKSAVER, INC. P.O. BOX 100 LITCHFIELD, IL 62056-0100 WEB: http:// www.worksaver.com (217) 324-5973 E-MAIL: sales@worksaver.com...
