Worksaver PLR-48, PLR-60, PLR-72, PBX-42 Operator's Manual

Atv or garden tractor landscape rake box scraper

Hide thumbs Also See for PLR-48, PLR-60, PLR-72, PBX-42:

Operator's manual (16 pages)

page of 10

/ 10
Bookmarks

Quick Links

Download this manual See also: Operator's Manual

OWNER'S /

OPERATOR'S

MANUAL

MODEL NO.'s

PLR-48

PLR-72

PLR-60

PBX-42

CAUTION

For Safe Operation

Read Rules And

Instructions Carefully

SINO LEEINGLES, PIDA AYUDA

A AIGUIEN QUE SI LO LEA

PARA QUE LE TRADUZCA LAS

MEDIDAS DE SEGURIDAD.

STATEMENT

OF POLICY

It is the policy of Worksaver,

Inc. to improve its products

where it is possible and practical

so.

Worksaver,

reserves the right to make

changes or improvements in

design and construction at any

time, without incurring the obliga-

tion to make these changes on

previously manufactured units.

THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE THOROUGHLY UNDERSTOOD

BEFORE ATTEMPTING TO BEGIN ASSEMBLING THIS MACHINE

1. Select an area for assembly that is clean and free of any

debris which might cause persons working on the

assembly to trip.

2. Do not lift heavy parts or assemblies. Use crane, jack,

tackle, fork trucks or other mechanical devices.

3. Preview the assembly instructions in your operator's

manual before proceeding further.

4. If the assembly instructions call for parts or assemblies to

be blocked up, use only blocking material that is in good

condition and is capable of handling the weight of the

assembly to be blocked. Also insure that the blocking

material is on a clean, dry surface.

5. Never put hands, or any part of body, under blocked up

assemblies if at all possible.

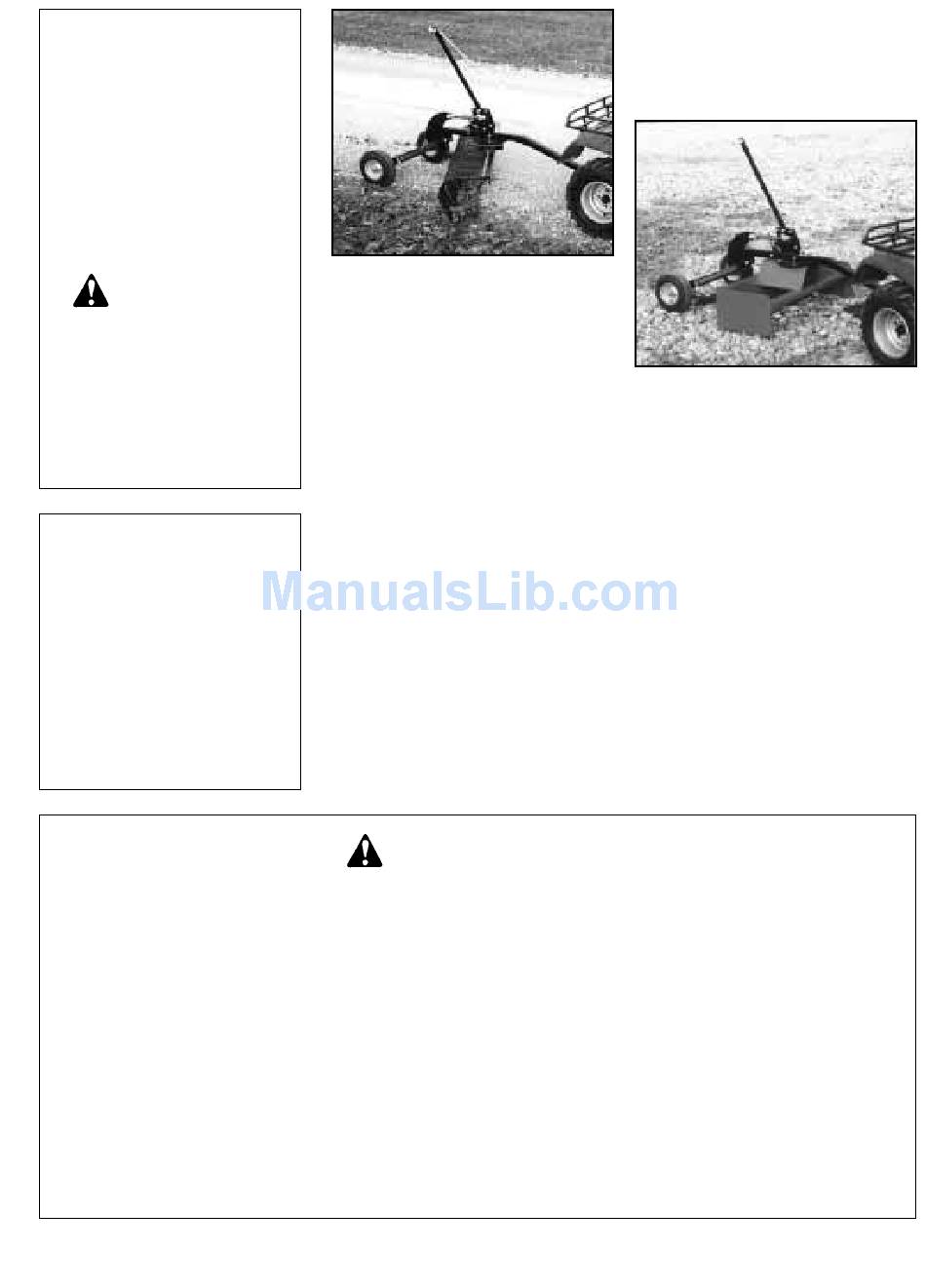

4 ft. Landscape Rake Shown

Inc.

Safety Instructions

Tractor Preparation

Operating Instructions

C A U T I O N

ATV or Garden Tractor

LANDSCAPE RAKE

BOX SCRAPER

6. After completing assembly, thoroughly inspect the

machine to be sure that all nuts, bolts, hydraulic fittings

or any other fastened assemblies have been thoroughly

tightened.

7. Before operating the machine, thoroughly read the

operation section of your operator's manual.

8. Before operating, read the maintenance section of your

operator's manual to be sure that any parts requiring

lubrication, such as gearboxes, are full, to avoid any

possible damage.

9. Before operating equipment – If you have any

questions regarding the proper assembly or

operation, contact your dealer or representative.

42" Box Scraper Shown

Assembly & Mounting

Maintenance

Repair Parts

Need help?

Do you have a question about the PLR-48, PLR-60, PLR-72, PBX-42 and is the answer not in the manual?

Questions and answers

Summary of Contents for Worksaver PLR-48, PLR-60, PLR-72, PBX-42

Page 1: Operating Instructions
A AIGUIEN QUE SI LO LEA PARA QUE LE TRADUZCA LAS MEDIDAS DE SEGURIDAD. STATEMENT OF POLICY It is the policy of Worksaver, Inc. to improve its products where it is possible and practical Worksaver, Inc. reserves the right to make...
Page 2 To the Owner/Operator/Dealer All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded opera- tor who recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this implement to be used with all its safety equipment properly attached to minimize the chance of accidents. Read the safety messages on the implement and shown in your manual.
Page 3 S A F E T Y I N F O R M ATION ( continued) All equipment is potentially hazardous. There is no substitute for a cautious, safe-minded operator who recognizes potential hazards and follows reasonable safety practices. When the use of hand tools is required to perform any part of assembly, installation, adjustment, maintaining, repairing, removal, or moving the implement, be sure the tools used are designed and recommended by the tool manufacturer for that specific task.
Page 4 S A F E T Y I N F O R M ATION ( continued) When maneuvering close to buildings or passing through narrow areas, be sure to allow sufficient clearance for the implement and tractor. Do not operate close to ditches or creeks. Slow down when operating over rough ground. Always be sure the implement is in the fully raised position when in transport.
Page 5 T R A C T O R R E Q U I R E M E N T S A N D P R E PA R AT I O N The PLR Series landscape rakes and PBX-42 box scraper are designed for small lawn/garden tractors and ATV units equipped with a rear pull type hitch.
Page 6 INSTRUCTIONS SAFETY TRAINING • Know your controls and how to stop tractor and engine quickly in an emergency. READ THIS MANUAL AND THE ONE PROVIDED WITH YOUR TRACTOR OR ATV. • To avoid accident or injury, do not allow anyone to operate this equipment without proper instructions.
Page 7 INSTRUCTIONS M A I N T E N A N C E Straighten or replace any tines which may have bent due to hitting buried or solid objects. Check the angle shift pin for excessive wear and replace if necessary. Repaint parts where paint is worn or scratched to prevent rust.
Page 9 P L R L A N D S C A P E R A K E A N D PBX-42 BOX SCRAPER PA RT S D R AW I N G...
Page 10: Safety Precautions
P U L L T Y P E L A N D S C A P E R A K E PULL TYPE BOX SCRAPER WORKSAVER LIMITED WARRANTY W orksaver warrants its implements, parts and accessories to be free from defects in materials and workmanship for a period of six (6) months from date of purchase.
