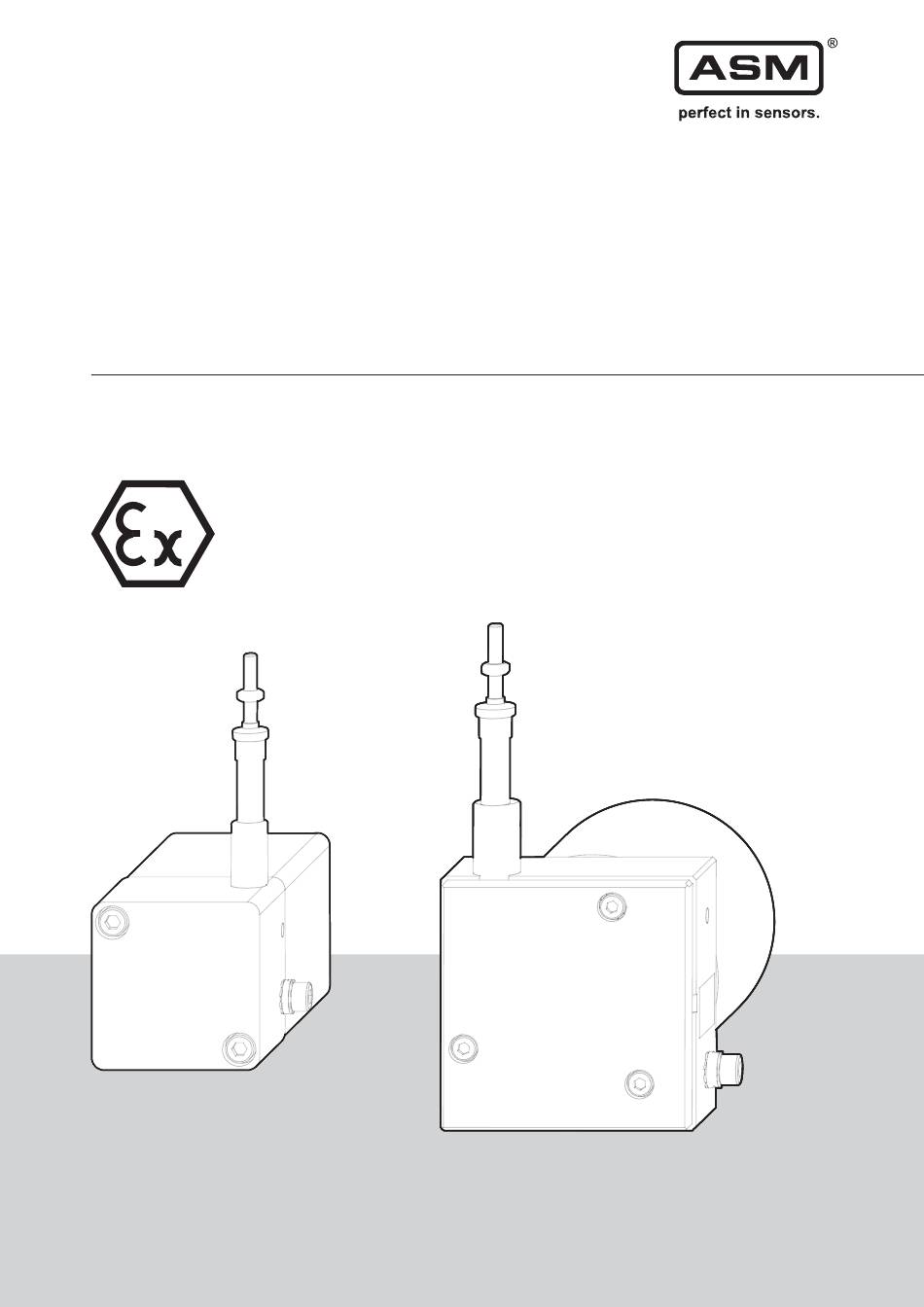

- Page 1 ® posiwire WS10EX, WS12EX Cable Extension Position Sensors, dust-ex proof Installation and operation manual Please read carefully before installation and operation!
- Page 2 © ASM Automation Sensorik Messtechnik GmbH, 2019 All rights reserved. Am Bleichbach 18 - 24 85452 Moosinning Germany...
-
Page 3: Table Of Contents
4.2 Deinstallation (dust-ex proof standard-compliant) ............... 18 4.3 Disposal ............................18 5 Output specification ....................19 5.1 Measurement signal and range....................19 5.2 Analog output ..........................20 5.3 Output information ........................24 6 EU Declaration of Conformity ..................27 Version 6.2.0 www.asm-sensor.com... -
Page 4: Safety Instructions
Disregarding the following instructions may result in malfunction, damage to property and personal injury and releases the manufacturer from product liability. Safety regulations • National safety regulations must be observed! Pos : 9 /########### Seitenumbr uc h ######## ########################### @ 0\mod_1353584168894_0.doc x @ 336 @ @ 1 Version 6.2.0 www.asm-sensor.com... -
Page 5: General Safety Instructions
Do not let the measuring cable and the cable fixing spring back uncontrolled! • Do not exceed the maximum cable extension range! • Do not bend the measuring cable! • Do not let the measuring cable be dragged on objects! Version 6.2.0 www.asm-sensor.com... -
Page 6: Dust-Ex Proof Marking
Equipment Protection Level (EPL): EPL „Dc“ complies with the categorie 3D Resists an impact with reduced impact energy of 4J, without X the sensor resists an impact of 7J impact energy Pos : 13 /########### Sei tenumbruch ################################### @ 0\mod_1353584168894_0.doc x @ 336 @ @ 1 Version 6.2.0 www.asm-sensor.com... -
Page 7: Intended Use
• • corrosive and aggressive media e.g. atmospheres containing chloride. Pos : 16 /########### Sei tenumbruch ################################### @ 0\mod_1353584168894_0.doc x @ 336 @ @ 1 Version 6.2.0 www.asm-sensor.com... -
Page 8: Transport And Storage
The kink protection prevents the cable fixing from buckling and damaging the cable. Remove in the direction of the cable. Shipment content • Sensor • Installation and operation manual Pos : 19 /########### Sei tenumbruch ################################### @ 0\mod_1353584168894_0.doc x @ 336 @ @ 1 Version 6.2.0 www.asm-sensor.com... -
Page 9: Installation And Initial Operation
This prevents liquids from entering through the cable outlet. • Screw the sensor onto a flat surface or provide a three-point mounting. This avoids distortion and damage to the sensor. • In harsh environments provide protection for the measuring cable. Version 6.2.0 www.asm-sensor.com... - Page 10 Required dimensions are listed in the data sheet. Mount the sensor on flat surface. Use flat washers and/or thread locker if necessary. The torques of the fixing screws depend on the material used (see p.13). Version 6.2.0 www.asm-sensor.com...
- Page 11 Cable clip with attachment head (accessory GK1: metal, GK2: plastic): fast cable attachment, easy to remove • Cable clip with magnetic clamp (accessory MAG1): with this device the sensor can be easily used at several measuring points with ferromagnetic surface. Version 6.2.0 www.asm-sensor.com...
- Page 12 For example, fit a mounting loop and put it around your wrist. Do not remove the mounting loop until after final installation. Pos : 22 /########### Sei tenumbruch ################################### @ 0\mod_1353584168894_0.doc x @ 336 @ @ 1 Version 6.2.0 www.asm-sensor.com...
- Page 13 The housings have been examined with the impact energy DIN EN 60079-1: • WS10EX at 4 Joule • WS12EX at 7 Joule Ambient temperature: -20°C to 40°C Maximum cable velocity: vmax = 2m/s Pos : 26 /########### Sei tenumbruch ################################### @ 0\mod_1353584168894_0.doc x @ 336 @ @ 1 Version 6.2.0 www.asm-sensor.com...
-
Page 14: Electrical Connection
With an excitation of 24 V DC and a cable resistance R = 500 Ω a maximum value of R = 100 Ω can be used (see from page 19) . Pos : 28 /########### Sei tenumbruch ################################### @ 0\mod_1353584168894_0.doc x @ 336 @ @ 1 Version 6.2.0 www.asm-sensor.com... - Page 15 A separate cord grip for cable strain relief is recommended Observe cable routing in case of splashing water, water condensation and humidity Pos : 31 /########### Sei tenumbruch ################################### @ 0\mod_1353584168894_0.doc x @ 336 @ @ 1 Version 6.2.0 www.asm-sensor.com...
-
Page 16: Operating Temperature
Pos : 33 /Bedienungs anl eitungen/Posi wire/Arbeitstemper atur_Ü bersic ht_WS_EX @ 7\mod_1535962092237_78.doc x @ 58495 @ 2 @ 1 3.3 Operating temperature posiwire WS10EX -20 … +40°C ® posiwire ® WS12EX -20 … +40°C Pos : 34 /########### Sei tenumbruch ################################### @ 0\mod_1353584168894_0.doc x @ 336 @ @ 1 Version 6.2.0 www.asm-sensor.com... -
Page 17: Maintenance And Disposal
Mounting elements Tighten mounting parts with recommended torque, if applicable use bolt adhesive Cable Damaged cable, spliced or bended cable: send sensor to ASM for repair Opening the sensor by the customer will void the protection type: • Do not open the sensor. -
Page 18: Deinstallation (Dust-Ex Proof Standard-Compliant)
Pos : 40 /Bedienungs anl eitungen/Posi wire/WS_Ents orgung @ 6\mod_1507649730932_78.doc x @ 48485 @ 2 @ 1 4.3 Disposal Disposal according to applicable government regulations. Pos : 41 /Steuermodul e/########### Seitenumbr uch ################################### @ 1\mod_1401110037783_0.doc x @ 9678 @ @ 1 Version 6.2.0 www.asm-sensor.com... -
Page 19: Output Specification
Measuring range corresponds to the electrical measuring range (e.g. 4...20 mA). 100% Position 4 mA 8.8 mA 20 mA Measurement value Pos : 44 /Steuermodul e/########### Seitenumbr uch ################################### @ 1\mod_1401110037783_0.doc x @ 9678 @ @ 1 Version 6.2.0 www.asm-sensor.com... -
Page 20: Analog Output
The metal wiper of the potentiometer must be protected against current load • Electrical current flow impact on the wiper causes linearity errors and shortens the lifetime of the potentiometer. Additional information: https://www.asm-sensor.com/en/downloads.html?file=files/asmTheme/pdf/ ws_poti_technote_en.pdf Signal wiring Output signals Cable color... - Page 21 Signal + green Signal GND* yellow Not connected grey Not connected pink Not connected blue Not connected *: internally connected Pos : 49 /Steuermodul e/########### Seitenumbr uch ################################### @ 1\mod_1401110037783_0.doc x @ 9678 @ @ 1 Version 6.2.0 www.asm-sensor.com...
- Page 22 Signal - brown Not connected green Not connected yellow Not connected grey Not connected pink Not connected blue Not connected Pos : 51 /Steuermodul e/########### Seitenumbr uch ################################### @ 1\mod_1401110037783_0.doc x @ 9678 @ @ 1 Version 6.2.0 www.asm-sensor.com...
- Page 23 Excitation GND brown Signal + green Not connected yellow Not connected grey Not connected pink Not connected blue Not connected Pos : 53 /Steuermodul e/########### Seitenumbr uch ################################### @ 1\mod_1401110037783_0.doc x @ 9678 @ @ 1 Version 6.2.0 www.asm-sensor.com...
-
Page 24: Output Information
The metal wiper of the potentiometer must be protected against current load! Additional information: https://www.asm-sensor.com/en/downloads.html?file=files/asmTheme/pdf/ ws_poti_technote_en.pdf The output signal is the ratiometric voltage of a potentiometer. The potentiometer is supplied by a reference voltage source. The ratio of the output signal to the reference voltage is proportional to the measuring cable extension. - Page 25 For analog signal processing the voltage output is the proven best choice, e.g. for Waveform Analyzers, Data Loggers and for analog and digital Oscilloscopes. ASM´s 0...10 V output supports a wide range of excitation voltages and is well protected against electromagnetic interference.
- Page 26 R and is, within limits, independent of the cable resistance (impedance). Suggested output circuit Pos : 61 /########### Sei tenumbruch ################################### @ 0\mod_1353584168894_0.doc x @ 336 @ @ 1 Version 6.2.0 www.asm-sensor.com...
-
Page 27: Eu Declaration Of Conformity
Cable Extension Position Sensors, dust-ex proof Pos : 62 /Bedienungs anl eitungen/Posi wire/D OC_WSEX @ 8\mod_1564998065884_78.doc x @ 66625 @ 1 @ 1 6 EU Declaration of Conformity ASM Automation Sensorik Messtechnik GmbH Am Bleichbach 18-24 85452 Moosinning Germany declare under our sole responsibility that the product ®... - Page 28 Tel. +44 845 1222-123 Tel. +49 8123 986-0 Fax +1 630 832-3204 Fax +44 845 1222-124 Fax +49 8123 986-500 info@asmsensors.com info@asm-sensor.com info@asm-sensor.com © ASM Automation Sensorik Messtechnik GmbH, 2019 All rights reserved. Subject to changes without notice. See protection note DIN34.
