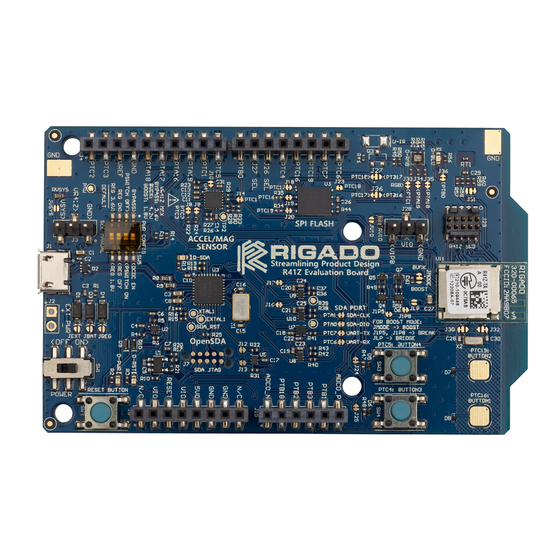

Quick start R41Z evaluation
For R41Z module
Power mode
selection switch
OpenSDA debug
USB connector
OpenSDA debug
interface
Power switch
Reset button
UBX-19042404 - R01
J4
J6
J11
RGB and blue
user LEDs
J15
External debug
input connector
R41Z
4 user buttons
module
Copyright © 2019, u-blox AG
Advertisement
Related Manuals for u-blox R41Z evaluation
Summary of Contents for u-blox R41Z evaluation
- Page 1 Quick start R41Z evaluation For R41Z module RGB and blue External debug user LEDs input connector Power mode selection switch OpenSDA debug USB connector OpenSDA debug interface Power switch R41Z Reset button 4 user buttons module UBX-19042404 - R01 Copyright © 2019, u-blox AG...
- Page 2 4. Download and install the NXP Semi- conductors IoT Toolbox mobile app. More information Kit includes For more information regarding the • R41Z evaluation board R41Z evaluation kits, contact your • Micro-USB cable nearest u-blox support: www.u-blox.com/ contact-technical-support.html UBX-19042404 - R01...
