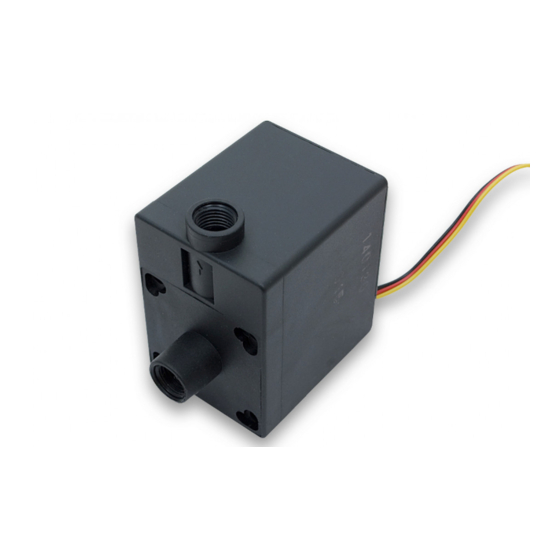

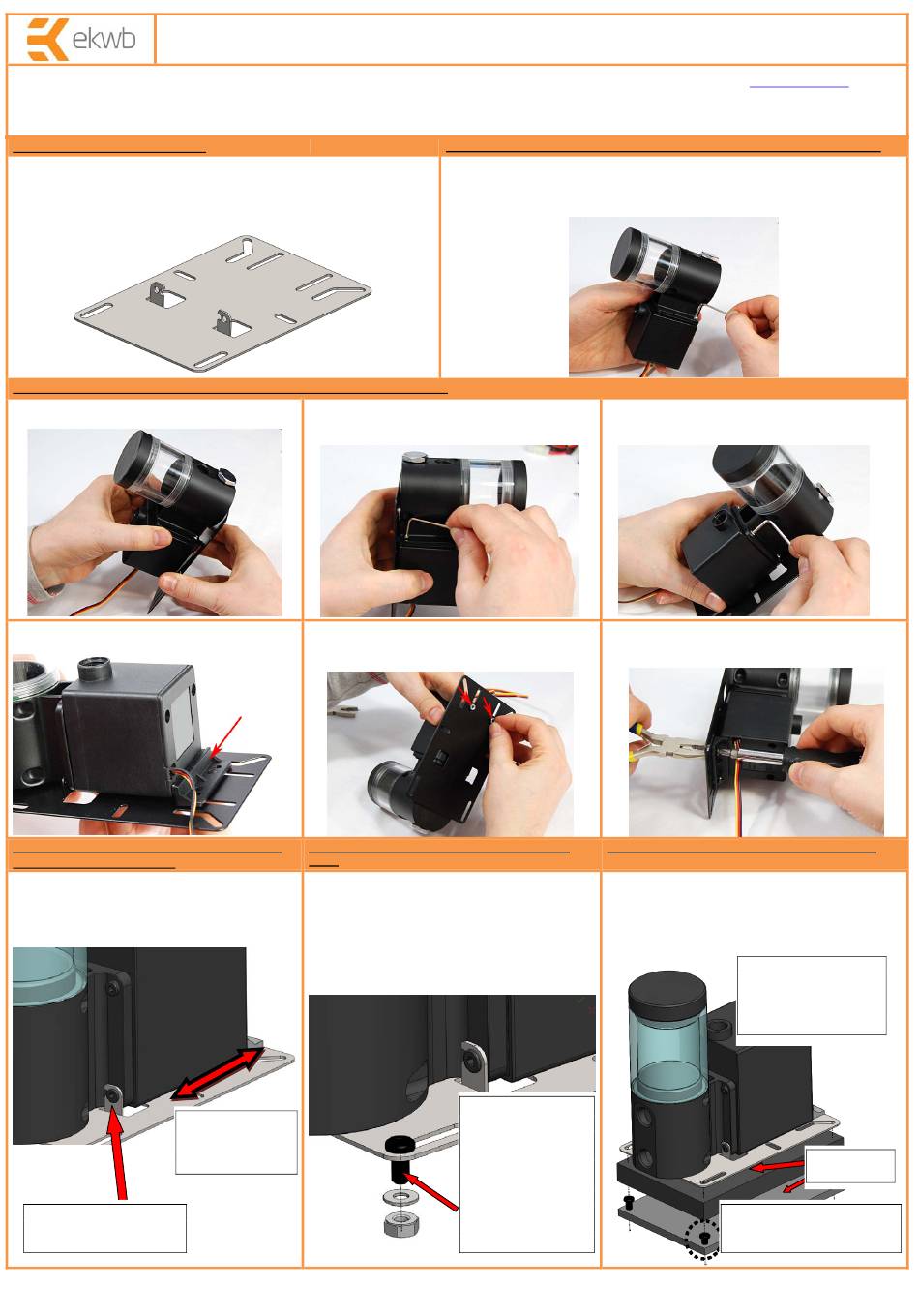

ekwb EK-DCP Installation And Mounting Manual

This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability
whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at
Before installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box or our website.
The barb hose fittings require only a small amount of force to screw them in; otherwise the high flow fittings might break. These fittings do not need to be tightened with much force because the
liquid seal is made using o-rings.
Users must by all means also consider instructions that are being made for proper use of pump provided by pump manufacturer.
STEP 1: GENERAL INFORMATION
EKWB recommends pump mounting plate in order to guarantee stabile and
aesthetic positioning of your pump in PC case or any other surface by your
choice. Plate has various holes for screw positioning. Please note that plate
is (so far) only compatible with EK-DCP 2.2 or EK-DCP 4.0 pumps. For any
other compatibility please contact EKWB support.
STEP 2: ATTACHING MOUNTING PLATE TO EK-RESERVOIR COMBO DCP 2.2
Cont.1: Install the Pump mounting plate so it sticks
on to the one mounting screw.
Cont.4: Install mounting bracket that comes with
your pump.
STEP 3: ATTACHING MOUNTING PLATE TO EK-
RESERVOIR COMBO DCP 4.0
Same mounting procedure goes for EK-reservoir
combo DCP 4.0. Only difference is in using
mounting holes on bracket and adjustment of
bracket.
Please adjust
bracket position
acc. to step 2
(cont. 4).
For EK-DCP 4.0 please use
holes that are on far end
of bracket.
All disclosures, notices and warranty conditions are being written on the back of the box.
Installation and mounting manual for EK-DCP mounting plate KIT
Cont.2: Align the mounting plate with opposite
screw hole and screw in second mounting screw.
Cont.5: Use M3×6mm screws and M3 nut to attach
the mounting bracket.
STEP 4: ATTACHING MOUNTING PLATE TO PC
CASE
Please attach mounting plate to even surface in
order to secure positioning. Below is a sample
picture of mounting screws in use. (
recommends using antivibration sponge that comes padded
between PC case and mounting plate. Due to vibrations caused
by operating pump a mild noise can occur, which can be
efficiently diminished by using EKWB sponge (next step shows
you how to install it).)
STEP 2: ATTACHING MOUNTING PLATE TO EK-RESERVOIR COMBO DCP 2.2
Install only one mounting screw and screw it only for few turns with allen key.
How to install reservoir on pump please refer to instruction included with EK-
Reservoir combo DCP 2.2.
Cont.3: Tighten all 4 screws equally using gentle
force.
Cont.6: Use pliers and screwdriver to screw the M3
screws.
STEP 6 (optional): PUTTING ON EKWB SPONGE
EKWB sponges are highly adhesive on one side, so
be careful when placing them as they might get
thorn apart when detaching them. Below is a way
EKWB strongly
that EKWB finds most suitable. You can do it your
way.
PC case comes
between mounting
plate and washer.
You might have to
predrill holes in your
PC case in order to
provide mounting
holes (depends on
type of PC case you
have in possesion).
www.ekwaterblocks.com
PC case comes between
lower sponge and
washer. Please make
sure you use nut to
secure position.
Align mounting holes and
pierce through lower sponge
with screws.
th
Released on 4
for updates.
These 2 sides
are adhesive!
of March, 2010
