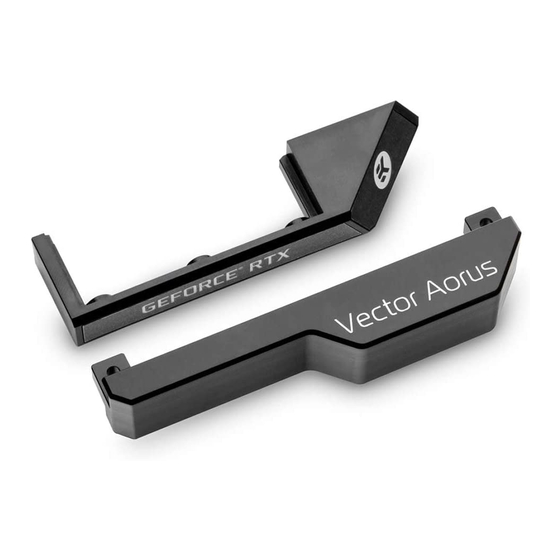

EK-Quantum
Vector D-RGB Upgrade Kit
INSTALLATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EK-Quantum Vector D-RGB Upgrade Kit and is the answer not in the manual?

Questions and answers

Related Manuals for ekwb EK-Quantum Vector D-RGB Upgrade Kit

Summary of Contents for ekwb EK-Quantum Vector D-RGB Upgrade Kit

  • Page 1 EK-Quantum Vector D-RGB Upgrade Kit INSTALLATION MANUAL...
  • Page 2 This product is intended for installation by expert users only. Please consult with a qualified technician. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability whatsoever, expressed or implied, for the use of these products or their installation.

  • Page 3: Table Of Contents

    TABLE OF CONTENT DISCONNECT THE LEDs REPLACE THE STICKOUT ATTACHING THE NEW STICKOUT AND D-RGB LED PLEXI VERSION ACETAL VERSION ATTACHING THE D-RGB TERMINAL COVER IMPORTANT INFORMATION CONNECTING THE D-RGB LED STRIP SUPPORT AND SERVICE SOCIAL MEDIA - 3 -...

  • Page 4: Disconnect The Leds

    DISCONNECT THE LEDs First, disconnect the cable between the Terminal Cover and Stickout. After that, remove the Terminal Cover from the FC Terminal. REPLACE THE STICKOUT Remove the Stickout from the water block and store the screws for later use. Stickout Screws If you have the Acetal version of the water block, do not forget to remove the RGB LED from the Acetal part.

  • Page 5: Attaching The New Stickout And D-Rgb Led

    ATTACHING THE NEW STICKOUT AND D-RGB LED PLEXI VERSION Stickout Take the Stickout and D-RGB LED from the box. Remove the protective foil from D-RGB LED and attach the LED to the Stickout. After this, use the stored screws to secure the Stickout to the Plexi part. D-RGB LED ACETAL VERSION D-RGB LED...

  • Page 6: Attaching The D-Rgb Terminal Cover

    ATTACHING THE D-RGB TERMINAL COVER Take the pre-assembled D-RGB Terminal Cover from the box and attach it to the FC Terminal. IMPORTANT INFORMATION Do not forget to connect the D-RGB LED cable of the Stickout to the cable of the Terminal Cover. In case you have 2 (two) Stickouts: First, connect the Stickout cables and then you can connect them to the Terminal Cover cable!

  • Page 7: Connecting The D-Rgb Led Strip

    CONNECTING THE D-RGB LED STRIP Plug the 3-pin connector from the water block’s D-RGB LED light in the D-RGB HEADER on the motherboard. The LED will work if the pin layout on the header is as follows: +5V, Digital. Please ensure that the arrow indicated on the connector is plugged into the +5V line as indicated on your motherboard.

  • Page 8: Support And Service

    SUPPORT AND SERVICE For assistance please contact: http://support.ekwb.com/ EKWB d.o.o. Pod lipami 18 1218 Komenda Slovenia - EU SOCIAL MEDIA EKWaterBlocks @EKWaterBlocks ekwaterblocks EKWBofficial ekwaterblocks...
