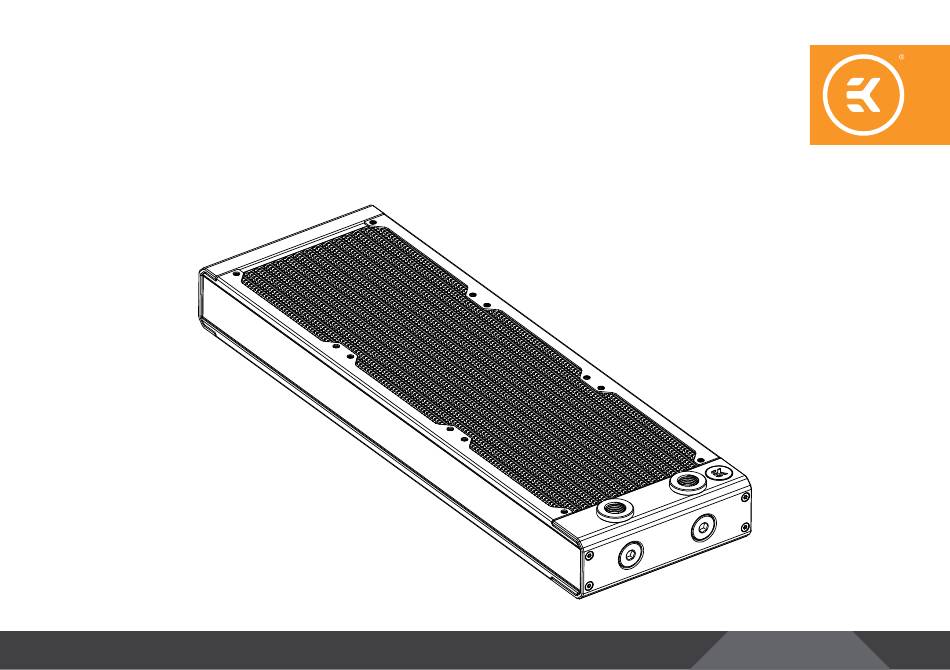

- Page 1 EK-Quantum Surface Radiator Setup Configurations RADIATOR USER GUIDE...
- Page 2 Please note the installation of the product is intended to be undertaken by an adequately trained and experienced person. You are installing the product at your own risk. If you are not properly trained or experienced or feel unsure about the installation procedure, please refrain from installing the product yourself and contact our tech support for assistance.
-
Page 3: Table Of Contents
TABLE OF CONTENTS EK-QUANTUM SURFACE RADIATORS EXPLODED VIEW OF THE REMOVABLE COMPONENTS FOR S, P AND X SERIES EK-QUANTUM SURFACE S SERIES EK-QUANTUM SURFACE P SERIES EK-QUANTUM SURFACE X SERIES SUPPORT AND SERVICE SOCIAL MEDIA - 3 -... -
Page 4: Ek-Quantum Surface Radiators
OUTLET OPTIONS INLET OPTIONS SETUP 1 EK-Quantum Surface P360M SETUP 2 Picture on the left shows the second flow direction setup of the EK- Quantum Surface P360M Radiator which is a Multiport Radiator. On the non-multiport radiator you can choose only one inlet and one outlet port. - Page 5 EK recommends using the same number of inlets and outlets for the most optimal performance! It is mandatory to use the extenders on any inlet and outlet position! If transferred from the stock position of the radiator to another, check if the extenders are tightened to avoid leakage! The same port setup applies for all EK-Quantum Surface radiator variants!
-
Page 6: Exploded View Of The Removable Components For S, P And X Series
EXPLODED VIEW OF THE REMOVABLE COMPONENTS FOR S, P AND X SERIES EK-QUANTUM SURFACE S SERIES 2x QUANTUM SURFACE END TANK SHROUD (ALUMINIUM) 2x QUANTUM SURFACE SIDE PLATE (STAINLES STEEL) 2x QUANTUM SURFACE EXTENDER 8x TORX SCREW M3 x 6 mm QUANTUM SURFACE TANK For reference on picture above: EK-Quantum Surface S240 - 6 -... -
Page 7: Ek-Quantum Surface P Series
2x QUANTUM SURFACE END TANK SHROUD (ALUMINIUM) 2x QUANTUM SURFACE SIDE PLATE (STAINLES STEEL) 2x QUANTUM SURFACE EXTENDER 8x TORX SCREW M3 x 6 mm 3x QUANTUM SURFACE PLUG (MULTIPORT VERSION) QUANTUM SURFACE TANK For reference on picture above: EK-Quantum Surface P360M - 7 -... -
Page 8: Ek-Quantum Surface X Series
EK-QUANTUM SURFACE X SERIES 2x QUANTUM SURFACE END TANK SHROUD (ALUMINIUM) 2x QUANTUM SURFACE SIDE PLATE (STAINLES STEEL) 2x QUANTUM SURFACE EXTENDER 8x TORX SCREW M3 x 6 mm 3x QUANTUM SURFACE PLUG (MULTIPORT VERSION) QUANTUM SURFACE TANK For reference on picture above: EK-Quantum Surface X420M - 8 -... -
Page 9: Support And Service
SUPPORT AND SERVICE In case you need assistance, please contact: https://www.ekwb.com/customer-support/ EKWB d.o.o. Pod lipami 18 1218 Komenda Slovenia - EU SOCIAL MEDIA EKWaterBlocks @EKWaterBlocks ekwaterblocks EKWBofficial ekwaterblocks...
