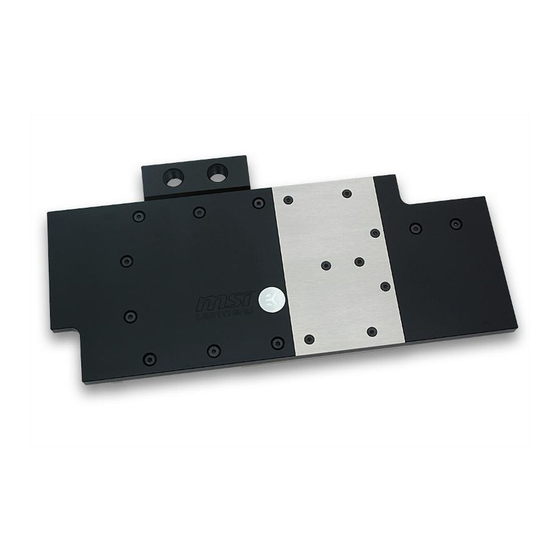

ekwb EK-FC R9-290X Matrix Series Installation And Mounting Manual

This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability
whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at
installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.
Before you start using this product please follow these basic guidelines:
1. Please carefully read the manual before through before beginning with the installation process!
2. Please remove your motherboard from the computer to assure safest mounting process in order to prevent any possible damages to your CPU and/or motherboard's circuit board (PCB).
3. The EK High Flow and EK-PSC type fittings require only a small amount of force to screw them firmly in place since the liquid seal is ensured by the rubber O-ring gaskets.
4. The use of corrosion inhibiting coolants is always recommended for any liquid cooling system.
STEP 1: GENERAL INFORMATION.
series graphics card.
STEP 2 cont.: PREPARING YOUR GRAPHIC CARD
1 cont... REMOVING STOCK COOLER.
should be removed. There are up to 13 screws on the back of the graphics card. Depending on the
manufacturer a Torx T6 head screwdriver might be needed to complete this step.
3. APPLYING THERMAL COMPOUND.
remains (by using non–abrasive cloth or
thermal compound until the components and circuit board
are completely clean. Apply thermal compound: lightly coat
AMD
GPU chip with enclosed EK-TIM Ectotherm thermal
grease. EKWB recommends to apply thermal grease in cross
form for best performance (see sample picture).
STEP 3: INSTALLING THE WATER BLOCK
PLACING THERMAL PADS ON PCB.
enough pads to cover all surfaces that need to be covered to make block fully functional). EKWB recommends using small drops of electrically non-conductive (for
example: EK-TIM Ectotherm, Arctic Cooling MX-2 ™, MX-4 ™ or GELID GC-Extreme™) thermal grease on each phase regulator (that is being covered with thermal pad)
in order to even further improve the thermal performance of the EK-FC R9-290X Matrix block.
All disclosures, notices and warranty conditions are being written on the EKWB website. Please read terms of use.

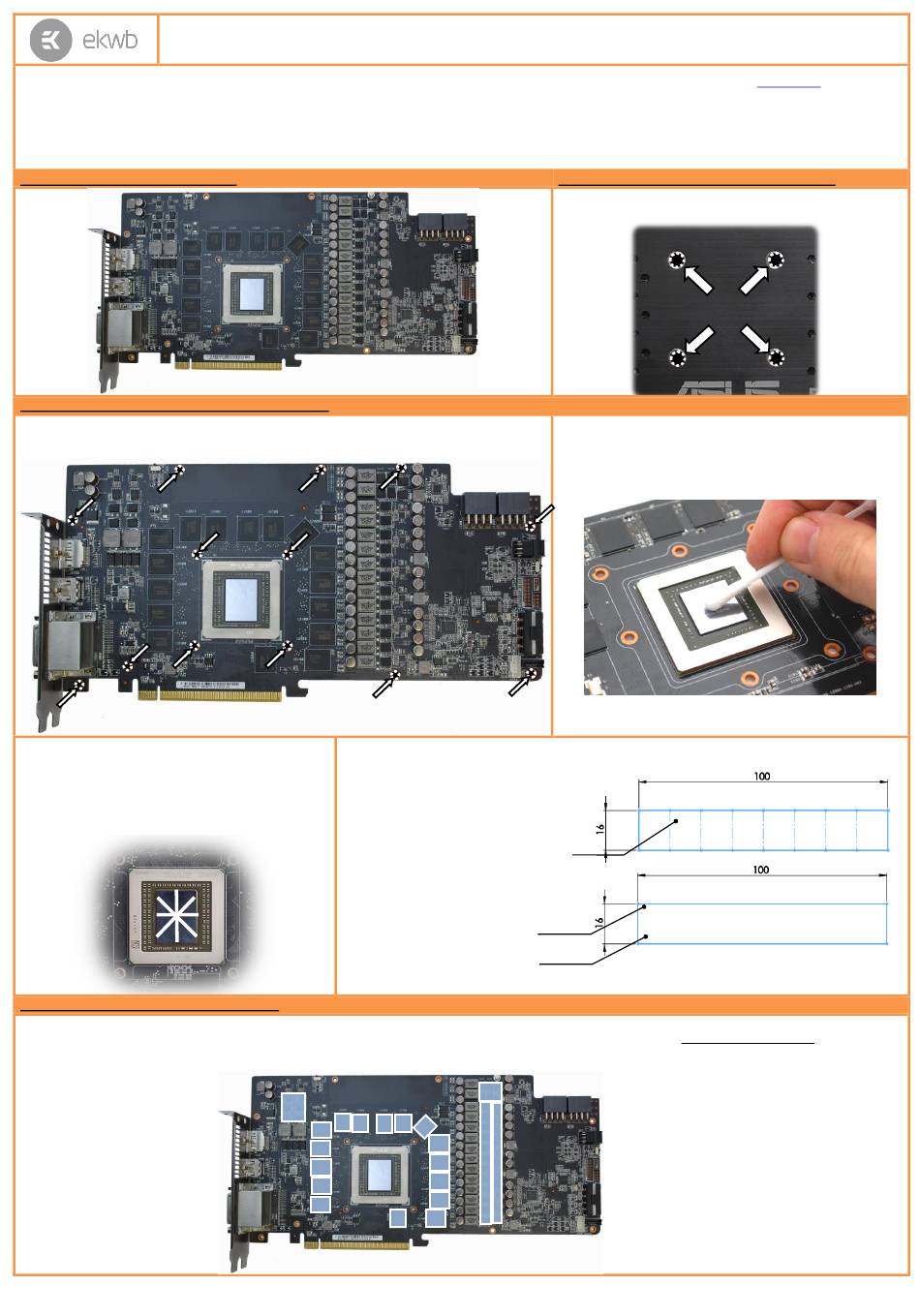

Installation and mounting manual for EK-FC R9-290X Matrix water
Sample picture of ASUS Radeon R9-290X Matrix graphics card
Remove all encircled screws. All heat sink assembly screws
4. CUTTING THERMAL PADS.
Wipe off the
q-tip ) of the original Others have to be cut to smaller chunks in
order to cover all the VRM components such
as MOSFETs and drivers. PLEASE REMOVE
THE PROTECTIVE FOIL FROM BOTH SIDES OF
THE THERMAL PADS PRIOR TO
INSTALLATION.
Replacement thermal pads:
Thermal Pad D – 0.5mm (RAM 16x),
Thermal Pad A – 1.0 mm (100x16mm)
Thermal Pad A – 0.5 mm (100x16mm)
Place thermal pads on chips so that numbers on chips match size of thermal pads. EKWB made sure users have more than
2
1 1
1
1
1
2
1
1
block
Your block comes with thermal pads, some of which are already pre-cut.
1: Thermal pad D – 0.5mm
(for memory IC):
2: Thermal pad A – 1.0mm
(for VDD VRM):
3: Thermal pad A – 0.5mm
(for VDD VRM):
3
1
1
1
1
3 2
3
1
1
1
1 1
STEP 2: PREPARING YOUR GRAPHIC CARD.
1. REMOVING STOCK COOLER: Remove four (4) encircled screws
on the back of the PCB:
2. CLEANING THE PCB.
Carefully detach the original stock cooler
after removing all screws securing it to the board. Wipe off the
remains (by using non–abrasive cloth or
photo) of the original thermal compound until the components and
circuit board are completely clean. EKWB recommends the use of
denatured alcohol for removing TIM leftovers.
1 1 1
Released on 2
www.ekwb.com for updates. Before
qtip
, as shown on sample
1
1 1 1 1
2,3
nd
of April 2014. Revision 1.0
