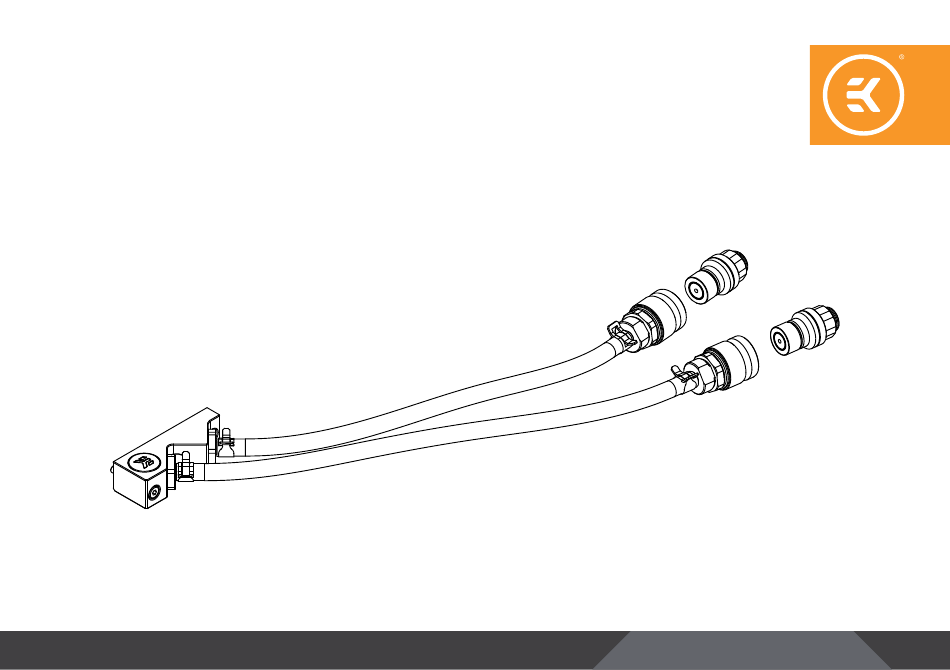

- Page 1 EK-Pro GPU Quick Disconnect Kit GPU WATER BLOCK INSTALLATION MANUAL...
- Page 2 The following instructions are subject to change without notice. Please visit our website at www.ekwb.com for updates. Before the installation of this product, please read important notice, disclosure, and warranty conditions printed on the back of the box.
-
Page 3: Table Of Contents
TABLE OF CONTENTS PREPARING THE WATER BLOCK REMOVING THE TERMINAL MOUNTING THE NEW TERMINAL MOUNTING THE BARB FITTINGS MOUNTING THE ZMT TUBE MEASURING TUBES SUPPORT AND SERVICE SOCIAL MEDIA - 3 -... -
Page 4: Preparing The Water Block
PREPARING THE WATER BLOCK STEP 1 REMOVING THE TERMINAL Remove all encircled screws using the 2.5mm Allen key and clean the mounting surface of the water block with a nonabrasive cloth. EK recommends you use a dry cloth only. STEP 1 STEP 2 MOUNTING THE NEW TERMINAL After you have cleaned the sealing surface, assemble the terminal,... -
Page 5: Mounting The Barb Fittings
STEP 3 MOUNTING THE BARB FITTINGS Once the terminal is in the position and adequately screwed-in, screw the barb fittings into the G1/4 threaded holes. For tightening, use a fork wrench 18 with torque adjustment set to 0.8 Nm. STEP 3 STEP 4 MOUNTING THE ZMT TUBE For proper installation of ZMT tubes and clamps, EK recommends... -
Page 6: Measuring Tubes

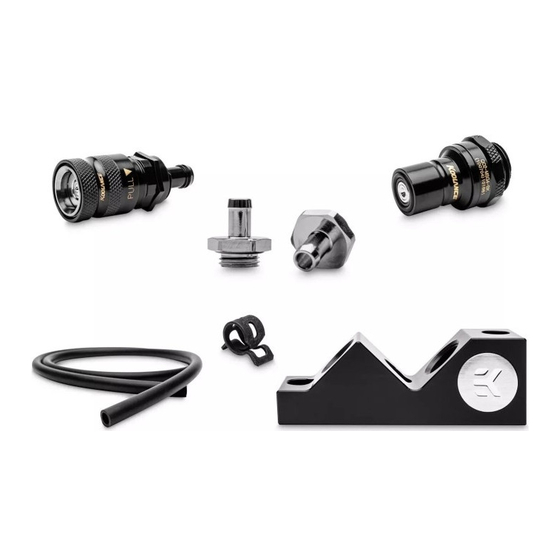

Once the ZMT tubes and clamps are mounted, make sure they are positioned correctly (as shown in the picture). STEP 5 CORRECT MEASURING TUBES When measuring the tube length, make sure to avoid any sharp transitions of the tube to the barb fittings. Take a look at the illustration for better understanding. - Page 7 BOX CONTENTS Check the box contents carefully. The O-rings might already be installed inside the terminal. TOP Acetal - FC O-Ring OR 15x1 M4x10 DIN7984 M4x28 DIN7984 QD2-MSG4 - Male QD2-FS06-P - Terminal M4 Pre- EPDM50 2 pcs Screw 2 pcs Screw 1pcs QDC 2 pcs Female QDC 2 pcs...
-
Page 8: Support And Service
SUPPORT AND SERVICE In case you need assistance, please contact: http://support.ekwb.com/ EKWB d.o.o. Pod lipami 18 1218 Komenda Slovenia - EU SOCIAL MEDIA EKWaterBlocks @EKWaterBlocks ekwaterblocks EKWBofficial ekwaterblocks...
