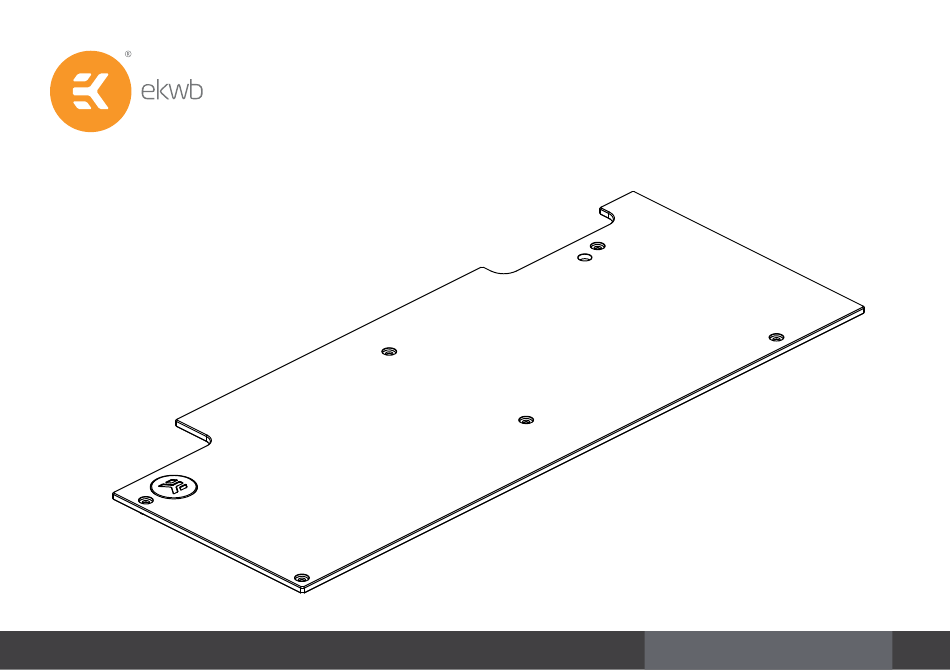

- Page 1 EK-FC Strix RTX 2080 Ti Backplate Classic BACKPLATE INSTALLATION MANUAL...
- Page 2 The following instructions are subject to change without notice. Please visit our web site at www.ekwb.com for updates. Before installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.
- Page 3 TABLE OF CONTENT GENERAL INFORMATION PREPARING YOUR GRAPHICS CARD ATTACHING EK-FC Strix RTX 2080 Ti Backplate Classic TO THE GRAPHICS CARD REQUIRED TOOLS IMPORTANT DISCLOSURES SUPPORT AND SERVICE SOCIAL MEDIA - 3 -...
-
Page 4: General Information
PREPARING YOUR GRAPHICS CARD STEP 1 EK-FC Strix RTX 2080 Ti Backplate Classic is very easy to install. First install EK–FC STRIX RTX 2080 TI water block according to its installation manual. If you have it already installed, please check the picture below to see which mounting screws are to be left in their position and which are to be removed. -
Page 5: Required Tools
ATTACHING EK-FC Strix RTX 2080 Ti Backplate Classic TO THE GRAPHICS CARD STEP 1 Take enclosed mounting screws and install them as shown on picture below. Use six (6) M2.5x8 AX1 screws, and tighten them using Philips head screwdriver. M2.5x8 AX1 HINT: Do not tighten screws until they are all positioned in their mounting holes. - Page 6 Any other RMA issues can be reported to EK Support at will rupture the top of the housing and render the block unusable www.ekwb.com/support for further analysis. (and will void your warranty).While all efforts have been made to provide the most comprehensive tutorial possible, EK Water Blocks...
-
Page 7: Support And Service
SUPPORT AND SERVICE For assistance please contact: http://support.ekwb.com/ EKWB d.o.o. Pod lipami 18 1218 Komenda Slovenia - EU SOCIAL MEDIA EKWaterBlocks @EKWaterBlocks ekwaterblocks EKWBofficial ekwaterblocks...
