ARD_MEGA2560R3
Arduino Mega 2560 compatible microcontroller, not an original Arduino
1. GENERAL INFORMATION & SAFETY INSTRUCTIONS
Dear customer,

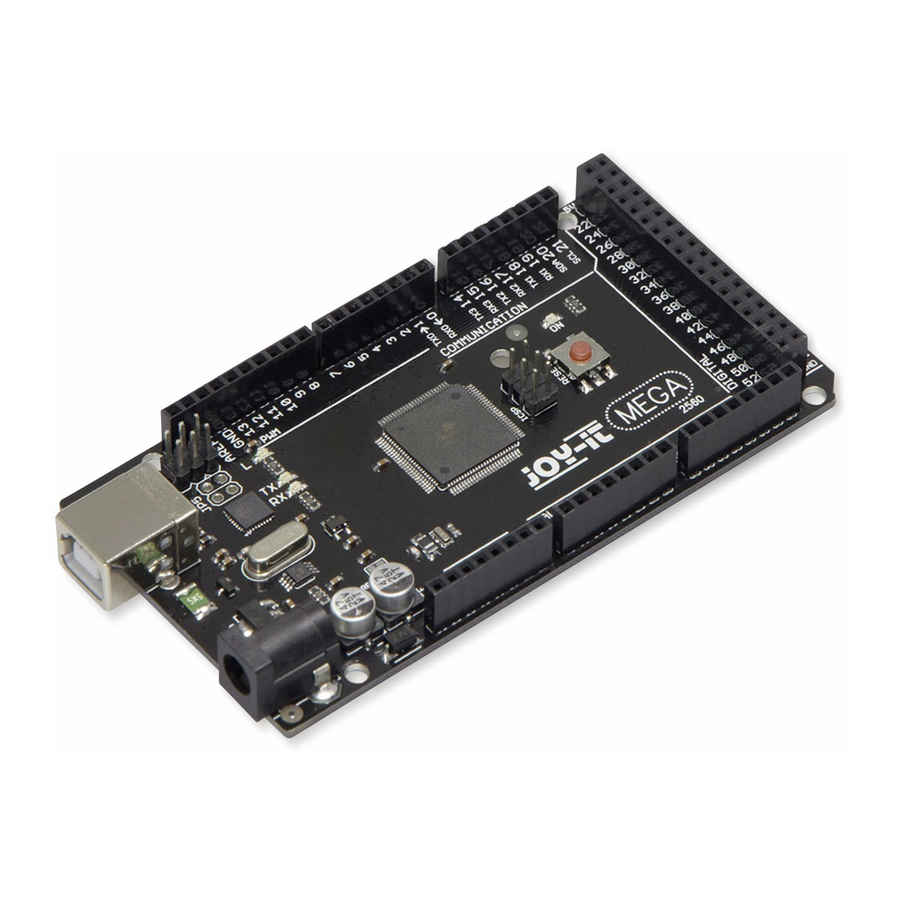

thank you for choosing a Joy-IT product. Our board is a high quality replica
and compatible to the Arduino Mega 2560 but it is not an original Arduino.
The „Mega Board" is the right microcontroller board for those who want to
get quickly and easily into the world of programming.
On the internet, you will find a variety of tutorials and manuals for this
microcontroller board that will give you an easy introduction to the world of
programming.
The ATMega2560 microcontroller offers you enough performance for your
ideas and projects. It is 101.52 x 53.3 mm in size and has more connections
than others with 54 digital in- / outputs and 16 analog inputs.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARD MEGA2560R3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Joy-it ARD MEGA2560R3

Summary of Contents for Joy-it ARD MEGA2560R3

  • Page 1 1. GENERAL INFORMATION & SAFETY INSTRUCTIONS Dear customer, thank you for choosing a Joy-IT product. Our board is a high quality replica and compatible to the Arduino Mega 2560 but it is not an original Arduino. The „Mega Board“ is the right microcontroller board for those who want to get quickly and easily into the world of programming.

  • Page 2: Technical Specifications

    2. TECHNICAL SPECIFICATIONS Model ARD_Mega2560R3 4250236812366 Microcontroller ATmega2560 Input voltage 7 - 12 V Input voltage (max.) 6 - 20 V Digital IO 54 of which 14 PWM Analog IO DC current IO 20 mA DC current 3.3 V 50 mA Storage 256 KB (8 KB for Bootloader)

  • Page 3: Software Installation

    4. SOFTWARE-INSTALLATION If you start programming the Joy-IT ARD_Mega2560R3, you have to install a development environment and the drivers for the associated operating sys- tem on your computer which is going to be used for programming. The recommended development environment is the “Arduino IDE“ which is released by the Arduino manufacturer as an open source software.

  • Page 4: Declaration Of Conformity

    EMV requirements part 1 general requirements Date: 14.08.2015 Name: Xu Lu Position in buisness: CEO Signature: 7. RECOMMENDED ACCESSORIES: JOY-IT SENSORKIT X40 Extensive sensor kit with 40 sensors including analog-digital converter and voltage transformer • high-quality reliable sensors • universally applicable •...

  • Page 5: Further Information

    We send you a parcel stamp with which you can send us your old appliance free of charge. For this possibility, you must contact us via e-mail at service@joy-it.net or via telephone. Information about packaging: Please package your old appliance safe during transport. Should you not have a suitable packaging material or you do not want to use your own material, you can contact us and we will send you an appropriate package.
