Summary of Contents for Joy-it BOARD R3 DIP

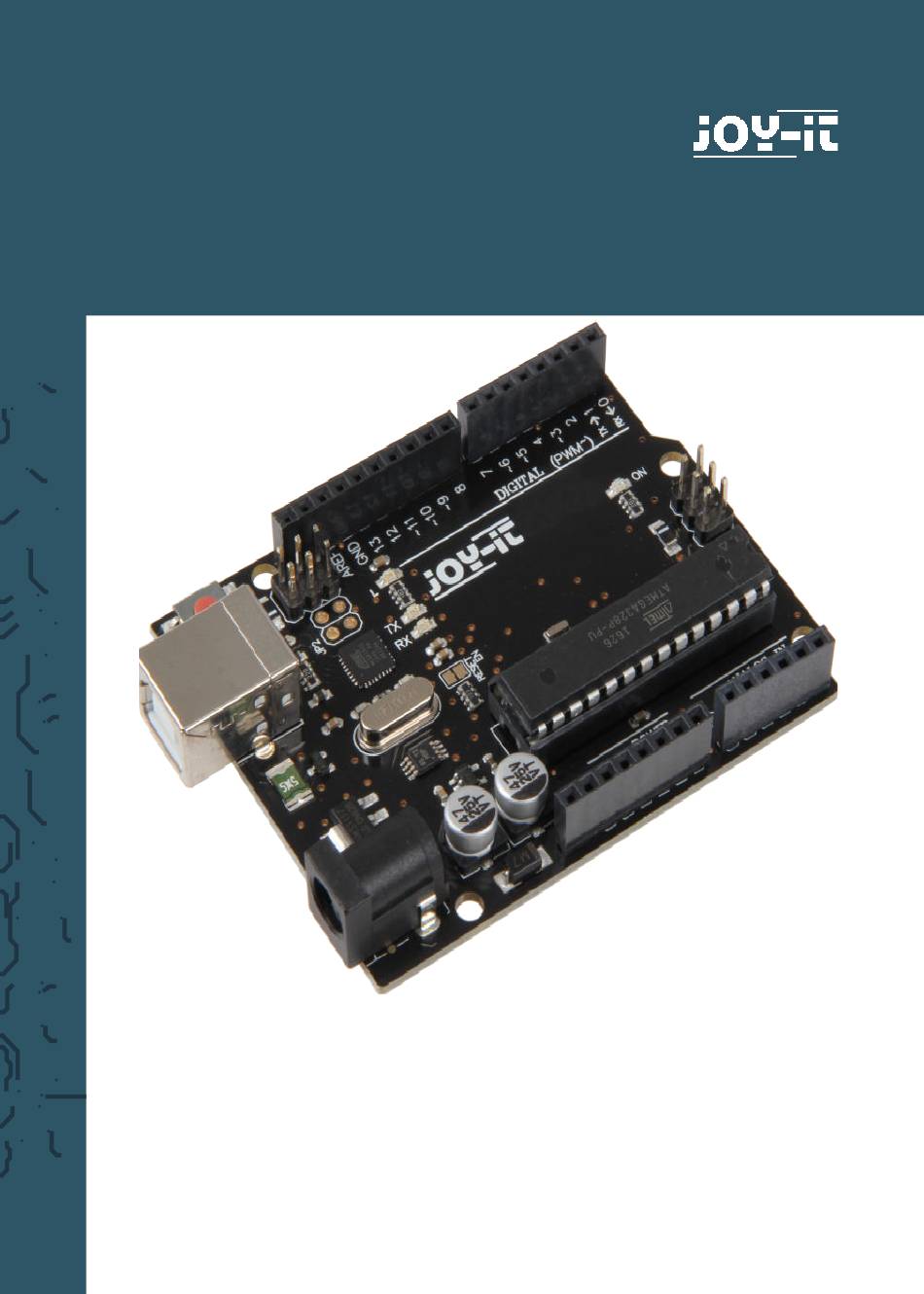

- Page 1 JOY-IT BOARD R3 DIP Mikrocontrollerboard with ATmega328 (Arduino UNO-com- patible)
-
Page 2: General Information
1.GENERAL INFORMATION Dear customer, thank you for choosing a Joy-IT product. Our board is a high quality replica and compatible to the Arduino UNO but it is not an orginal Arduino. This product is the right microcontroller board for those who want to get quickly and easily into the world of programming. -
Page 3: Pin Assignment
2. PIN ASSIGNMENT ATmega16U2 16MHz Voltage Microcontroller IC/USB Controller crystal regulator 7 to 12 VDC USB-B port input to computer 2.1 x 5.5 mm Male center Reset button positive ICSP for USB interface C)SCL Not connected I/O reference Voltage Pin-13 LED (SPI)SCK (SPI)MISO RESET... -
Page 4: Technical Specifications
Clock Speed 16 MHz Dimensions 68,2 x 53,4 4. SOFTWARE-INSTALLATION If you start programming the Joy-IT ARD_R3DIP, you must install a development environment and the drivers for the associated operating system on your computer which is going to be used for the programming. -
Page 5: Software Setup
It is compatible to the Joy-IT ARD_R3DIP and has next to the development environment also the required drivers which make it possible to start immediately. The download for this software can be found with the following link: https://www.arduino.cc/en/Main/Software 5. SOFTWARE-SET UP... -
Page 6: Declaration Of Conformity
Select [Tools -> Port] to choose the port, marked with „(Arduino Uno)“. 6. DECLARATION OF CONFORMITY The manufacturer Simac Electronics GmbH Pascalstr. 8 D-47506 Neukirchen - Vluyn confirms that the product “ARD_R3DIP“ fulfils the requirements of the following guidelines, if used as intended: 2004/ 108/EG (EMV) & 2011/65/EU (Rohs) -
Page 7: Further Information
The following norms have been used to assess this device: EN 61326-1: 2006 electrical equipment for measuring, control and laboratory devices EMV requirements part 1 general requirements Date: 14.08.2015 Name: Xu Lu Position in business: Signature: 7. FURTHER INFORMATION Information and Take-back obli- gations according to the Electrical and Electronic Equipment Act (ElektroG) Symbol on Electric and Electronic Devices:... - Page 8 - Option of return nearby: We will send you a parcel stamp with which you can send us your old device free of charge. For using this, please contact us via e-mail at pickup@joy-it.net or via telephone at 02845 93 60 -23. 8. SUPPORT We are also there for you after your purchase.
