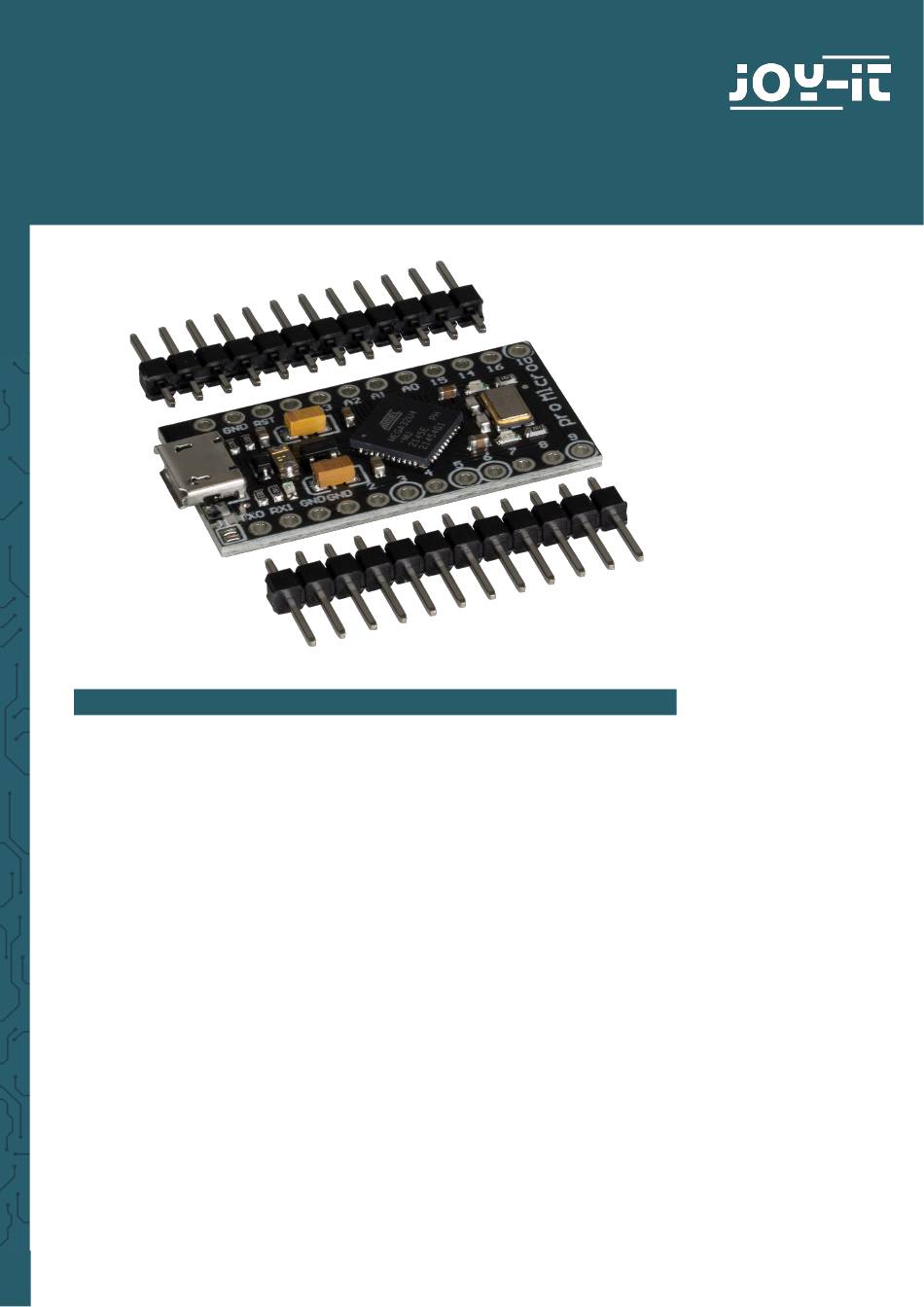

PRO MICRO
Arduino compatible Microcontroller
1. GENERAL INFORMATION
Dear customer,
thank you very much for choosing our product.
In following, we will introduce you to what to observe while starting up
and using this product.
Should you encounter any unexpected problems during use, please do
not hesitate to contact us.
Advertisement
Related Manuals for Joy-it PRO MICRO
Summary of Contents for Joy-it PRO MICRO
- Page 1 PRO MICRO Arduino compatible Microcontroller 1. GENERAL INFORMATION Dear customer, thank you very much for choosing our product. In following, we will introduce you to what to observe while starting up and using this product. Should you encounter any unexpected problems during use, please do...
- Page 2 2. PINOUT By closing the solder bridge J1, the voltage converter on the board is bypassed and the board is directly supplied via the microUSB voltage or the VCC pin. This also allows the operation from as low as 2.7 V. The logic level of the module then also corresponds to the supply voltage.
- Page 3 Now you can set your development environment, for this select under Tools -> Board -> Arduino AVR Boards -> Arduino Micro. Finally, you need to set the correct port to which your Pro Micro is connected. You can select this under Tools -> Port.
-
Page 4: Code Example
4. CODE EXAMPLE Now you can copy the following sample code into your IDE and upload it to your your Pro Micro. The program makes the two built-in LEDs on the RX and TX line blink alternately. /* the setup function runs once when you press reset or... -
Page 5: Additional Information
SIMAC Electronics GmbH, Pascalstr. 8, D-47506 Neukirchen-Vluyn, Germa- Possibility of return in your area: We will send you a parcel stamp with which you can return the device to us free of charge. Please contact us by email at Service@joy-it.net or by telephone. Information on packaging: If you do not have suitable packaging material or do not wish to use your own, please contact us and we will send you suitable packaging.
