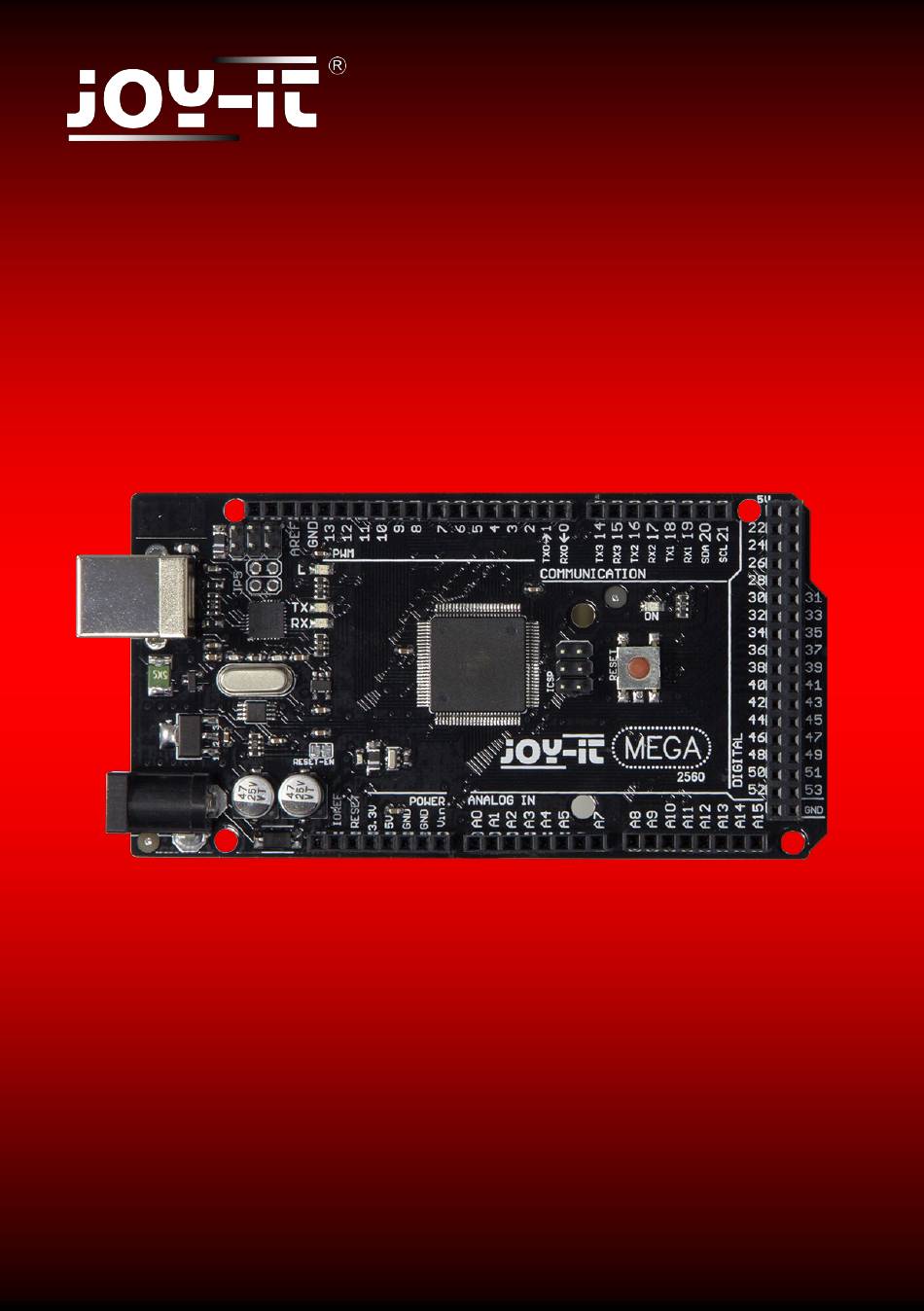

- Page 1 ARD_Mega2560R3 (Arduino Mega 2560 compatible microcontroller, no original Arduino) Manual www.joy-it.net...
- Page 2 Dear customer, thank you for choosing a Joy-IT product. Our board is a high quality replica and compatible with the Arduino Mega 2560, but it is not an original Arduino. The „Mega Board“ is the right microcontroller board for those who want to get into the programming world quickly and easily.
-
Page 3: Technical Specifications
Technical specifications Model: ARD_Mega2560R3 EAN: 4250236812366 Microcontroller ATmega2560 Input Voltage 7-12V Input Voltage (max.) 6-20V Digital IO 54 of which 14 PWM Analog IO DC current IO 40 mA DC current 3.3V 50 mA Storage 256 KB (8 KB for bootloader) - Page 4 Pinout 16 MHz Quarz Voltage regulator USB-B PORT Voltage ATmega16U2 input ICSP f. USB PIN 13 LED AREF IOREF RESET Power supply interfaces Analog inputs Communication interfaces Digitale I/O Pins...
-
Page 5: Software Installation
Arduino manufacturer as open source software. It was released under the GPLv2 which is directed from the concept and constuction to beginners. It is fully compatible with the Joy-IT ARD_Mega2560R3 and includes not only the programming environment but also the drivers needed to get started straight away. -
Page 6: Software Setup
Software Setup After installing the software, the appropriate microcontroller board must be set up in the programming environment. To do this follow the next two steps. Select [Tools->Board] choose „Arduino/Genuino Mega or Mega2560“. Select [Tools->Port] choose the port marked with „(Arduino / Genuino Mega or Mega 2560)“. - Page 7 Experimental setups / Prototypes The manufacturer JOY-IT Europe GmbH Pascalstr. 8 D-47506 Neukirchen-Vluyn confirms that the product "ARD_Mega2560R3" when used as intended certain requirements of the following Guidelines with: 2004/ 108/EG (EMV) & 2011/65/EU (Rohs) The standards listed below became the...
- Page 8 Recommended accessories: Joy-IT SensorKit X40 Extensive sensor kit with 40 sensors including ana- log-digital converter and voltage transformer High quality, reliable sensors Universally applicable Including detailed description with programming ecamples for Arduino and Raspberry PI www.joy-it.net...
