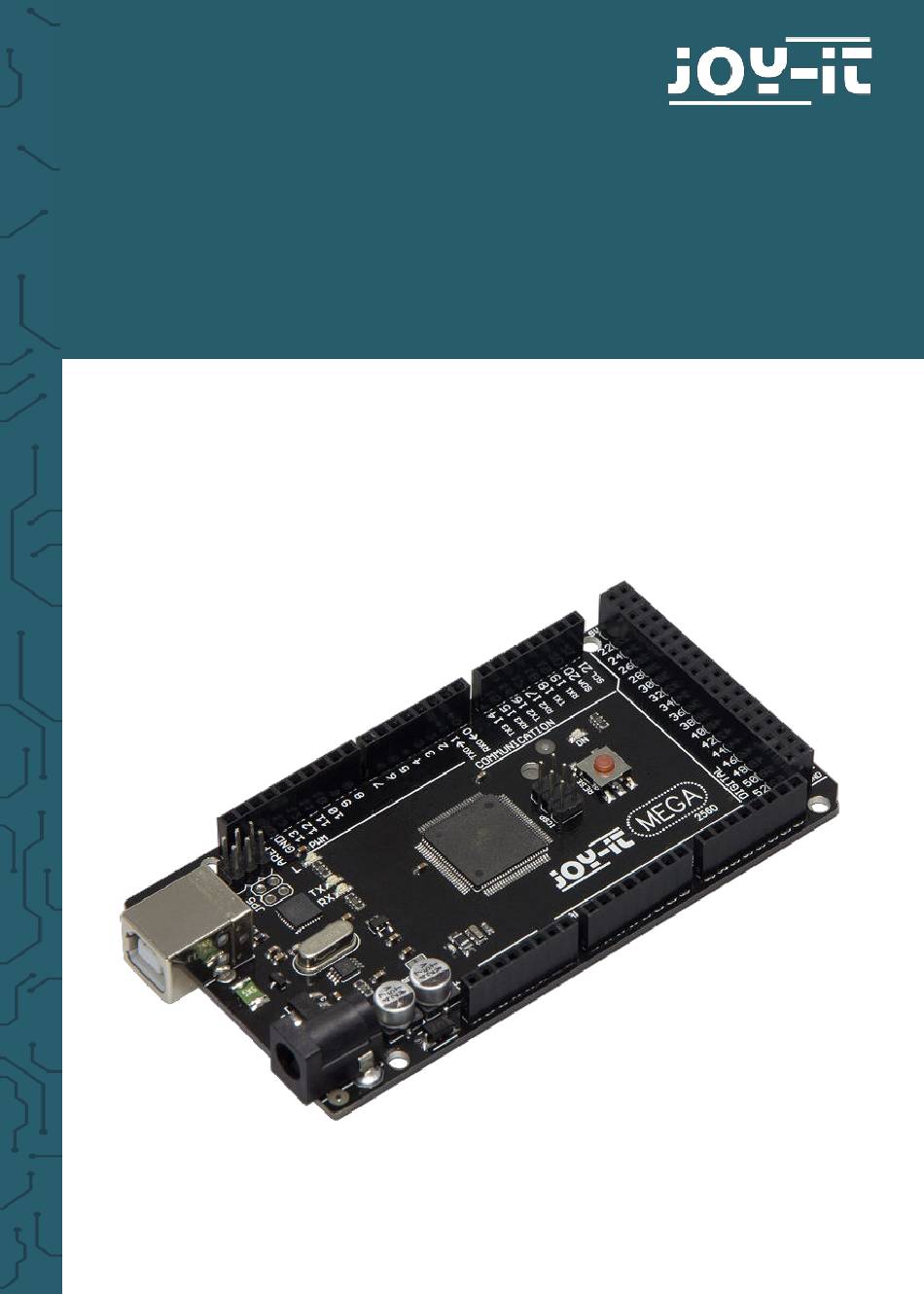

- Page 1 ARD_MEGA2560R3 (Arduino Mega 2560-compatible Microcontroller, no original Arduino) Manual...
- Page 2 Dear customer, thank you for choosing a Joy-IT product. Our board is a high quality replica and compatible to the Arduino Mega 2560 but it is not an original Arduino. The „Mega Board“ is the right microcontroller board for those who want to get quickly and easily into the world of programming.
-
Page 3: Technical Specifications
1. TECHNICAL SPECIFICATIONS Microcontroller ATmega2560 Input Voltage 7 - 12 V Input Voltage 6 - 20 V (max.) Digital IO 54, of that 14 PWM Analog IO DC current IO 20 mA DC current 3.3 V 50 mA Storage 256 KB (8 KB for Bootlader) SRAM 8 KB... -
Page 4: Pin Assignment
2. PIN ASSIGNMENT 16 MHz USB-B Voltage Quartz PORT regulator Voltage input ATmega16U2 ICSP f. USB PIN 13 LED AREF IOREF RESET Power PWM- supply Inter- faces Communi- Analog cation Inputs interfaces Digital I/O Pins... -
Page 5: Software Installation
3. SOFTWARE-INSTALLATION If you start programming the Joy-IT ARD_Mega2560R3, you have to install a deve- lopment environment and the drivers for the associated operating system on your compu- ter which is going to be used for program- ming. The recommended development environ- ment is the “Arduino IDE“... - Page 6 4. SOFTWARE-EINRICHTUNG 4. SOFTWARE SETUP After installing the software, the appropriate microcontroller board must be set up in the programming environment. To do this, follow the next two steps. 1. Select under [Tools->Board] „Arduino/Genuino Mega or Mega 2560“ 2. Select under [Tools -> Port] the port, marked with „(Arduino/Genuino Mega or Mega 2560)“.
-
Page 7: Declaration Of Conformity
5. DECLARATION OF CONFORMITY We the manufacturer, Simac Electronics GmbH Pascalstr. 8 D-47506 Neukirchen-Vluyn declare that the product „ARD_Mega2560R3“ (Microcontroller board for experimental set-ups and prototypes) fulfils the essential following guidelines, if used as in- tended: 2004/ 108/EG (EMV) & 2011/65/EU (Rohs) The norms stipulated in following have been used to assess the device: EN 61326-1: 2006 electrical equipment for measuring,... -
Page 8: Further Information
6. FURTHER INFORMATION Our Information and Take-back obliga- tions according to the Electrical and Electronic Equipment Act (ElektroG) Symbol on Electric and Electronic Devic- This crossed-out dustbin means, that electric and electronic devices do not belong into household waste. You have to return the used device to a registration place. - Page 9 We will send you a parcel stamp with which you can send us your old device free of charge. For using this, please contact us via e-mail at pickup@joy-it.net or via telephone at 02845 93 60 -23. Information on packaging: Please pack your old device safe for transport.
- Page 10 Recommended accessoires: Joy-IT SensorKit Extensive sensor set with 40 sensors including analog-digital-converter and voltage converter • High-quality, reliable sensors • Universally applicable • including detailled description with Programmimg examples for Arduino and Raspberry PI www.joy-it.net Simac Electronics GmbH Pascalstr. 8, 47506 Neukirchen-Vluyn...
