ARD_MEGA2560PRO

Arduino Mega 2560 compatible microcontroller, not an original Arduino

1. GENERAL INFORMATION

Dear customer,

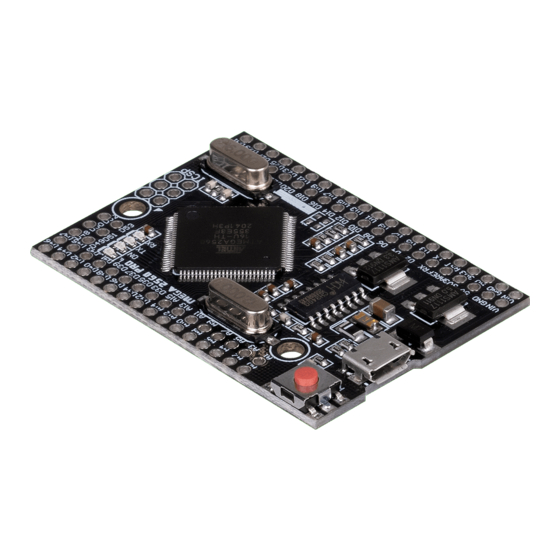

thank you for choosing a Joy-IT product. Our board is a high quality small

form factor replica and compatible to the Arduino Mega 2560 but it is not an

original Arduino. The „MegaPRO Board" is the right microcontroller board

for those who need many pins in a small form factor.

The ATMega2560 microcontroller offers you enough performance for your

ideas and projects. It is 101.52 x 53.3 mm in size and has more connections

than others with 54 digital in- / outputs and 16 analog inputs.

Need help?

Do you have a question about the ARD MEGA2560PRO and is the answer not in the manual?

Page 1 1. GENERAL INFORMATION Dear customer, thank you for choosing a Joy-IT product. Our board is a high quality small form factor replica and compatible to the Arduino Mega 2560 but it is not an original Arduino. The „MegaPRO Board“ is the right microcontroller board for those who need many pins in a small form factor.
Page 2 2. TECHNICAL SPECIFICATIONS Model ARD_MEGA2560PRO 4250236812366 Microcontroller ATmega2560 Input voltage 6 - 9 V at V Digital IO 54 of which 15 PWM Analog IO DC current IO 20 mA DC current 3.3 V 50 mA 256 KB Storage (8 KB for Bootloader) SRAM 8 KB EEPROM...
Page 3 4. SOFTWARE-INSTALLATION If you start programming the Joy-IT ARD_Mega2560PRO, you have to install a development environment and the drivers for the associated operating system on your computer which is going to be used for programming. The recommended development environment is the “Arduino IDE“ which is released by the Arduino manufacturer as an open source software.
Page 4 We send you a parcel stamp with which you can send us your old appliance free of charge. For this possibility, you must contact us via e-mail at service@joy-it.net or via telephone. Information about packaging: Please package your old appliance safe during transport. Should you not have a suitable packaging material or you do not want to use your own material, you can contact us and we will send you an appropriate package.
