Microtek ScanMaker 1000XL Start Here Manual page 5

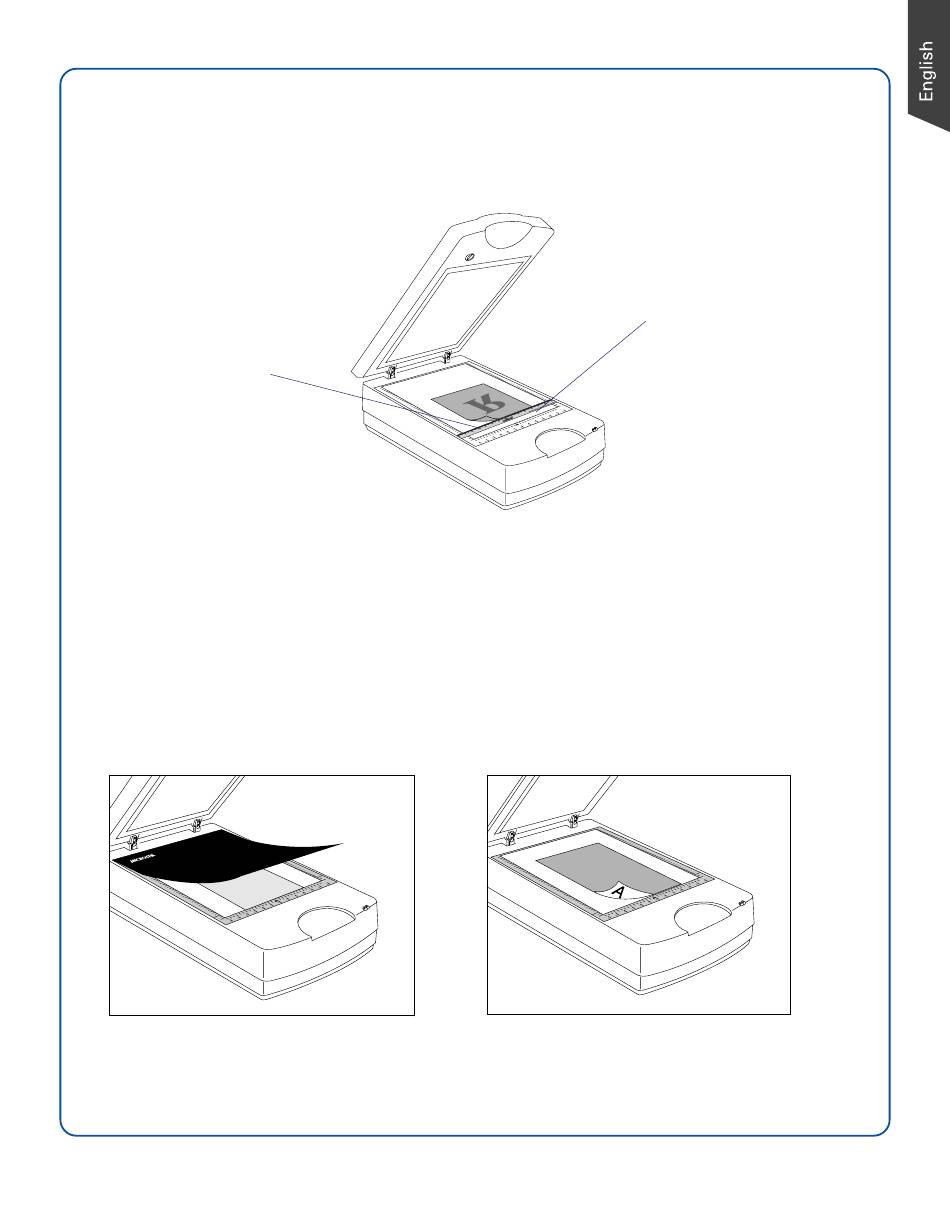

2. To scan non-standard-size transparent film, use the Film Alignment Ruler included with the TMA
1000XL package. Place the Film Alignment Ruler on the scanner glass surface. Then place the film to
be scanned face down also on the scanner glass surface, centering the film along the Film Alignment
Ruler. Make sure you keep the calibration strip on the glass surface clear and free of obstruction at all
times.
Film Alignment Ruler
B. Positioning Reflectives
To scan reflective originals such as photos, you can use the ScanMaker 1000XL with or without the TMA
1000XL.
• If you purchased your ScanMaker 1000XL with the TMA, you will need to use the Black Plate included
with your TMA 1000XL package to shield unwanted light.
• If you purchased your ScanMaker 1000XL without the TMA, simply lift the scanner lid, and place the
reflective original to be scanned on the glass surface. Center the photo along the U-shaped ruler of the
scanner.
With TMA 1000XL & Black Plate
Calibration strip
(Keep clear and unobstructed)
Without TMA 1000XL
5
