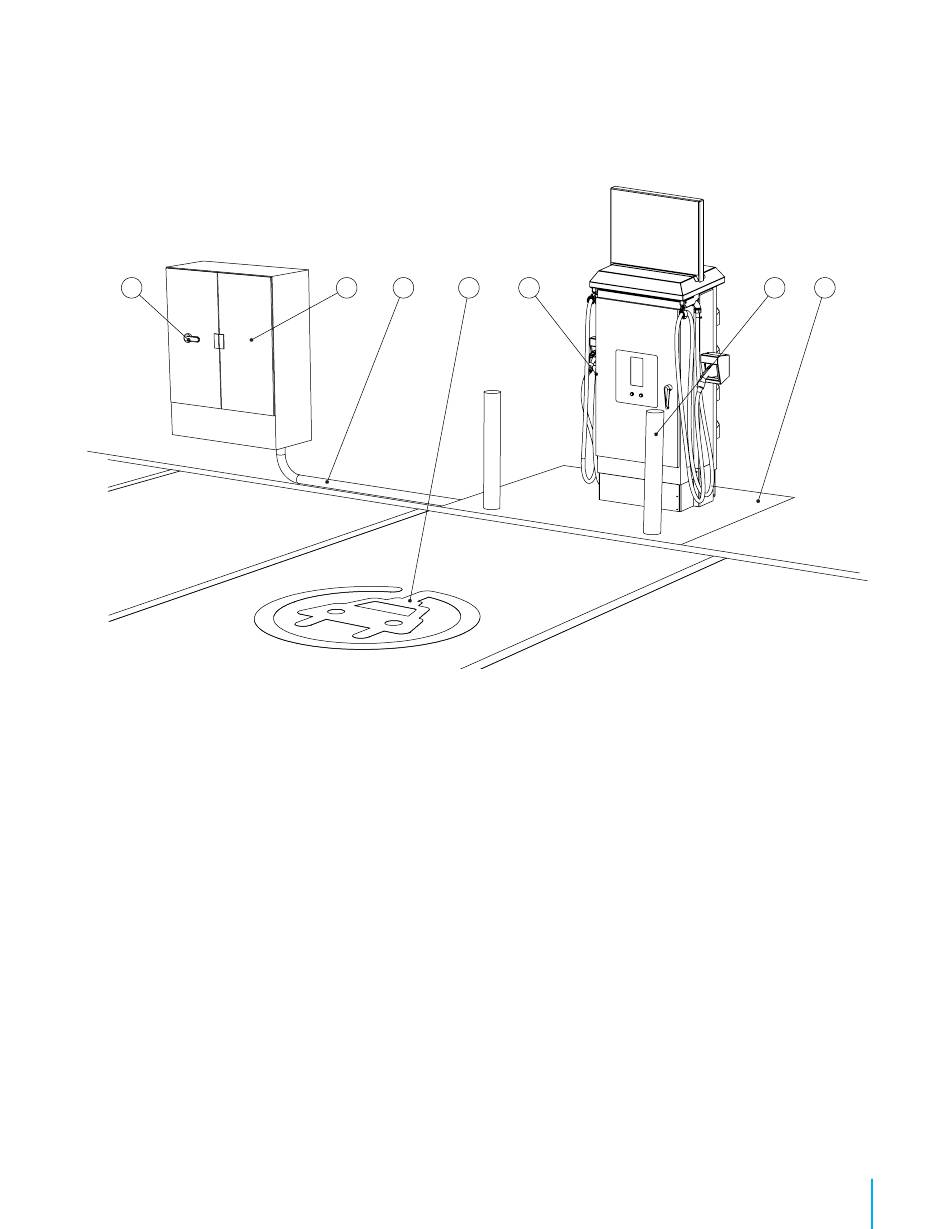

Typical installation

F G
D A B E C
A : Electrical equipment cabinet (metering, protection and distribution)
B : Power cable (three-phase 480 Y/277 Volts @ 100 A or 200 A + NEUTRAL + GROUND)
C : SmartDC Station
D : Master disconnect switch (must be visible from the station)
E : Parking space for the electric vehicle
F : Protective bollard
G : Concrete Slab
When a step down or a step up transformer is necessary to convert the available voltage to the required 480 Volts nominal,
a Y auto transformer, a ./Y transformer, or a Y/Y transformer is suitable.
WARNING: Open Delta Type autotransformer and transformers having their primary configured as « Open Delta » are proscribed.
The product offers mounting configurations that support ADA compliance. Validate with local authorities on how to design the site.
