Motorcycle Bluetooth
Camera & Communication System
2
1
1
Audio
Multitasking
User's Guide
www.sena.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 10C EVO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

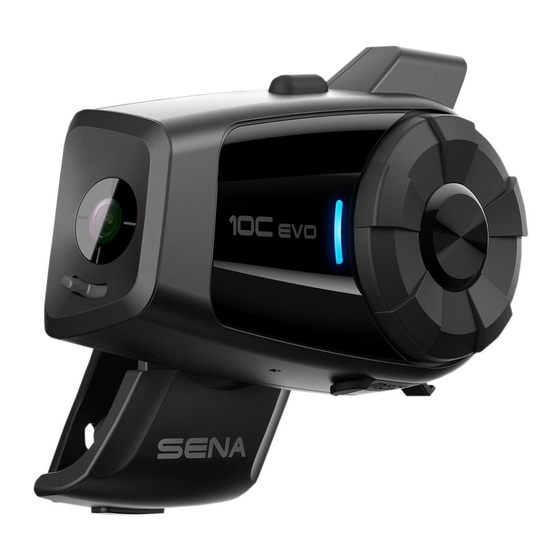

Summary of Contents for Sena 10C EVO

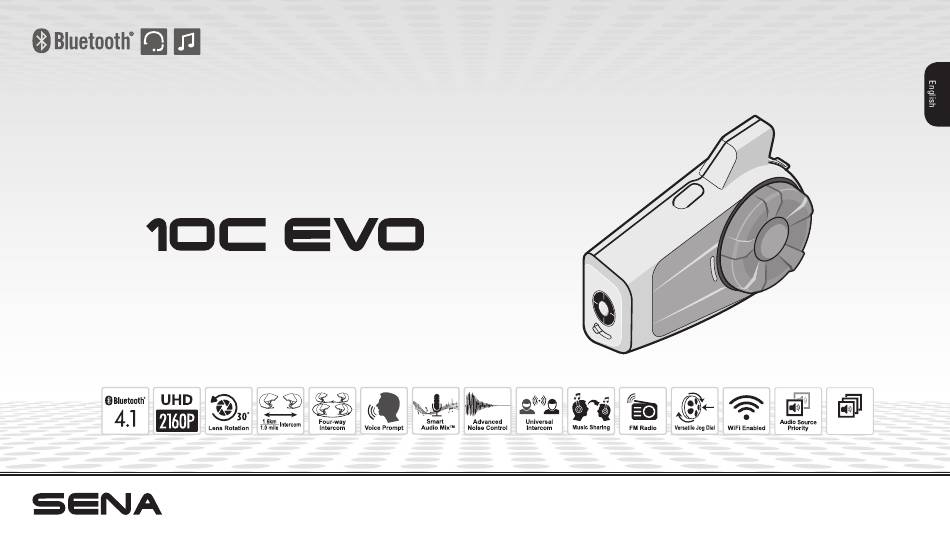

  • Page 1 ® Motorcycle Bluetooth Camera & Communication System Audio Multitasking User’s Guide www.sena.com...
  • Page 2 ® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sena is under license. iPhone, iPod touch are registered trademarks of Apple Inc. Zumo™ is a trademark of Garmin Ltd. or its subsidiaries. TomTom™ is the trademark or registered...
  • Page 3: Table Of Contents

    3.4 Checking the Battery Level ....................12 11 UNIVERSAL INTERCOM ..................24 3.5 Volume Adjustment .......................12 12 FM RADIO ......................25 3.6 Sena Softwares ........................12 12.1 FM Radio On/Off ........................25 CAMERA OPERATION ..................13 12.2 Preset Stations........................25 4.1 Camera On or Off ........................13 12.3 Seek and Save ........................25...
  • Page 4: Package Contents

    10C EVO Attachable Boom Microphone 1 PACKAGE CONTENTS • Attachable Boom Microphone • Microphone Sponges (2) • Headset Main Unit • Hook and Loop Fastener for Attachable Boom Microphone • Boom Microphone Holder • Gear Clamp Unit • Hook and Loop Fastener for Boom Microphone Holder • Clamp Unit Wired Microphone • Glued Surface Mounting Plate • Wired Microphone Speaker • Hook and Loop Fastener for Wired Microphone • Speakers Others • USB Power & Data Cable • Hook and Loop Fasteners for Speakers (4) • Allen Wrench • Foam Speaker Covers (2) • Cigarette Charger • Speaker Pads (Thick) (2) • Speaker Pads (Thin) (2)
  • Page 5: Installing The Headset On Your Helmet

    10C EVO 2 INSTALLING THE HEADSET ON YOUR HELMET 2.1 Installing the Main Unit 2.1.1 Using the Gear Clamp Unit 1. Loosen the two screws on the back plate of the clamp unit with the included allen wrench. 2. Insert the back plate of the clamp unit between the internal padding and external shell of the left side of the helmet.
  • Page 6 10C EVO 2.1.2 Using the Clamp Unit 1. Loosen the two screws on the back plate of the clamp unit with the included allen wrench. 2. Insert the back plate of the clamp unit between the internal padding and external shell of the left side of the helmet.
  • Page 7: Installing The Speakers

    10C EVO 2.1.3 Using the Glued Surface Mounting Plate If you cannot install the clamp unit on the helmet, you can use the glued surface mounting plate to attach the clamp unit to the surface of the helmet. 1. Attach adhesive tape of the glued surface mounting plate to the helmet.
  • Page 8: Installing The Microphone

    10C EVO 2.3 Installing the Microphone 2.3.1 Using the Attachable Boom Microphone 1. Attach the hook and loop fastener for attachable boom microphone on the inside surface of the left external shell. 2. Attach the attachable boom microphone’s mounting plate to the hook and loop fastener.
  • Page 9 10C EVO 2.3.2 Using the Wired Microphone If you have a full face helmet, you can use the wired microphone. 1. Attach the included hook and loop fastener for wired microphone to the inside of the helmet’s chin guard. 2. Attach the wired microphone to the hook and loop fastener for wired microphone.
  • Page 10: Adjusting The Angle

    10C EVO 2.4 Adjusting the angle 2.4.2 Using the Clamp Unit You can adjust the angle for taking photos or recording videos. You can change the vertical angle by 20º (Default), 8º or 32º. The vertical angle change shall be made before the clamp is mounted on You can rotate the horizontal angle by 30º.
  • Page 11: Getting Started

    10C EVO to a power source and then use it. DC Power • If you connect the 10C EVO to the Powerbank while the camera is on, the Charging & 10C EVO will use the electricity stored in the Powerbank but the battery...
  • Page 12: Checking The Battery Level

    4 flashes = High, 70~100% 3.6.2 Sena Utility App 3 flashes = Medium, 30~70% By simply pairing your phone with your headset, you can use the Sena 2 flashes = Low, 0~30% Utility App for quicker and easier set up and management.
  • Page 13: Camera Operation

    4.1 Camera On or Off - You do not use WiFi on the product for 3 minutes. - You do not use the Sena Camera App for 3 minutes. To turn on the camera, tap the Camera Button. The camera turns off •...
  • Page 14: Video Recording

    10C EVO 4.3 Video Recording 4.4 Video Mode (Default: Normal Recording Mode) Press and hold the Camera Button for 1 second to start video 4.4.1 Timelapse Video Mode recording. The green LED will flash and you will hear a voice prompt, Timelapse video records series of photos at timed intervals and makes “Recording”.
  • Page 15: Photo Taking

    10C EVO 4.5 Photo Taking 4.6 Video Tagging Video Tagging allows the camera to record video continuously, but 4.5.1 Single Shot Mode save only the important events. To take a single photo, set the photo mode setting in the camera It creates video files of past, present, and future with each footage configuration to be single shot mode.
  • Page 16: Format Sd Card

    YOU MUST CHANGE THE WiFi CHANNEL TO 2.4 GHz. 2. Search for Bluetooth devices on your mobile phone. Select the Sena 10C EVO in the list of the devices detected on the mobile phone. 3. If your mobile phone asks for a PIN, enter 0000.
  • Page 17: Second Mobile Phone Pairing - Second Mobile Phone, Gps, And Sr10

    3. Search for Bluetooth devices on your mobile phone. Select the 1. Press the Phone Button for 5 seconds until the LED flashes red Sena 10C EVO in the list of the devices detected on the mobile and blue alternately and you hear multiple beeps.
  • Page 18: Intercom Pairing

    10C EVO 5.4 Intercom Pairing 4. The intercom pairing queue is ‘Last-Come, First-Served’. If a headset has multiple paired headsets for intercom conversations, 5.4.1 Pairing with Other Headsets for Intercom Conversation the last paired headset is set as first intercom friend. The...
  • Page 19: Mobile Phone, Gps

    10C EVO 6.2 Speed Dialing 6 MOBILE PHONE, GPS 1. Double tap the Phone Button and you will hear a voice prompt, “Speed dial”. 2. Rotate the Jog Dial clockwise or counter clockwise to navigate between the menus. You will hear prompts for each menu item.
  • Page 20: Stereo Music

    3. Search for Bluetooth devices on the GPS navigation. Select the Sena 10C EVO in the list of the devices detected on the GPS. 2. To adjust the volume, rotate the Jog Dial. 4. Enter 0000 for the PIN.
  • Page 21: Music Sharing

    10C EVO 7.2 Music Sharing 8 INTERCOM You can start sharing music with an intercom friend using Bluetooth stereo music during a two-way intercom conversation. When you terminate music sharing, you can go back to the intercom conversation. To start or terminate sharing music, press and hold the Jog Dial for 1 8.1 Two-way Intercom...
  • Page 22: Multi-Way Intercom

    10C EVO 8.2 Multi-Way Intercom 8.2.2 Starting Four-way Intercom Multi-Way Intercom enables conference-call-style conversations with With three intercom friends connected, a new participant (D) can up to three intercom friends at the same time. While multi-way intercom make it a four-way intercom conference by making an intercom call to is in progress, mobile phone connection is temporarily disconnected.
  • Page 23: Three-Way Conference Phone Call With Intercom Participant

    10C EVO 8.2.3 Ending Multi-Way Intercom 9 THREE-WAY CONFERENCE PHONE CALL You can completely terminate the conference intercom or just WITH INTERCOM PARTICIPANT disconnect an intercom connection with one of your active intercom friends. 1. Press and hold the Jog Dial for 3 seconds until you hear a beep to terminate all intercom connections.
  • Page 24: Group Intercom

    Bluetooth headsets. Non-Sena Bluetooth headsets can be connected to the Sena Bluetooth headset if they support the 1. Go through intercom pairing with up to three headsets you want to Bluetooth Hands-Free Profile (HFP).
  • Page 25: Fm Radio

    10C EVO 3. You can have a two-way intercom or multi-way intercom 12 FM RADIO communication with up to three intercom friends using non-Sena headset. 12.1 FM Radio On/Off To turn on or off the FM radio, press and hold the Phone Button for...
  • Page 26: Scan And Save

    To terminate FM sharing, press and hold 1. Double tap the Phone Button. the Phone Button for 1 second or end the intercom call. 2. The Sena tuner pauses at each station it finds for 8 seconds before moving to the next. Note: 3.
  • Page 27: Region Selection

    10C EVO 12.7 Region Selection 13 FUNCTION PRIORITY You can select the proper FM frequency region from the Sena Device Manager. With the region setting, you may optimize the seek function to avoid unnecessary frequency ranges. The headset operates in the following order of priority:...
  • Page 28: Configuration Setting

    10C EVO 14.1.1 Remote Control Pairing 14 CONFIGURATION SETTING You can remotely control the headset using Sena Remote Control devices (sold separately). 1. Turn on the headset and the Remote Control device. 2. Execute Remote Control Pairing. 14.1 Headset Configuration Setting 3.
  • Page 29: Software Configuration Setting

    10C EVO 14.2 Software Configuration Setting 14.2.4 VOX Phone (Default: Enable) You can change the settings of the headset through the Sena Device If this feature is enabled, you can answer incoming calls by voice. Manager or the Sena App.
  • Page 30 10C EVO 14.2.6 HD Voice (Default: Disable) 14.2.7 HD Intercom (Default: Enable) HD Voice allows you to communicate in high-definition during phone HD Intercom enhances the two-way intercom audio from normal calls. This feature increases the quality so that the audio will be crisp quality to HD quality.
  • Page 31 10C EVO 14.2.10 FM Station Guide (Default: Enable) background audio that is heard can be adjusted using the Sena App. HD Intercom, HD Voice and Audio Source Priority become disabled When FM Station Guide is enabled, FM station frequencies are given temporarily when Audio Multitasking is enabled.
  • Page 32: Camera Configuration Setting

    10C EVO 14.3 Camera Configuration Setting Note: You can change the settings of the camera through the Sena Camera 1. Audio Multitasking will be activated during two-way intercom App. conversations with a headset that also supports this feature. 2. When Audio Multitasking is disabled, the background audio source will 14.3.1 Photo Mode (Default: Single Shot Mode)
  • Page 33 10C EVO 14.3.3 Video Resolution (Default: 2160P/30fps) 14.3.7 Smart Audio Mix™ (Always On) You can select the video resolution to be 2160P/30fps, 1440P/30fps, Smart Audio Mix allows you to record everything you hear through 1080P/60fps, or 1080P/30fps. your speakers as well as your voice during video recording. The function that governs Smart Audio Mix is called Speaker Sound 14.3.4 Timelapse Interval (Default: 1 sec)
  • Page 34: Firmware Upgrade

    The headset supports firmware upgrades. You can update the firmware 16.1 Fault Reset using the Sena Device Manager. Please visit Sena website at www.sena.com to check the latest software downloads. When the headset is not working properly, you can easily reset the unit: 1.
  • Page 35: Factory Reset

    10C EVO 16.2 Factory Reset 1. To restore the headset to factory default settings, press and hold the Phone Button for 10 seconds until the LED shows solid red. 2. Press the Jog Dial to confirm reset. The headset will be restored...
  • Page 36 1.0.0 www.sena.com User’s Guide for Firmware v1.0...
