Summary of Contents for Sena 10C-EVO-02

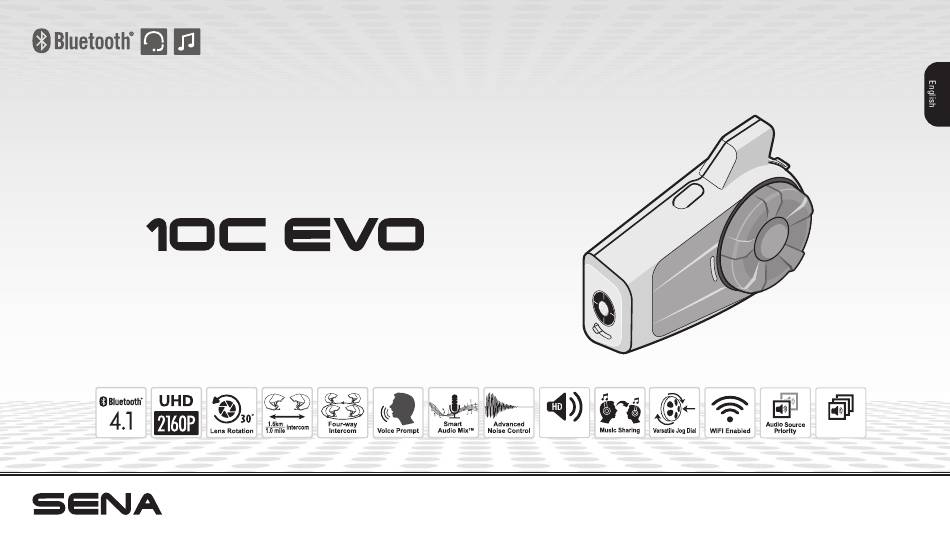

- Page 1 ® Motorcycle Bluetooth Camera & Communication System Audio HD Speakers Multitasking User’s Guide www.sena.com...
- Page 2 The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sena is under license. iPhone, iPod touch are registered trademarks of Apple Inc. Zumo™ is a trademark of Garmin Ltd. or its subsidiaries. TomTom™ is the trademark or registered...
-
Page 3: Table Of Contents
THREE-WAY CONFERENCE PHONE CALL WITH 3.5 Checking the Battery Level ....................12 INTERCOM PARTICIPANT ................... 23 3.6 Volume Adjustment .......................12 3.7 Sena Softwares ........................12 10 GROUP INTERCOM ....................24 CAMERA OPERATION ..................13 11 UNIVERSAL INTERCOM ..................24 4.1 Camera On or Off ........................13 12 FUNCTION PRIORITY ................... -
Page 4: Package Contents
10C EVO Attachable Boom Microphone 1 PACKAGE CONTENTS • Attachable Boom Microphone • Microphone Sponges (2) • Headset Main Unit • Hook and Loop Fastener for Attachable Boom Microphone • Gear Clamp Unit • Boom Microphone Holder • Clamp Unit •... -
Page 5: Installing The Headset On Your Helmet
10C EVO 2 INSTALLING THE HEADSET ON YOUR HELMET 2.1 Installing the Main Unit 2.1.1 Using the Gear Clamp Unit 1. Loosen the two screws on the back plate of the clamp unit with the included allen wrench. 2. Insert the back plate of the clamp unit between the internal padding and external shell of the left side of the helmet. - Page 6 10C EVO 2.1.2 Using the Clamp Unit 1. Loosen the two screws on the back plate of the clamp unit with the included allen wrench. 2. Insert the back plate of the clamp unit between the internal padding and external shell of the left side of the helmet. 3.
-
Page 7: Installing The Speakers
10C EVO 2.2 Installing the Speakers 2.1.3 Using the Glued Surface Mounting Plate If you cannot install the clamp unit on the helmet, you can use the 1. Attach the hook and loop fasteners for speakers to ear pockets glued surface mounting plate to attach the clamp unit to the surface of inside the helmet. -
Page 8: Installing The Microphone
10C EVO 2.3 Installing the Microphone 2.3.1 Using the Attachable Boom Microphone 1. Attach the hook and loop fastener for attachable boom microphone on the inside surface of the left external shell. 2. Attach the attachable boom microphone’s mounting plate to the hook and loop fastener. - Page 9 10C EVO 2.3.2 Using the Wired Microphone If you have a full face helmet, you can use the wired microphone. 1. Attach the included hook and loop fastener for wired microphone to the inside of the helmet’s chin guard. 2. Attach the wired microphone to the hook and loop fastener for wired microphone.
-
Page 10: Adjusting The Angle
10C EVO 2.4 Adjusting the angle 2.4.2 Using the Clamp Unit You can adjust the angle for taking photos or recording videos. You can change the vertical angle by 20º (Default), 8º or 32º. The vertical angle change shall be made before the clamp is mounted on You can rotate the horizontal angle by 30º. -
Page 11: Getting Started
10C EVO 3.2 Powering On and Off 3 GETTING STARTED Press the Jog Dial and the Phone Button for 1 second to power on. Tap the Jog Dial and the Phone Button to power off. 3.3 Low Battery Warning 3.1 Product Details When the battery becomes low, you will hear a voice prompt, “Camera Antenna off, battery low”. -
Page 12: Checking The Battery Level
4 flashes = High, 70~100% 3.7.2 Sena Motorcycles App 3 flashes = Medium, 30~70% By simply pairing your phone with your headset, you can use the Sena Motorcycles App for quicker and easier set up and management. 2 flashes = Low, 0~30% •... -
Page 13: Camera Operation
Camera Button for 1 sec - You do not use WiFi on the product for 3 minutes. - You do not use the Sena Camera App for 3 minutes. Capture a single photo (Single Shot) Photo Tap the Camera Button •... -
Page 14: Video Recording
10C EVO 4.3 Video Recording 4.4 Video Mode (Default: Normal Recording Mode) Press and hold the Camera Button for 1 second to start video 4.4.1 Timelapse Video Mode recording. The green LED will flash and you will hear a voice prompt, Timelapse video records series of photos at timed intervals and makes “Recording”. -
Page 15: Photo Taking
10C EVO 4.5 Photo Taking 4.6 Video Tagging Video Tagging allows the camera to record video continuously, but 4.5.1 Single Shot Mode save only the important events. To take a single photo, set the photo mode setting in the camera It creates video files of past, present, and future with each footage configuration to be single shot mode. -
Page 16: Format Sd Card
YOU MUST CHANGE THE WiFi CHANNEL TO 2.4 GHz. 2. Search for Bluetooth devices on your mobile phone. Select the Sena 10C EVO in the list of the devices detected on the mobile phone. 3. If your mobile phone asks for a PIN, enter 0000. -
Page 17: Second Mobile Phone Pairing - Second Mobile Phone, Gps, And Sr10
3. Search for Bluetooth devices on your mobile phone. Select the 1. Press the Phone Button for 5 seconds until the LED flashes red Sena 10C EVO in the list of the devices detected on the mobile and blue alternately and you hear multiple beeps. -
Page 18: Intercom Pairing
10C EVO 5.4 Intercom Pairing 4. The intercom pairing queue is ‘Last-Come, First-Served’. If a headset has multiple paired headsets for intercom conversations, 5.4.1 Pairing with Other Headsets for Intercom Conversation the last paired headset is set as first intercom friend. The The headset can be paired with up to three other headsets for previous intercom friend becomes second intercom friend, and Bluetooth intercom conversation. -
Page 19: Mobile Phone, Gps
10C EVO 6.2 Speed Dialing 6 MOBILE PHONE, GPS 1. Double tap the Phone Button and you will hear a voice prompt, “Speed dial”. 2. Rotate the Jog Dial clockwise or counter clockwise to navigate between the menus. You will hear prompts for each menu item. 6.1 Mobile Phone Call Making and Answering 3. -
Page 20: Gps Navigation
3. Search for Bluetooth devices on the GPS navigation. Select the Sena 10C EVO in the list of the devices detected on the GPS. 2. To adjust the volume, rotate the Jog Dial. 4. Enter 0000 for the PIN. -
Page 21: Music Sharing
10C EVO 7.2 Music Sharing 8 INTERCOM You can start sharing music with an intercom friend using Bluetooth stereo music during a two-way intercom conversation. When you terminate music sharing, you can go back to the intercom conversation. To start or terminate sharing music, press and hold the Jog Dial for 1 8.1 Two-way Intercom second during an intercom conversation until you hear a double beep. -
Page 22: Multi-Way Intercom
10C EVO 8.2 Multi-Way Intercom 8.2.2 Starting Four-way Intercom Multi-Way Intercom enables conference-call-style conversations with With three intercom friends connected, a new participant (D) can up to three intercom friends at the same time. While multi-way intercom make it a four-way intercom conference by making an intercom call to is in progress, mobile phone connection is temporarily disconnected. -
Page 23: Three-Way Conference Phone Call With Intercom Participant
10C EVO 8.2.3 Ending Multi-Way Intercom 9 THREE-WAY CONFERENCE PHONE CALL You can completely terminate the conference intercom or just WITH INTERCOM PARTICIPANT disconnect an intercom connection with one of your active intercom friends. 1. Press and hold the Jog Dial for 3 seconds until you hear a beep to terminate all intercom connections. -
Page 24: Group Intercom
Bluetooth headsets. Non-Sena Bluetooth headsets can be connected to the Sena Bluetooth headset if they support the 1. Go through intercom pairing with up to three headsets you want to Bluetooth Hands-Free Profile (HFP). -
Page 25: Function Priority
10C EVO 3. You can have a two-way intercom or multi-way intercom 12 FUNCTION PRIORITY communication with up to three intercom friends using non-Sena headset. The headset operates in the following order of priority: (highest) Mobile phone Sena Intercom Headset... -
Page 26: Configuration Setting
10C EVO 13.1.1 Remote Control Pairing 13 CONFIGURATION SETTING You can remotely control the headset using Sena Remote Control devices (sold separately). 1. Turn on the headset and the Remote Control device. 2. Execute Remote Control Pairing. 13.1 Headset Configuration Setting 3. -
Page 27: Software Configuration Setting
10C EVO 13.2 Software Configuration Setting 13.2.4 VOX Phone (Default: Enable) You can change the settings of the headset through the Sena Device If this feature is enabled, you can answer incoming calls by voice. Manager or the Sena Motorcycles App. - Page 28 10C EVO 13.2.6 HD Voice (Default: Disable) 13.2.7 HD Intercom (Default: Enable) HD Voice allows you to communicate in high-definition during phone HD Intercom enhances the two-way intercom audio from normal calls. This feature increases the quality so that the audio will be crisp quality to HD quality.
- Page 29 How much audio source in the foreground. background audio that is heard can be adjusted using the Sena A. GPS instructions can be heard during phone calls and the volume level of Motorcycles App.
-
Page 30: Camera Configuration Setting
10C EVO 13.3 Camera Configuration Setting Note: You can change the settings of the camera through the Sena Camera 1. Audio Multitasking will be activated during two-way intercom App. conversations with a headset that also supports this feature. 2. When Audio Multitasking is disabled, the background audio source will 13.3.1 Photo Mode (Default: Single Shot Mode) - Page 31 10C EVO 13.3.3 Video Resolution (Default: 2160P/30fps) 13.3.7 Smart Audio Mix™ (Always On) You can select the video resolution to be 2160P/30fps, 1440P/30fps, Smart Audio Mix allows you to record everything you hear through your 1080P/60fps, or 1080P/30fps. speakers as well as your voice during video recording. The function that governs Smart Audio Mix is called Speaker Sound Recording.
-
Page 32: Firmware Upgrade
The headset supports firmware upgrades. You can update the firmware 15.1 Fault Reset using the Sena Device Manager. Please visit Sena website at www.sena.com to check the latest software downloads. When the headset is not working properly, you can easily reset the unit: 1. -
Page 33: Factory Reset
10C EVO 15.2 Factory Reset 1. To restore the headset to factory default settings, press and hold the Phone Button for 10 seconds until the LED shows solid red. 2. Press the Jog Dial to confirm reset. The headset will be restored to factory setting and switched off automatically. - Page 34 1.4.0 www.sena.com...
