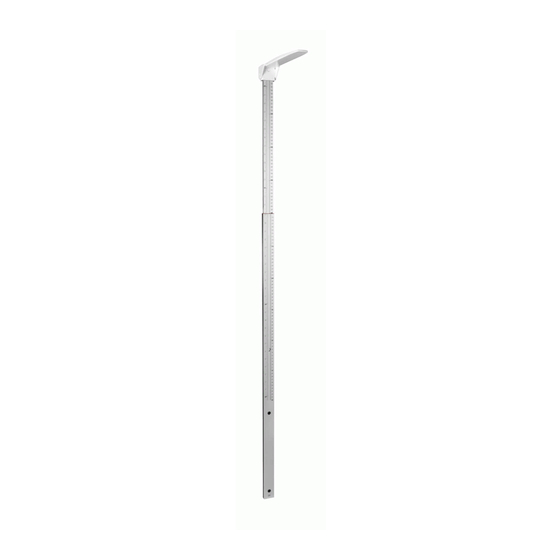

KERN MSF 200N Operating Instructions Manual
Mechanical height measuring rod
Hide thumbs
Also See for MSF 200N:
- Operating instructions manual (208 pages) ,
- Operating instructions manual (116 pages) ,
- Operating instructions manual (6 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for KERN MSF 200N
Summary of Contents for KERN MSF 200N
- Page 1 KERN & Sohn GmbH Ziegelei 1 Phone: +49-[0]7433- 9933-0 D-72336 Balingen Fax: +49-[0]7433-9933-149 email: info@kern-sohn.com Internet: www.kern-sohn.com Operating instructions Mechanical height measuring rod KERN MSF 200N Version 1.4 06/2016 MSF_200N-BA-e-1614...
-
Page 2: Table Of Contents
KERN MSF 200N Version 1.4 06/2014 Operating instructions Mechanical height measuring rod Table of Contents Technical Data ...................... 3 Declaration of conformity ..................3 Explanation of the graphic symbols ..............4 Basic Information (General) ................6 Basic Safety Precautions ..................7 Unpacking/installing .................... -
Page 3: Technical Data
1 Technical Data KERN MSF 200N Measuring range 60 – 200 cm / 24-78 inch Readability 1 mm / 1/8 inch tolerance 10 mm Dimensions (D x H x W) mm 60 x 290 x 930 mm Temperature range +10°C … +40°C Storage temperature -20°C …... -
Page 4: Explanation Of The Graphic Symbols
Year and month here as example 2016-06 „Attention observe accompanying document“, or „Follow operating instructions“ Please note operating instructions Please note operating instructions Identification of the manufacturer of the medical Kern & Sohn GmbH product including address D – 72336 Balingen Ziegelei 1 MSF_200N-BA-e-1614... - Page 5 Temperature limitation +60° C indicating the upper and the lower limit (storage temperature on packaging) Temperature indication as example -20 ° C Temperature limitation in the application 10°C / 40°C indicating the lower and the upper limit (Allowable ambient temperature) Temperature indication as example MSF_200N-BA-e-1614...
-
Page 6: Basic Information (General)
The height measuring rod may only be used according to the described conditions. Other areas of use must be released by KERN in writing. Warranty Warranty claims shall be voided in case • Our conditions in the operation manual are ignored •... -
Page 7: Basic Safety Precautions
5 Basic Safety Precautions Carefully read this operation manual before setup and commissioning, even if you are already familiar with KERN balances. All language versions contain a non-binding translation. The original German is binding. Staff training The medical staff must apply and follow the operating instructions for proper use and care of the product. -
Page 8: Unpacking/Installing
6 Unpacking/installing Testing upon Please check packaging as well as the device on receipt for acceptance possibly visible external damages. Packaging/ Keep all parts of the original packaging for a possibly required Return return. Only use original packaging for returning. Checking the After the assembly of the height measuring rod, the scale must scale... - Page 9 Scope of supply Height measuring rod 1 x bracket 2 x dowel, “wall bracket“ 2 x screw, “scales stand bracket“ Screw „Measuring rod on tripod of scales“ 2 x screws „Measuring rod on wall with bracket“ 2 x rubber ring „Measuring rod on wall“ Operating instructions MSF_200N-BA-e-1614...
-
Page 10: Installation
7 Installation Wall assembly 1. Set marking at 51.5cm above the floor, using a verified length measuring device. 2. Extend height measuring rod and mark the second hole vertically above it. 3. Drill both holes. MSF_200N-BA-e-1614... - Page 11 4. Insert the dowels. 5. Insert lower screw and tighten it. 6. Insert upper screw and tighten it. MSF_200N-BA-e-1614...
- Page 12 How to attach to KERN scale Use the 2 screws for screwing the bracket into the supplied insert nuts on the stand of the scales. Extend the height measuring rod and tighten it in the lower hole of the bracket with the help of the appertaining screw.
-
Page 13: Body Height Measurement
8 Body height measurement Body height above 130 cm 1. Pull measuring rod upwards 2. Move head stop up into horizontal position until it locks. 3. Carefully push the measuring rod down until the head stop gently touches the head of the aligned person. Read body height on the measuring rod (marking A). -
Page 14: Cleaning, Maintenance, Disposal
Service, The appliance may only be opened by trained service maintenance technicians who are authorized by KERN. Disposal Disposal of packaging and appliance must be carried out by operator according to valid national or regional law of the location where the appliance is used.
