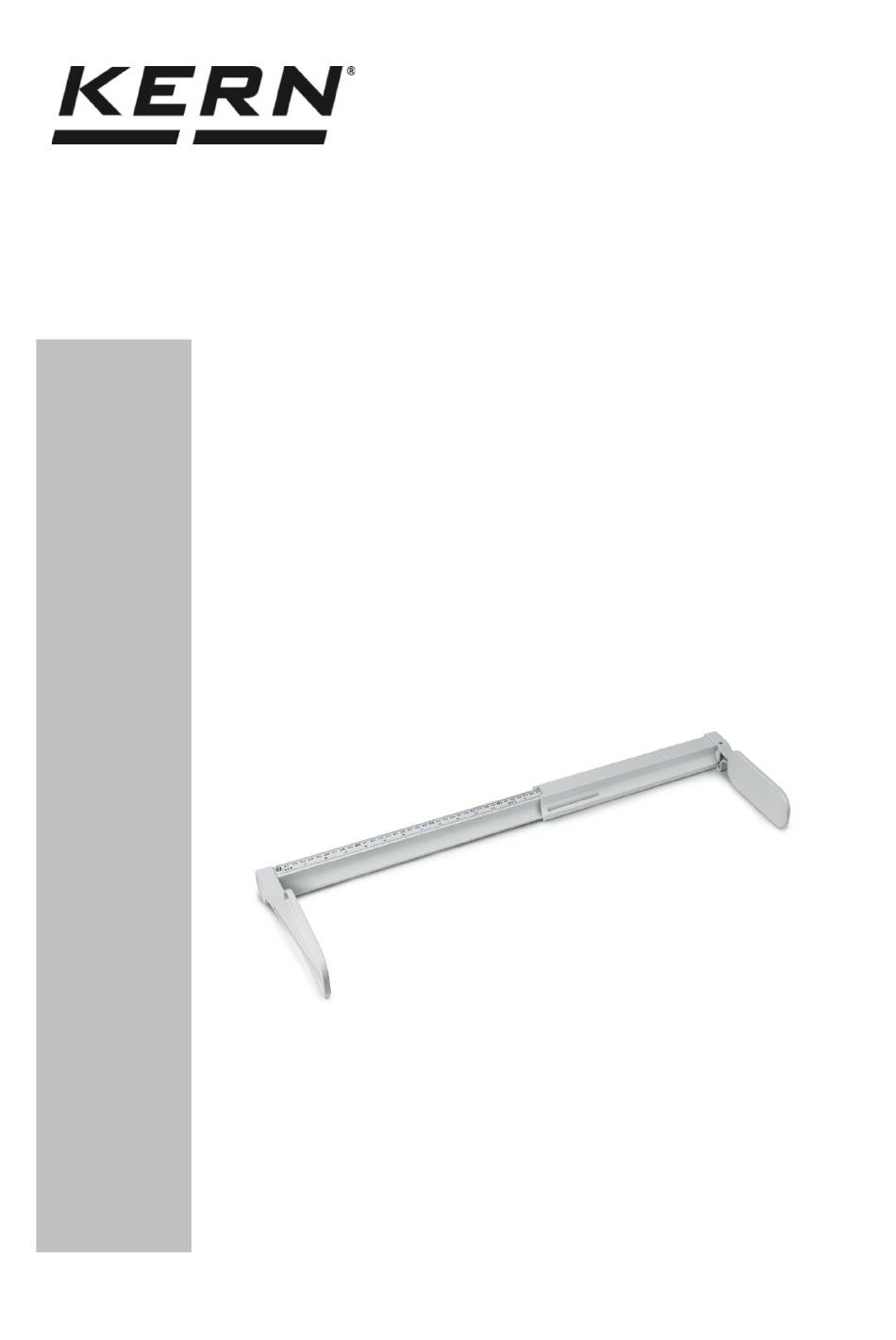

- Page 1 KERN & Sohn GmbH Ziegelei 1 Phone: +49-[0]7433- 9933-0 D-72336 Balingen Fax: +49-[0]7433-9933-149 E-Mail: info@kern-sohn.com Internet: www.kern-sohn.com Operating manual Mechanical height measuring rod KERN MBA-A01 TMBA-A01-A Version 1.2 2020-10 MBA-A01-BA-e-2012...
-
Page 2: Table Of Contents
Temperature range +10°C … +40°C Net weight approx. 360 g Admitted as medical product as per Category I with measuring function Guideline 93/42/EWG (CE 0297) The height meter is only suitable for use with baby weighing scale KERN MBA-M. MBA-A01-BA-e-2012... -
Page 3: Declaration Of Conformity
2 Declaration of conformity The current EC/EU Conformity declaration can be found online in: www.kern-sohn.com/ce MBA-A01-BA-e-2012... -
Page 4: Appliance Overview

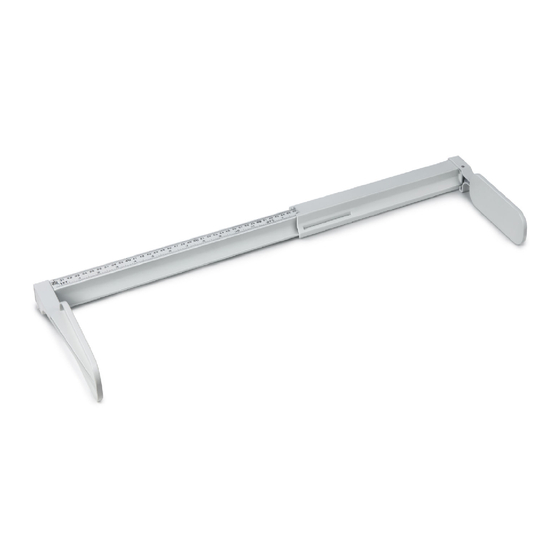

3 Appliance overview 1. Measuring rod 2. Head stop 3. Caliper gauge/Heel stop MBA-A01-BA-e-2012... -
Page 5: Explanation Of The Graphic Symbols
2020-10 „Attention observe accompanying document“, or „Follow operating instructions“ „Follow operating instructions“ „Follow operating instructions“ Manufacturer’s marking of Kern & Sohn GmbH medical product including address D – 72336 Balingen Ziegelei 1 Temperature limitation in the application 10°C / 40°C... -
Page 6: Basic Information (General)
The height measuring rod may only be used according to the described conditions. Other areas of use must be released by KERN in writing. Warranty Warranty claims shall be voided in case • Our conditions in the operation manual are ignored •... -
Page 7: Basic Safety Precautions
• Do not attach the height measuring rod to any other but the baby weighing scale KERN MBA-M. • During installation make sure that the screws are fitted firmly. • Do not leave a baby unattended. -
Page 8: Unpacking/Installing
7 Unpacking/installing Testing upon Please check packaging as well as the height meter on receipt acceptance for possibly visible external damages. Packaging/ Keep all parts of the original packaging for a possibly required Return return. Only use original packaging for returning. •... - Page 9 Installing: Place the length meter on the edge of the housing. The length meter should be clipped on the 2 pins (1) on the left and right side. Fix it with the delivered screw on the center hole (2). To acces the screw hole on the length meter, it must be fully extended. MBA-A01-BA-e-2012...
-
Page 10: Body Height Measurement
8 Body height measurement Fixed stop Movable stop min. 30 cm max. 80 cm MBA-A01-BA-e-2012... - Page 11 Position the baby in a way that the head touches gently the fixed stop. Shift caliper gauge acc. to fig. till the heel stop. Read the body height. Do not leave a baby unattended. When shifting the measuring rod, make sure that no harm is done to the baby and that its hands and feet do not rest on the measuring rod.
-
Page 12: Cleaning, Maintenance, Disposal
9 Cleaning, Maintenance, Disposal Cleaning Clean the height measuring rod with household detergent or commercially available disinfectant, e.g. 70% isopropanol. Disinfection We recommend a disinfectant suitable for wiping disinfection. Please follow manufacturer’s instructions. Do not use abrasive or aggressive cleaners such as spirits or alcohol or similar as they might damage the high-quality surface.
