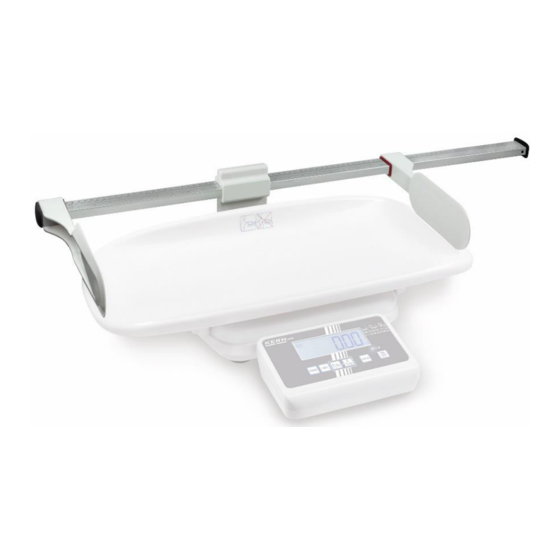

- Page 1 KERN & Sohn GmbH Ziegelei 1 Tel: +49-[0]7433- 9933-0 D-72336 Balingen Fax: +49-[0]7433-9933-149 E-Mail: info@kern-sohn.com Internet: www.kern-sohn.com Operating instructions Height measuring rod KERN MBC-A01 Version 1.4 2019-10 MBC-A01-BA-e-1914...
-
Page 2: Table Of Contents
KERN MBC-A01 Version 1.4 2019-10 Operating instructions for body height meter Contents Technical data ....................3 Declaration of conformity ................3 Scope of delivery ................... 4 Explanation of the graphic symbols ............5 Basic Information (General) ................6 Basic Safety Precautions ................7 Unpacking/installing .................. -
Page 3: Technical Data
Category I with measuring Guideline 93/42/EWG ( CE 0297 ) function The height meter is only suitable for use with baby weighing scale KERN MBC-M. 2 Declaration of conformity To view the current EC/EU Declaration of Conformity go to: www.kern-sohn.com/ce... -
Page 4: Scope Of Delivery
3 Scope of delivery 1 Measuring rod 2 Head stop 3 Foot stop 4 Screws (4 x) MBC-A01-BA-e-1914... -
Page 5: Explanation Of The Graphic Symbols
2019-10 „Attention observe accompanying document“, or „Follow operating instructions“ „Follow operating instructions“ „Follow operating instructions“ Manufacturer’s marking of Kern & Sohn GmbH medical product including address D – 72336 Balingen Ziegelei 1 Temperature limitation in the application 10°C / 40°C... -
Page 6: Basic Information (General)
The height measuring rod may only be used according to the described conditions. Other areas of use must be released by KERN in writing. Warranty Warranty claims shall be voided in case Our conditions in the operation manual are ignored ... -
Page 7: Basic Safety Precautions
6 Basic Safety Precautions Carefully read this operation manual before setup and commissioning, even if you are already familiar with KERN balances. Staff training The medical staff must apply and follow the operating instructions for proper use and care of the product. -
Page 8: Unpacking/Installing
7 Unpacking/installing Testing upon Please check packaging as well as the device on receipt for acceptance possibly visible external damages. Packaging/ Keep all parts of the original packaging for a possibly required Return return. Only use original packaging for returning. MBC-A01-BA-e-1914... -
Page 9: Assembly
Attach the height meter to the bottom end of the weighing scale with the help of the supplied screws. When screwing down the height meter make sure that you do not apply too much pressure on the weighing pan as that may damage the weighing cell. MBC-A01-BA-e-1914... -
Page 10: Body Height Measurement
Move the foot stop (4) carefully towards the bottom of the baby’s feet and keep the baby immobile. On the scale read the baby’s size. A correctly exercised height measurement will achieve an accuracy of ±5 mm. MBC-A01-BA-e-1914... -
Page 11: Cleaning, Maintenance, Disposal
Disposal of packaging and height meter must be carried out by operator according to valid national or regional law of the location where the appliance is used. Do not spray the height measuring rod with disinfectant. Remove dirt immediately MBC-A01-BA-e-1914...
