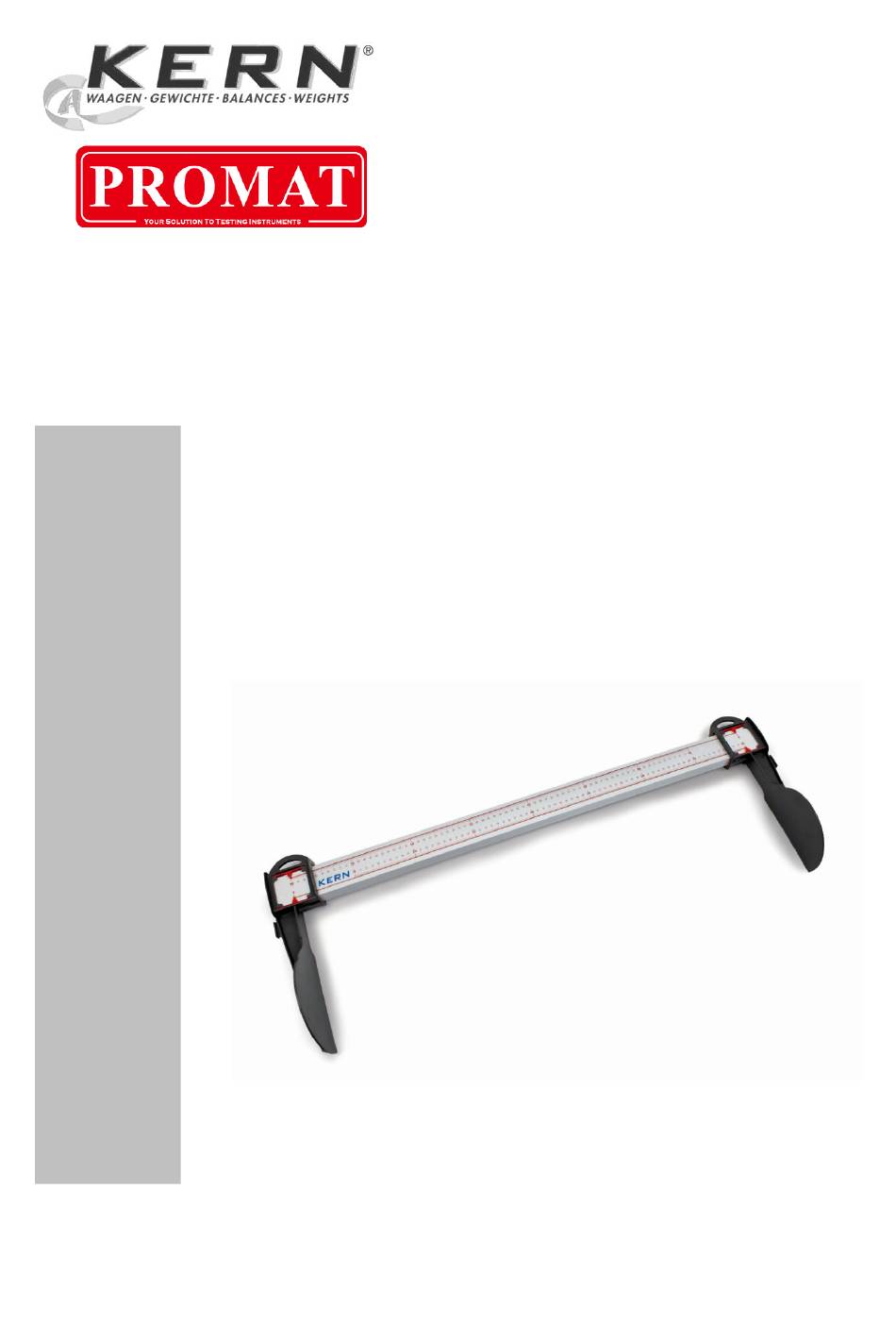

- Page 1 KERN & Sohn GmbH Ziegelei 1 Phone: +49-[0]7433- 9933-0 D-72336 Balingen Fax: +49-[0]7433-9933-149 email: info@kern-sohn.com Internet: www.kern-sohn.com Operating instructions Mechanical height measuring rod KERN MSB 80 Version 1.1 08/2013 MSB_80-BA-e-1311...
-
Page 2: Table Of Contents
KERN MSB 80 Version 1.1 08/2013 Operating instructions Mechanical height measuring rod Table of Contents Technical Data ....................3 Declaration of conformity ................4 Explanation of the graphic symbols ............6 Basic Information (General) ................8 Basic Safety Precautions ................9 Unpacking/installing .................. -
Page 3: Technical Data
1 Technical Data KERN MSB 80 10 – 80 cm Measuring range Readability 1 mm tolerance 5 mm Dimensions (w x h x d) mm 890 x 100 x 330 mm +10°C … +40°C Temperature range - 20°C … + 60°C... -
Page 4: Declaration Of Conformity
2 Declaration of conformity KERN & Sohn GmbH D-72322 Balingen-Frommern Tel: 0049-[0]7433- 9933-0 Postfach 4052 Fax: 0049-[0]7433-9933-149 E-Mail: info@kern-sohn.de Internet: www.kern-sohn.de Declaration of conformity Konformitätserklärung für Geräte mit CE-Zeichen Declaration for appliances with CE mark Declaración de conformidad para equipos con rótulo CE Déclaration de conformité... - Page 5 93/42/EEC 20.08.2013 Datum Signatur Date Signature Ort der Ausstellung 72336 Balingen Albert Sauter Place of issue KERN & Sohn GmbH Geschäftsführer Managing director KERN & Sohn GmbH, Ziegelei 1, D-72336 Balingen, Tel. +49-[0]7433/9933-0 Fax +49-[0]7433/9933-149, E-Mail: info@kern-sohn.com, Internet: www.kern-sohn.com MSB_80-BA-e-1311...
-
Page 6: Explanation Of The Graphic Symbols
Year and month here as example „Attention observe accompanying document“, or „Follow operating instructions“ Please note operating instructions Please note operating instructions Identification of manufacturer of medical product Kern & Sohn GmbH including address D – 72336 Balingen Ziegelei 1 MSB_80-BA-e-1311... - Page 7 Temperature limitation +60° C indicating the upper and the lower limit (storage temperature on packaging) Temperature indication as example -20 ° C Temperature limitation in the application 50.00°F /104.00°F indicating the lower and the upper limit (Allowable ambient temperature) Temperature indication as example MSB_80-BA-e-1311...
-
Page 8: Basic Information (General)
The height measuring rod may only be used according to the described conditions. Other areas of use must be released by KERN in writing. Warranty Warranty claims shall be voided in case Our conditions in the operation manual are ignored... -
Page 9: Basic Safety Precautions
5 Basic Safety Precautions Carefully read this operation manual before setup and commissioning, even if you are already familiar with KERN balances. All language versions contain a non-binding translation. The original German is binding. Staff training The medical staff must apply and follow the operating instructions for proper use and care of the product. -
Page 10: Unpacking/Installing
6 Unpacking/installing Please check packaging as well as the device on receipt for Testing upon possibly visible external damages. acceptance Packaging/ Keep all parts of the original packaging for a possibly required return. Return Only use original packaging for returning. Installation MSB_80-BA-e-1311... -
Page 11: Body Height Measurement
7 Body height measurement Left-hand use Shift right caliper gauge to the end of the measuring rod to 0 cm. Shift the left caliper gauge until the stretched feet of the baby are reached. Read the height on the marking of the left caliper gauge. Right-hand use ... -
Page 12: Cleaning, Maintenance, Disposal
Service, The appliance may only be opened by trained service maintenance technicians who are authorized by KERN. Disposal Disposal of packaging and appliance must be carried out by operator according to valid national or regional law of the location where the appliance is used.
