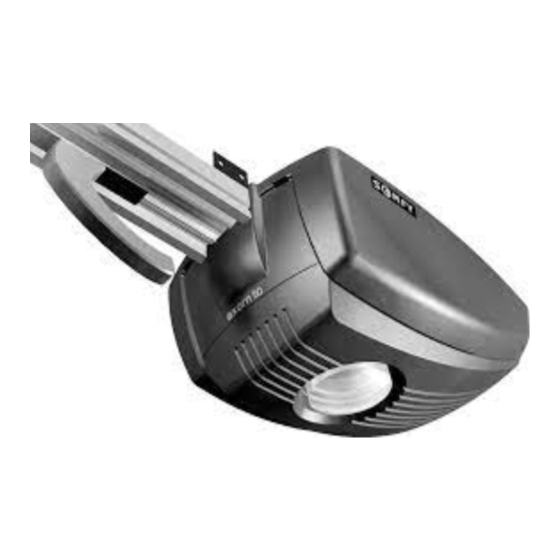

SOMFY AXORN 50 Manual

Hide thumbs Also See for AXORN 50:

Programmation tips

36mm

50mm

Assembly

AXORN 50

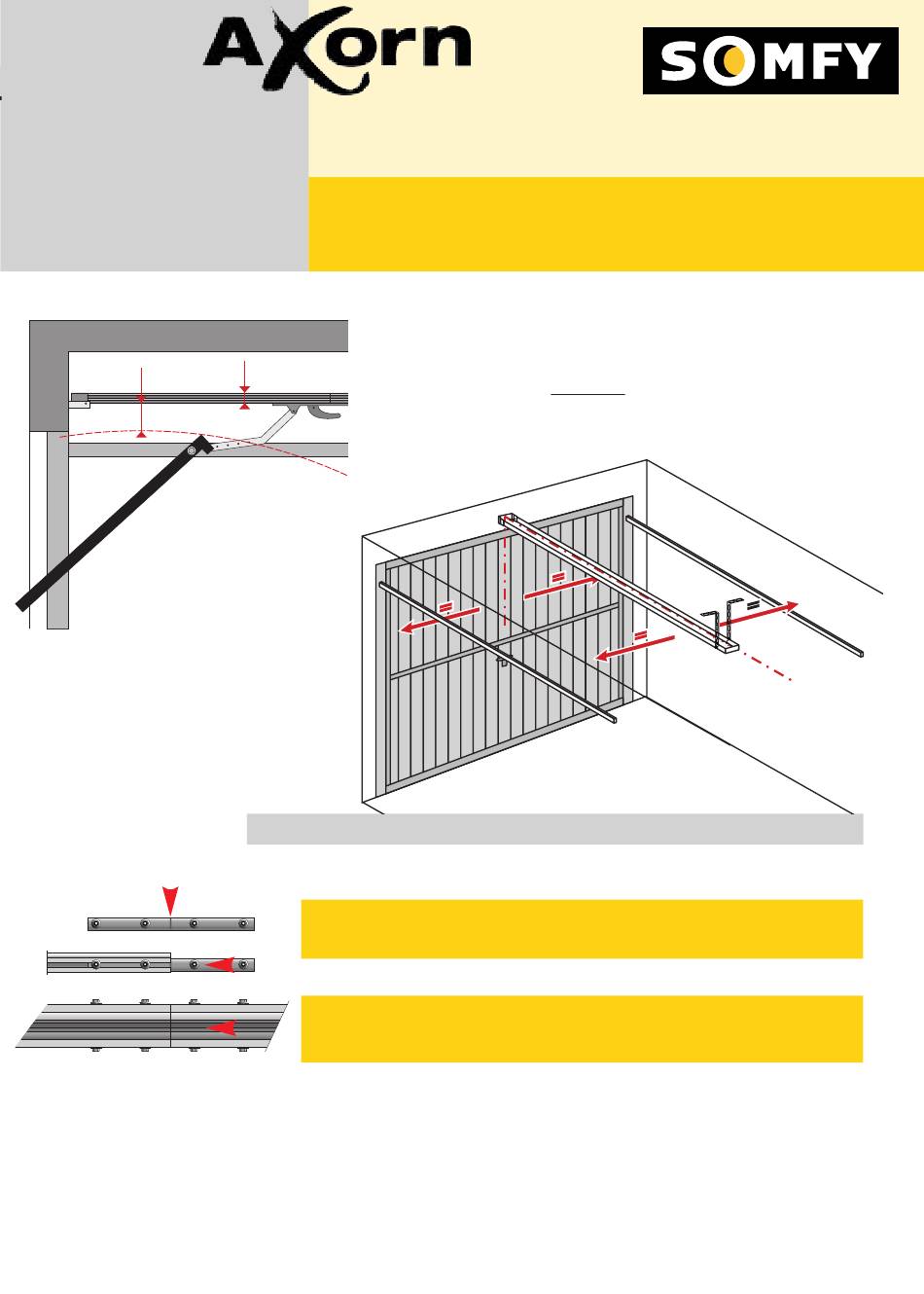

Assembly the lintel attachement lug.

Add 50 mm above the highest point on the door travel.

Centred the lug relative to the center of the door.

The rail is delivered with a chain tension that has been pre-set at the factory

Don't touch this tension.

Check that the rails join correctly. Note the marking (center)

on the assembly bars.

AXORN 70

AXORN 90

Table of Contents

Do you have a question about the AXORN 50 and is the answer not in the manual?

Page 1 ® Programmation tips AXORN 50 AXORN 70 AXORN 90 Assembly the lintel attachement lug. Add 50 mm above the highest point on the door travel. 36mm 50mm Centred the lug relative to the center of the door. Assembly The rail is delivered with a chain tension that has been pre-set at the factory Don’t touch this tension.
Page 2 Adjustment Move the trolley towards the handle by this method : Speed push-button Adjustment push-button The adjustment indicator is on when you put on the AXORN 1 sec Lock the handle Press the adjustment push button the adjustment indicator flashes. Press and hold the speed push-but- The mobile trolley moves ton (...
Page 3 Self-learning phase The garage door must be closed to make the self-learning Choice of the speed Press the speed push-button. Recommandations : Fast speed recommanded to doors in sections (light on) Slow speed recommanded to overhanging door (light off) Self learning phase Press the adjustment push-button The adjustment indicator flashes Press the remote control button...
Page 4 ® Non-binding document. products and references in this document are subject to change without prior notice. Somfy S.A.S. - Capital de 20 millions d'Euros - RCS Bonneville 303 970 230. © SOMFY 04 / 2002...

Axorn 70Axorn 90
