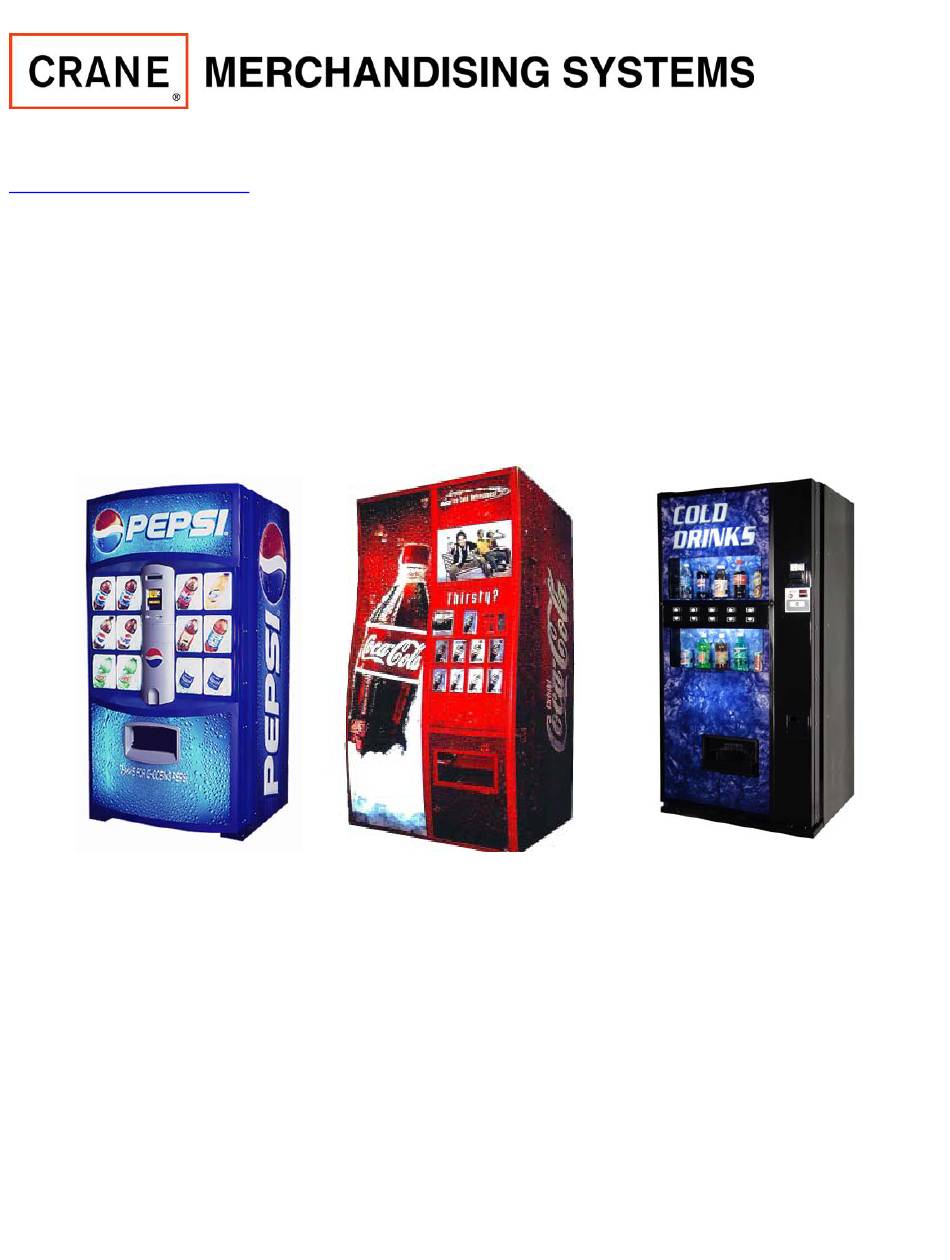

3330 Dixie-Narco Blvd.
Williston, SC 29853
www.dixienarco.com
Revised April 1, 2011

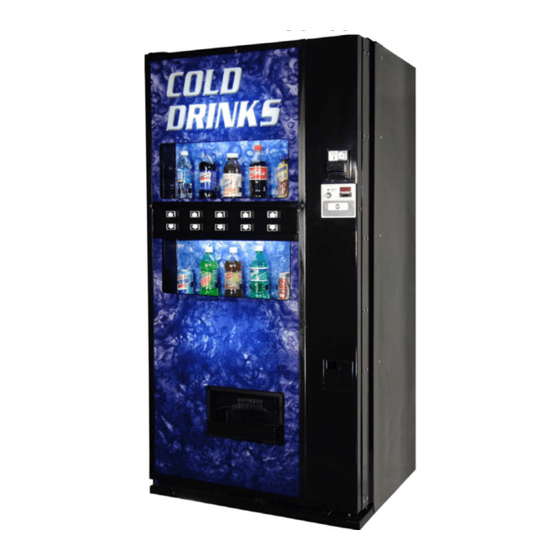

Models affected:
All Domestic P Series Model Venders Produced Beginning Production Run 6925CB and higher.
Reason:
To Provide Step-by-Step Instructions for the removal of the original Evaporator Fan Shroud Assembly and
installation of the new Evaporator Fan Shroud Assembly with the Wellington supplied Fan Motor.
• P Series Disassembly / Installation
• Narrow P Series Fan Shroud Assembly Build up
•
Evaporator Fan Replacement / Conversion Chart
Evaporator Fan Motor Sub-Assembly
Wellington Fan Motor Installation
All Domestic P Series Models
M118.2
INDEX
page 2
page 7
page 10
M118.x
1 of 11
Advertisement
Related Manuals for Crane P Series
Summary of Contents for Crane P Series
- Page 1 All Domestic P Series Models Revised April 1, 2011 Models affected: All Domestic P Series Model Venders Produced Beginning Production Run 6925CB and higher. Reason: To Provide Step-by-Step Instructions for the removal of the original Evaporator Fan Shroud Assembly and installation of the new Evaporator Fan Shroud Assembly with the Wellington supplied Fan Motor.
- Page 2 Fan Motor Installation Introduction: Read the entire instructions and verify all the parts of the kit are included before beginning installation. If you have any questions, contact your Crane Merchandising Systems Representative or the Technical Service Department before proceeding with the installation.
- Page 3 Tools Needed: #2 Phillips Screwdriver – preferably with minimum 6” shaft, Side Cutters. Note: A drill with a magnetic holder will make installation of the kit faster. Disassembly of the Sub-Assembly: 1. Open the Main Door. 2. Disconnect the Main Power Cord from the Wall Outlet or turn the illuminated Power Switch to the “OFF”...
- Page 4 10. Remove the Temperature Sensor from the Temperature Sensor Bracket in front of the Evaporator (Figure 4 marked “A”). Place to the left of the work area in front of the Evaporator. 11. With a #2 Phillips Screwdriver, remove the (2) Phillips Screw (Part# 80030431) securing the Top Evaporator Cover.
- Page 5 15. Remove the old Evaporator Fan Shroud Assembly and discard. Installation of the New Fan Shroud Assembly: Note: For Build-Up of the Narrow Fan Shroud Assembly go to Page 7. 16. Lay the New Fan Assembly in front of the vender (Figure 7). Figure 7 17.
- Page 6 24. Center the Evaporator Fan Shroud Assembly in the back of the Cabinet so it rests on the bottom of the Tank (Figure 9). Figure 9 25. With a #2 Phillips Screwdriver, secure the new Evaporator Fan Shroud Assembly with six (6) original Self Drilling Screws (Part# 80030423).
- Page 7 37. Press the Metal flap of the Tri-Teq Receiver in the Cabinet (or pull out on the Door Switch by the T- Handle of Generic Venders). This will start the Refrigeration Cycle. Check the new fan for proper operation. Building the Narrow Fan Shroud Assembly: Place the Wide Wellington Fan Shroud Assembly next to the Narrow Fan Shroud received in the kit (Figure 10).
- Page 8 With a #2 Phillips Screwdriver, remove the #2 Phillip Screw (Part# 80030428) securing the Choke (Figure 10, item H). Brown Wire Figure 11 Blue Wire 8. With the Side Cutters, cut the Plastic Cable ties. 9. Transfer the Fan, Choke, Grommet and Wiring to the Narrow Fan Shroud. Discard the original wide assembly.
- Page 9 21. Using the (2) 7 ½” Wire Ties (Part# 90190201), route the Evaporator Fan Harness as shown in Figure 13 and secure as shown. Trim the excess of the tie using Side Cutters. Figure 13 Continue with “Installation of the New Assembly:” on page 5. M118.x 9 of 11...
- Page 10 Evaporator Fan Replacement / Conversion Chart GFV, Bev 2, 3, 4 Evaporator Fans Part Number Bolt Pattern Diameter Notes Style* Replacement 80450109 9.53" Blade-5 Petals - Metal 80450109 80450128011 9.8" Blade-7 Petals - Plastic 80450128011 80450148001 9.29" Implemented in Production 8486-0480, Blade-5 Petals 80450154001 80450154001 9.29"...
- Page 11 Types of Fans M118.x 11 of 11...
