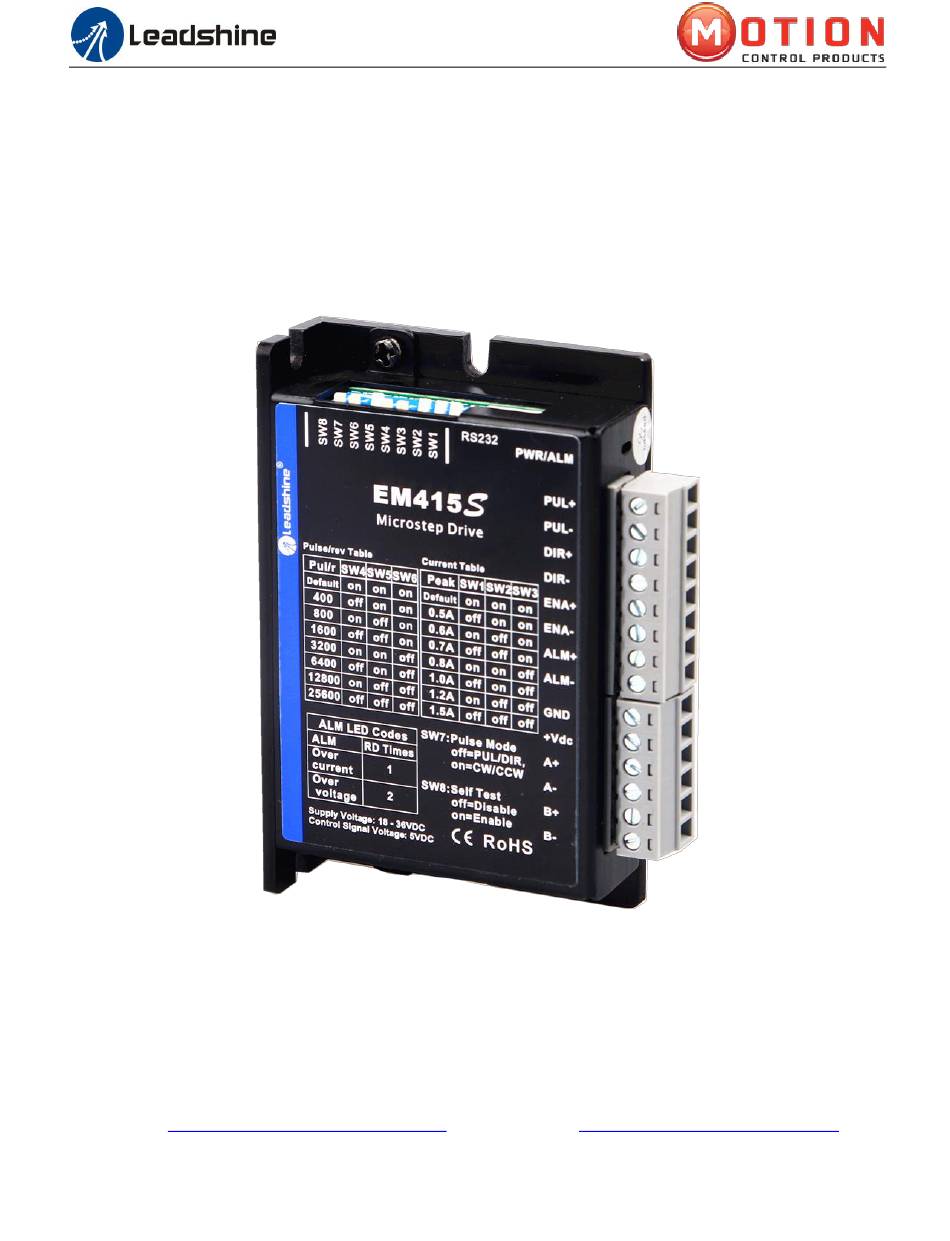

EM415S Digital Stepper Drive User Manual
User Manual
EM415S
Digital Microstepping Drive
Revision 2.0
©2019 Leadshine Technology Co., Ltd.
UK Official Distributor Address:
Motion Control Products Ltd, 11-15 Francis Avenue, Bournemouth, Dorset, BH11 8NX, United Kingdom
Tel: +44(0)1202 599922
Fax: +44 (0)1202 599955
Web:
https://www.motioncontrolproducts.com/
Sales:
enquiries@motioncontrolproducts.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Leadshine EM415S
Summary of Contents for Leadshine EM415S
- Page 1 EM415S Digital Stepper Drive User Manual User Manual EM415S Digital Microstepping Drive Revision 2.0 ©2019 Leadshine Technology Co., Ltd. UK Official Distributor Address: Motion Control Products Ltd, 11-15 Francis Avenue, Bournemouth, Dorset, BH11 8NX, United Kingdom Tel: +44(0)1202 599922 Fax: +44 (0)1202 599955 Web: https://www.motioncontrolproducts.com/...
- Page 2 Strictly adhere to the technical information regarding installation requirements. This manual is not for use or disclosure outside of Leadshine except under permission. All rights are reserved. No part of this manual shall be reproduced, stored in retrieval form, or transmitted by any means, electronic, mechanical, photocopying, recording, or otherwise without approval from Leadshine.
-
Page 3: Table Of Contents
EM415S Digital Stepper Drive User Manual Table of Contents 1.Introduction ..............................1 1.1 Features ................................1 1.2 Applications ................................. 1 2.Specifications ..............................2 2.1 Electrical Specifications............................2 2.2 Environment ................................ 2 2.3 Mechanical Specifications ............................ 2 2.4 Elimination of Heat .............................. 3 3. -
Page 4: Introduction
1.2 Applications The EM415S stepper drive is designed to power 2 phase (1.8°) or 4-phase (0.9°) NEMA 8, 11, 14 and 17 hybrid stepper motors or Permanent magnetic stepper motor (7.5° or 15°). It can be adopted in many industries (CNC machinery, electronics, medical, automation, packaging…) for applications such as 3D printer, automation machines, medical... -
Page 5: Specifications
EM415S Digital Stepper Drive User Manual 2. Specifications 2.1 Electrical Specifications Parameters Typical Unit Output Current 1.5 (1.0 RMS) Supply Voltage Logic signal current Pulse input frequency Minimal pulse width μs Minimal direction setup μs Isolation resistance MΩ 2.2 Environment... -
Page 6: Elimination Of Heat

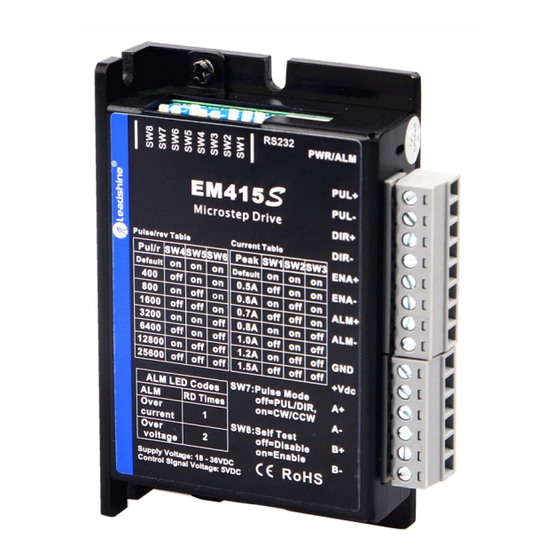

Connectors, DIP switches, and LED locations The EM415S has 5 terminal block connectors P1, P2, P3, P4 and P5, 1 DIP switch selectors S1. P1 is for control signal connections, P2 is for fault output, P3 is for power connection, P4 is for motor connection and P5 is for fine tuning. -
Page 7: P2 - Fault Output Connector
3.6 Status LED Lights There are two LED lights for EM415S. The GREEN one is the power indicator which should be always on in normal circumstance. The RED one is a drive status indication light, which will be OFF while working normally but ON and flash 1 or 2 times in a 3-second period in the case of enabled over-current or over-voltage protection. -
Page 8: Control Signal And Fault Output
Figure 6 Sourcing output 5. Stepper Motor Connections EM415S can drive 2-phase and 4-phase bipolar hybrid stepper motors with 4, 6, or 8 wires, Motion Control Products also offers easy-to-use and good-performance motors with 4-leads, ideal for running with the EM415S: https://www.motioncontrolproducts.com/electric-motors/stepper-motors/hybrid-stepper-motors/... -
Page 9: 6-Lead Motor Connection
Although setting the drive output current to 1.4 times of driven motor phase current will get the most torque, it is suggested to set an EM415S’s output current (peak of sinusoidal) to no more than 1.2 times the stepper motor’s phase current to prevent overheating. Refer to the figure 11 for how to connect an 8-lead stepper motor for parallel connection. -
Page 10: Power Supply Selection
6. Power Supply Selection EM415S is designed to power small size stepping motors (frame sizes NEMA 8 to 17) made by Leadshine or other motor manufacturers. To get optimal performances, it is important to select proper power supply type, voltage, and supply output current. -
Page 11: Micro Step Configuration (Sw4-6)
1.5A 1.06A 7.2 Micro Step Configuration (SW4-6) Each EM415S has 8 micro step settings which can be configured through DIP switch SW4, SW5, SW6. See the following table for detail. When they are set to ON, ON, ON, the microstep can be set via Leadshine ProTuner. -
Page 12: Wiring Notes
It is better to separate them by at least 10 cm; otherwise the disturbing signals generated by motor will easily disturb pulse direction signals, causing motor position error, system instability and other failures. ⚫ If only one power supply serves multiple EM415S drives, separately connecting the drives to the power supply is recommended instead of daisy-chaining. ⚫... -
Page 13: Protection Functions
11. Protection Functions EM415S incorporates are built with over-voltage and over-current error protections. When it is under error protection, the red LED light will blink for 1 or 2 or 4 times in a period of 3 seconds. If fault output connection is connected, the impedance mode between ALM+ and ALM- will be changed (See “Fault Output Configuration”... -
Page 14: Troubleshooting
EM415S Digital Stepper Drive User Manual 12. Troubleshooting In the event that your drive doesn’t operate properly, the first step is to identify whether the problem is electrical or mechanical in nature. The next step is to isolate the system component that is causing the problem. As part of this process you may have to disconnect the individual components that make up your system and verify that they operate independently. -
Page 15: Warranty
EM415S Digital Stepper Drive User Manual 13. Warranty TWELVE MONTH LIMITED WARRANTY Motion Control Products Ltd warrants its products against defects in materials and workmanship for a period of 12 months from the shipping/purchasing date. During the warranty period Motion Control Products, at their discretion, will repair or replace products that are proved to be defective.
