Insert Spring R04-Xxx Into Spring Pocket; Align Back And Insert Back Pins - Humanscale Liberty Task Replacement

Model # Operation #
All Back Pin Replacement
Process Description
back spring
Work Content -
Step Description

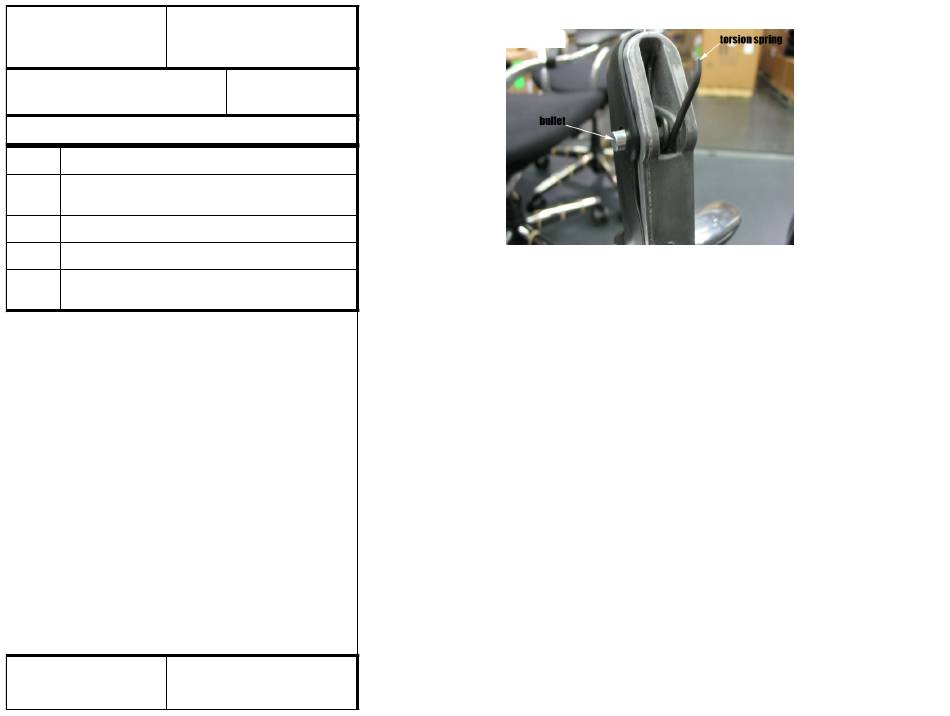

1 Insert spring R04-xxx into spring pocket and
secure with silver bullet R04-710
2 Repeat for other side.
3

Align back and insert back pins

4 Tap pins into place using a mallet as per step 3
and 4 on previous page.
Rev # Date
1 12/22/05
Page
2/2
Verify - TQC
