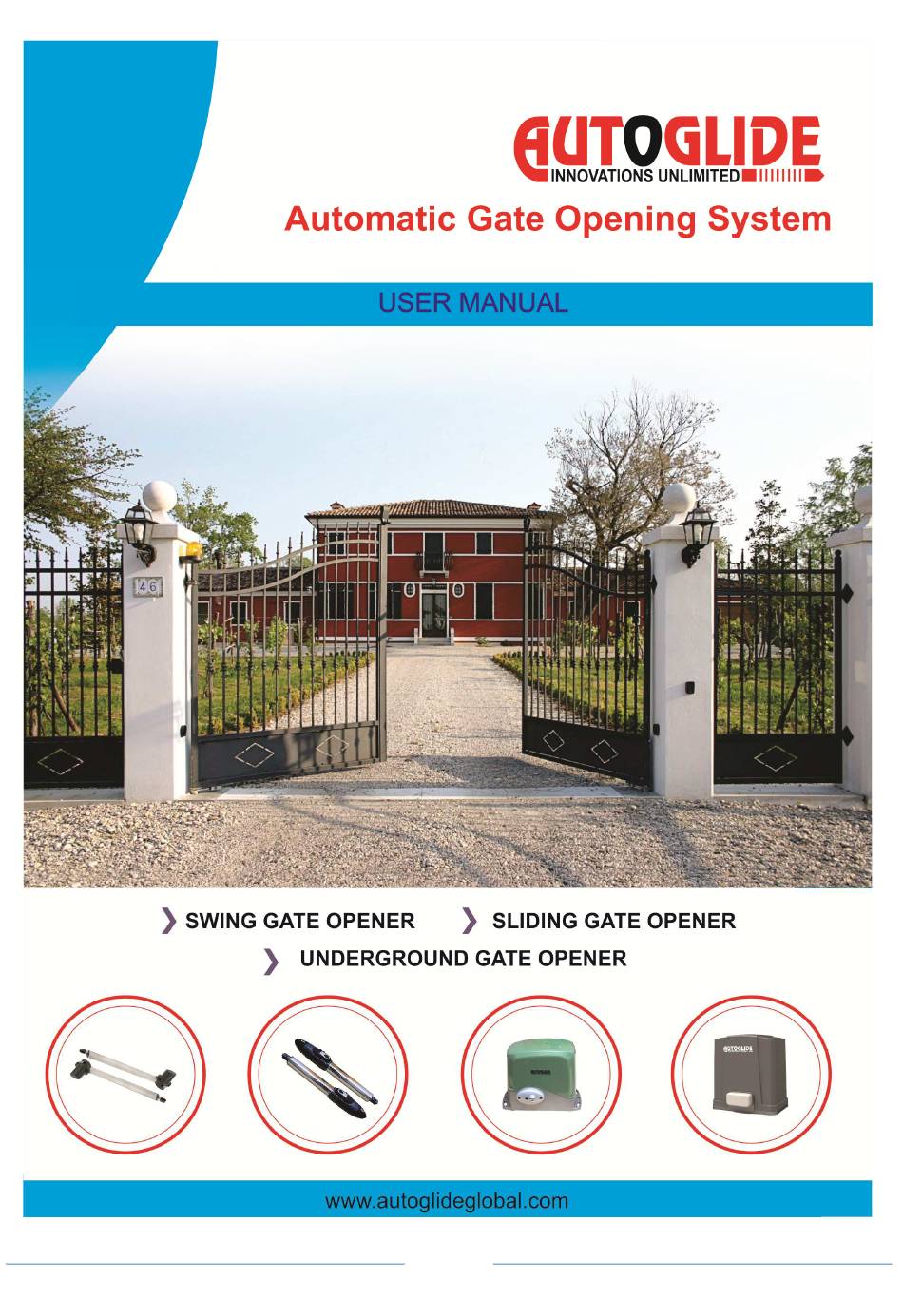

Autoglide CABRI-20P User Manual

Automatic gate opening system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INSTRUCTIONS CABRI-20P
SWING GATE OPENER
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CABRI-20P and is the answer not in the manual?

Questions and answers

Related Manuals for Autoglide CABRI-20P

Summary of Contents for Autoglide CABRI-20P

  • Page 1 INSTRUCTIONS CABRI-20P SWING GATE OPENER Page 1...
  • Page 2 Applications Sw1 Dip Switch Setting Description of the Automation. 4.1.1 Slowing Down Adjustment Description of Devices 4.1.2 Over-Current Adjustment 1.3.1 CABRI-20P Electromechanical 4.1.3 Gate Auto Close Adjustment Gear Motors 1.3.2 Control Box 4.1.4 Pedestrian Mode Adjustment 1.3.3 Photocells 4.1.5 Flashing Light Adjustment Sw2 Dip Switch Setting 1.3.4 Radio Transmitter...
  • Page 3 Keep all the components of CABRI-20P system and this manual for further consultation • Be aware of the hazards that may exist in the procedures of installation and operation of the gate-automated system.

  • Page 4: Product Description And Applications

    1. Product Description and Applications 1.1 Applications CABRI-20P is applied for residential automation of single or dual leaf gate. CABRI- 20P has to be operated with electricity and it’s forbidden to be operated by back-up batteries for normal use. Back-up batteries are only allowed for emergent operation when there is a power failure, and the gear motors can be released by special keys to move the gate manually.

  • Page 5: Control Box

    Control box consists of one control panel with incorporated receiver and one transformer. Provides the complete automation of the gear motors and other accessories of CABRI-20P kit. To connect separate terminals on the control panel and activate the gear motors and other accessories, the installation manual has to be carefully read before handling.

  • Page 6: Radio Transmitter

    (A) button is “open-stop-close mode” and (B) button is “pedestrian mode”. 1.3.5 Flashing Light Flashing light is controlled by control box and blinks when the gate is moving. The flashing light stops blinking when the gates finish opening or closing Figure 7 INSTRUCTIONS CABRI-20P SWING GATE OPENER Page 6...

  • Page 7: Installation

    2.1.1 Tools in Installing Please make sure all tools and cables are ready and conform to the industrial safety standard before installation. Please refer to Figure 9. Figure 9 INSTRUCTIONS CABRI-20P SWING GATE OPENER Page 7...

  • Page 8: Motors, Components And Its Installation In Illustration

    Please make sure to shut off the power before going installation or maintenance 2.3 Installation 2.3.1 Preparation for Motor Installation CABRI-20P is not applicable to a gate which is inefficient or unsafe, neither to solve the defects due to incorrect installation nor poor maintenance. INSTRUCTIONS CABRI-20P...
  • Page 9 Make sure the weight and dimensions of the gate conform to the operation range of CABRI-20P. Don’t use CABRI-20P if the specifications do not meet the requirements. 2). Make sure the gate structure conform to the criteria of automatic operation and force regulations.
  • Page 10 If the gate is OPENED OUTWARD, please leave at least 70mm between the post brackets and the gate. Figure 13 (Aerial View) Figure 14 (Aerial View) 10) Using the leaf-opening angle as criteria to make sure all criteria in Figure 15 can be met. Figure 15 INSTRUCTIONS CABRI-20P SWING GATE OPENER Page 10...

  • Page 11: Installation Of The Gear Motors

    8mm holes by four on the mounting surface to be installed and fasten up the brackets with screws and washers. 8. Please make sure the front plate is completely installed horizontally. INSTRUCTIONS CABRI-20P SWING GATE OPENER Page 11...
  • Page 12 Refer to Figure 20, the distance between front plate of the motor and rear plate is 798mm (CABRI-20P), the difference in height is 15.5mm (CABRI-20P). 10. Clamp and fix the motor front plate on the door temporarily Figure 20 Figure 21 11.
  • Page 13 4). Turn the release key clockwise to fix the release bar, the release bar has to be in pulled out position when you turn the release key clockwise Figure28. 5). The turning direction will be reversed for right motor INSTRUCTIONS CABRI-20P SWING GATE OPENER Page 13...

  • Page 14: Flashing Light

    7.3) Separate the flashing light cover and replace the bulb set with a new one. 7.4) Tighten the three screws (A) (B) (C) of the flashing light cover. Figure 2.3.3(5) Figure 2.3.3(6) Figure 2.3.3(7) INSTRUCTIONS CABRI-20P SWING GATE OPENER Page 14...
  • Page 15 2). Place the stopper on the ground using the bottom as reference, and mark the 3 drilling points. See Figure 2.3.5 (1) for the gate opened inward. See Figure 2.3.5 (2) for the gate opened outward. INSTRUCTIONS CABRI-20P SWING GATE OPENER Page 15...
  • Page 16 If the gate is opened outward, please change the spring inside and screw it in the different place. See Figure 2.3.5(4), Figure2.3.5(6), Figure2.3.5(7) Figure2.3.5(5), Figure 2.3.5(4) Figure 2.3.5(5) Figure 2.3.5(6) Unscrew the screws Take the casing off The location of the spring INSTRUCTIONS CABRI-20P SWING GATE OPENER Page 16...
  • Page 17 4). Connect the wires of the electric latch to the terminal LAT (+) and LAT (-) on the PCB. Figure 2.3.5(10) Figure 2.3.5(11) For the gate opened inward. For the gate opened outward INSTRUCTIONS CABRI-20P SWING GATE OPENER Page 17...
  • Page 18 AUTOGLIDE CABRI-20P 3) Control Box Control Box Installation 1. Decide the installation position of control box first, it is suggested to be installed near the gate and should be protected from possible damage. Be aware of the motor cable length before deciding the installation position.
  • Page 19 Photocell, SW3 setting as below: 3. Ph_conn1 > OFF and 4. Ph_conn2 > OFF No Photocell has been installed, SW3 setting as below: 3. Ph_conn1 > ON and 4. Ph_conn2 > ON INSTRUCTIONS CABRI-20P SWING GATE OPENER Page 19...
  • Page 20 Figure 1(4) INSTRUCTIONS CABRI-20P SWING GATE OPENER Page 20...

  • Page 21: Sw1 Dip Switch Setting

    Current (Amp) Dip Switch 2 OFF Dip Switch 3 OFF Dip Switch 2 OFF Dip Switch 3 ON Dip Switch 2 ON Dip Switch 3 OFF Dip Switch 2 ON Dip Switch 3 ON INSTRUCTIONS CABRI-20P SWING GATE OPENER Page 21...
  • Page 22 Open not allowed No effect FULLY CLOSED No effect Reload automatic closing time FULLY OPENED STOP DURING MOVING Open not allowed Reload automatic closing time CLOSING No effect Open OPENING Close No effect INSTRUCTIONS CABRI-20P SWING GATE OPENER Page 22...
  • Page 23 Close/Open delay of two leaves of gate can be adjusted from 2 to 6 seconds DIP switch Close Delay Open Delay Dip3. Delay 1 Dip4. Delay 2 2 sec 3 sec 2 sec 4 sec 3 sec 5 sec 3 sec 6 sec INSTRUCTIONS CABRI-20P SWING GATE OPENER Page 23...

  • Page 24: Led Indication

    LED 4 Photocells 2 : LED4 will be on when the second pair of the photocells are activated. LED 5 RF Indicator : LED5 will be on when RF signal is received. INSTRUCTIONS CABRI-20P SWING GATE OPENER Page 24...
  • Page 25 Wait for the learning process to be completed without any interruption. A. Dual Gate: Slave Gate Close Master Gate Close → Master Gate Open → → Slave Gate Open → Slave Gate Close → Master Gate Close INSTRUCTIONS CABRI-20P SWING GATE OPENER Page 25...

  • Page 26: Gate Operation

    (C) In gate-opening or gate-closing phase: For safety purpose, the gate stop if encountering obstacles 4.8 Advanced Operation of the transmitter (SW3 Dip1/2 Remote1 & Remote 2) INSTRUCTIONS CABRI-20P SWING GATE OPENER Page 26...

  • Page 27: Troubleshooting

    AC and battery terminals. The gear motors does not run and the relay Check if the fuse is burned. is noisy when operating the gate opening and closing INSTRUCTIONS CABRI-20P SWING GATE OPENER Page 27...

  • Page 28: Technical Characteristics

    Operating Temperature -20℃~+50℃ Dimension 799mm * 98mm * 170mm Weight 3.6kg 6.2 Control Box Application For CABRI-20P power supply Main power supply 230Vac/110Vac, 50Hz/60Hz Back-up battery 2pcs of batteries for emergency operation, 1.2A each Transformer 4.2A, 24V Receiver board 433.92MHz; 200 transmitters memory...
  • Page 29 6.5 Radio Transmitter Application Radio transmitter for remote control of CABRI-20P Frequency 433.92Mhz Coding Rolling code Buttons 2, for single-gate or dual-gate operation Power Supply 3V with one CR2032 button type lithium battery Operating Temperature -20℃~+50℃ Dimension 71.5mm * 33mm * 14mm 6.6 Electric Latch...
