AUTOGLIDE
AUTOGLIDE
Installation Manual and Owner's Guide
Installation Manual and Owner's Guide
Installation Manual and Owner's Guide
PLEASE READ THE MANUAL CAREFULLY BEFORE
PLEASE READ THE MANUAL CAREFULLY BEFORE
PLEASE READ THE MANUAL CAREFULLY BEFORE
INSTALLATION AND OPERATION
INSTALLATION AND OPERATION

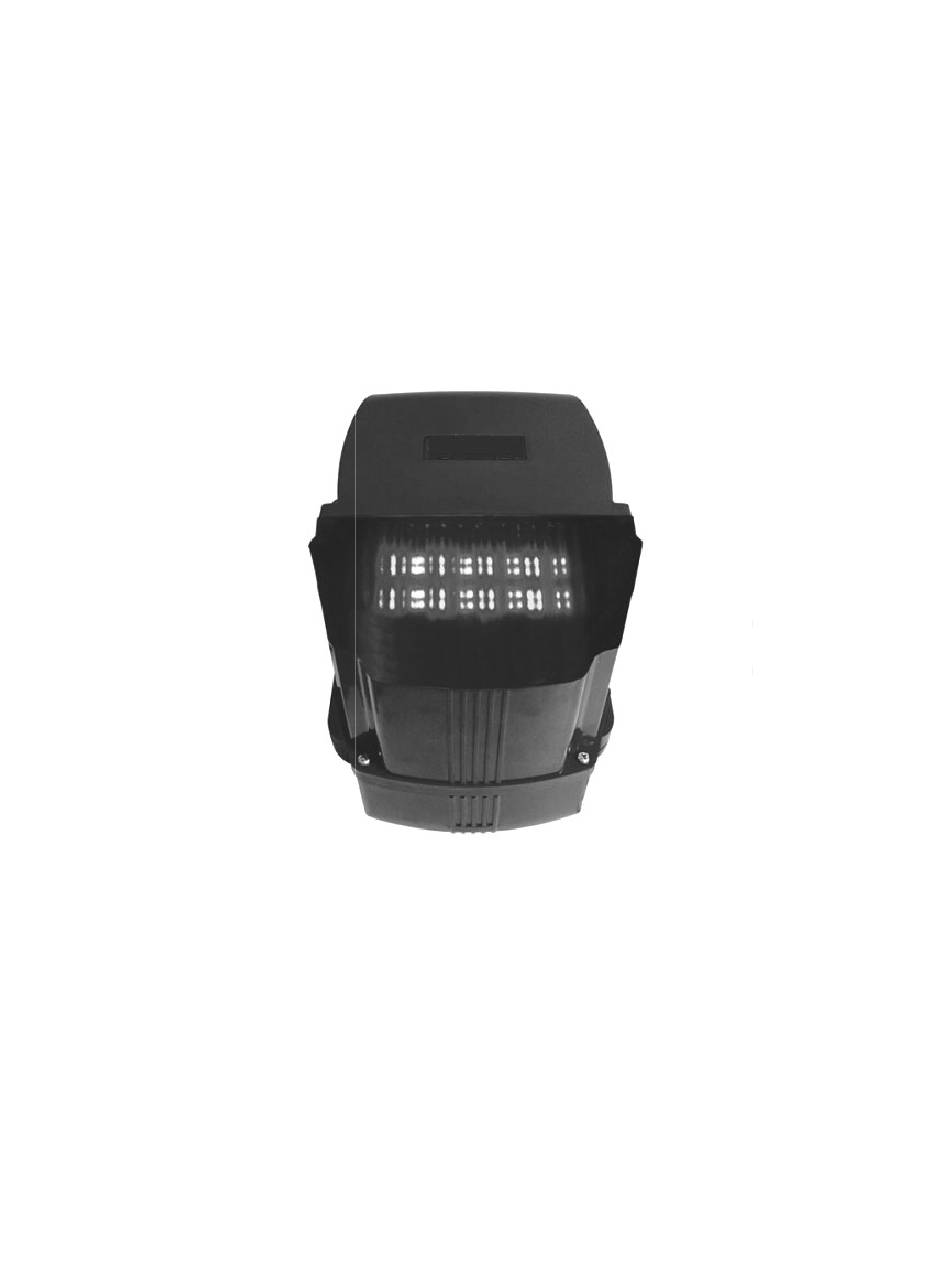

CASA 120
CASA 120-O
Advertisement
Table of Contents
Related Manuals for Autoglide CASA-120-O
Summary of Contents for Autoglide CASA-120-O
- Page 1 AUTOGLIDE AUTOGLIDE Installation Manual and Owner’s Guide Installation Manual and Owner’s Guide Installation Manual and Owner’s Guide CASA 120 CASA 120-O PLEASE READ THE MANUAL CAREFULLY BEFORE PLEASE READ THE MANUAL CAREFULLY BEFORE PLEASE READ THE MANUAL CAREFULLY BEFORE INSTALLATION AND OPERATION...
- Page 2 Safeties & Cautions: AUTOGLIDE series Remote Gate Opener need professional technician for the installation: （1）All the operations must be implemented according to the instructions this is very important to personal safety. Improper installation or misuse of the product might cause series damage to personal and property.
-
Page 3: Product Introduction
remote control as well as control panel switch. remote control as well as control panel switch. （ 16 ） If it is necessary to install a outer shield, consider that if it may shield signal of sary to install a outer shield, consider that if it may shield signal of sary to install a outer shield, consider that if it may shield signal of the remote control. -
Page 4: Technical Parameters
Fig.2 Technical parameters: Model CASA 120-O Power supply (Vac) (Vac) phase 110V/220V ～ 240V Max. gate weight (KG) Max. gate weight (KG) 1200 Max .torque .torque 35Nm Rated Power (W) Rated Power (W) 550W Tooth number of gear Tooth number of gear Overheat protection ( Overheat protection ( ) Protection Class... -
Page 5: Installation Diagram
Picture Name Quantity Quantity Bracket for limit switch Release Key Expansion Bolt(M12×100) Expansion Bolt(M12×100) Installation Diagram: Note: Before installation please check if the motor meets your demand. Note: Before installation please check if the motor meets your demand. Note: Before installation please check if the motor meets your demand. Fig.3... -
Page 6: Base Installation
Installation and Debugging: Installation and Debugging: Gear installation (Distance between gear and door body is (Distance between gear and door body is 24mm) Fig.5 Base installation ： Fig.6 Rack installation: (Remark: Please check whether the sliding gate can be mov (Remark: Please check whether the sliding gate can be moved smoothly ed smoothly before installation release the clutch with... - Page 7 Fig.8 Limit switch bracket installation: Limit switch bracket installation: Move the gate manually to the open limit and Move the gate manually to the open limit and close limit, mark the points on the rack, mark the points on the rack, then fix the magnet bracket at the limit points on the rack.
- Page 8 Fig.10 Install the electricity plug to an appropriate position according to safety standard. Install the mounting plate as fig.11. Note: ensure the base board is in horizontal. Fig.11 Fix the base plate onto the frame with four expansion bolts (Fig.11) and put the motor on the base plate, regulate the output gear to match the gear rack, then fasten the nuts.
- Page 9 Weld the cylindrical nuts for gear rack fixed on proper position in the lower part of door (Fig. 8), then fasten the gear rack onto the cylindrical nut by bolts or welding. Regulate the washer behind the base plate base to make the gear match the rack. (Note: the distance between gear and gear rack should keep1-2 mm) The limit way of this model is through electrical magnetic limit switch.
- Page 10 USER GUIDE: 6-1 User need to have a regular check whether the door is sliding smoothly, 1 User need to have a regular check whether the door is sliding smoothly, 1 User need to have a regular check whether the door is sliding smoothly, add lubrication grease on the sliding rack regularly.
- Page 11 8. Adjust slow speed for push force：adjust the force for slow stop and start. 9. Single and four keys function: Interchange of single and four keys. 10. High security: AUTOGLIDE model with remote control function, control sensitively, control long distance, strong anti-interference. Using the most advanced jump codec technology, have 100 million password groups and cannot be deciphered , is more safe and secretive than the traditional remote control (6561 password groups) in the market.
-
Page 12: Installation Steps
Installation steps: 1. Motor installation 2. Power connecting and debugging 2. Power connecting and debugging Usage of remote control: Usage of remote control: The control box can only match 30PCS remote controls, when the 31th remote The control box can only match 30PCS remote controls, when the 31th remote The control box can only match 30PCS remote controls, when the 31th remote controller is coded, the first one will invalid controller is coded, the first one will invalid... - Page 13 lock of our remote control is different from C. Remote control lock function C. Remote control lock function: the key remote control is different from lock lock, only by cut other companies. For other companies, other companies. For other companies, if the control box is locked by lock is meaningless.
-
Page 14: Motor Connection
Travel connection: Travel can choose machinery or dry reed board travel. Travel can choose machinery or dry reed board travel. PUBLIC connect to -, direction wires connect to , direction wires connect to C.L and O.L. Motor connection: Motor must installed according to the following diagram, Motor must installed according to the following diagram, motor GND line connect to COM on the circuit board, or will cause the problem of motor GND line connect to COM on the circuit board, or will cause the problem of... - Page 15 Turn on DIP 3 switch to OFF, without auto close function. Turn on DIP 3 switch to ON with auto close function. Auto close time setting: Turn on DIP3 switch and DIP6 switch to ON, Each press of F key the auto close time delay one second, when reach the demand time, return DIP6 back to OFF.
- Page 16 FORCE: adjust the strength of resistance when meet obstructions during closing or the strength of resistance when meet obstructions during closing or the strength of resistance when meet obstructions during closing or opening. adjust the starting strength during soft star adjust the starting strength during soft star.
- Page 17 repaired by self, we are out of responsibility for any loss caused by self-repair. Simply faults and debug: Ⅰ. When control box has no effective to motor, distinguish is the control box or wire fault. Judging method: through the indicator lights in the control box to judge the position of fault.
