INSTALLATION

1. Flush all water lines until water is clear before connecting faucet
to supply stops.
2. Make sure the tee shaped fitting with filter is installed on the
control module.
3. Avoid surroundings with bright lights, highly reflective surfaces
and sunlight which can affect the sensor's performance.

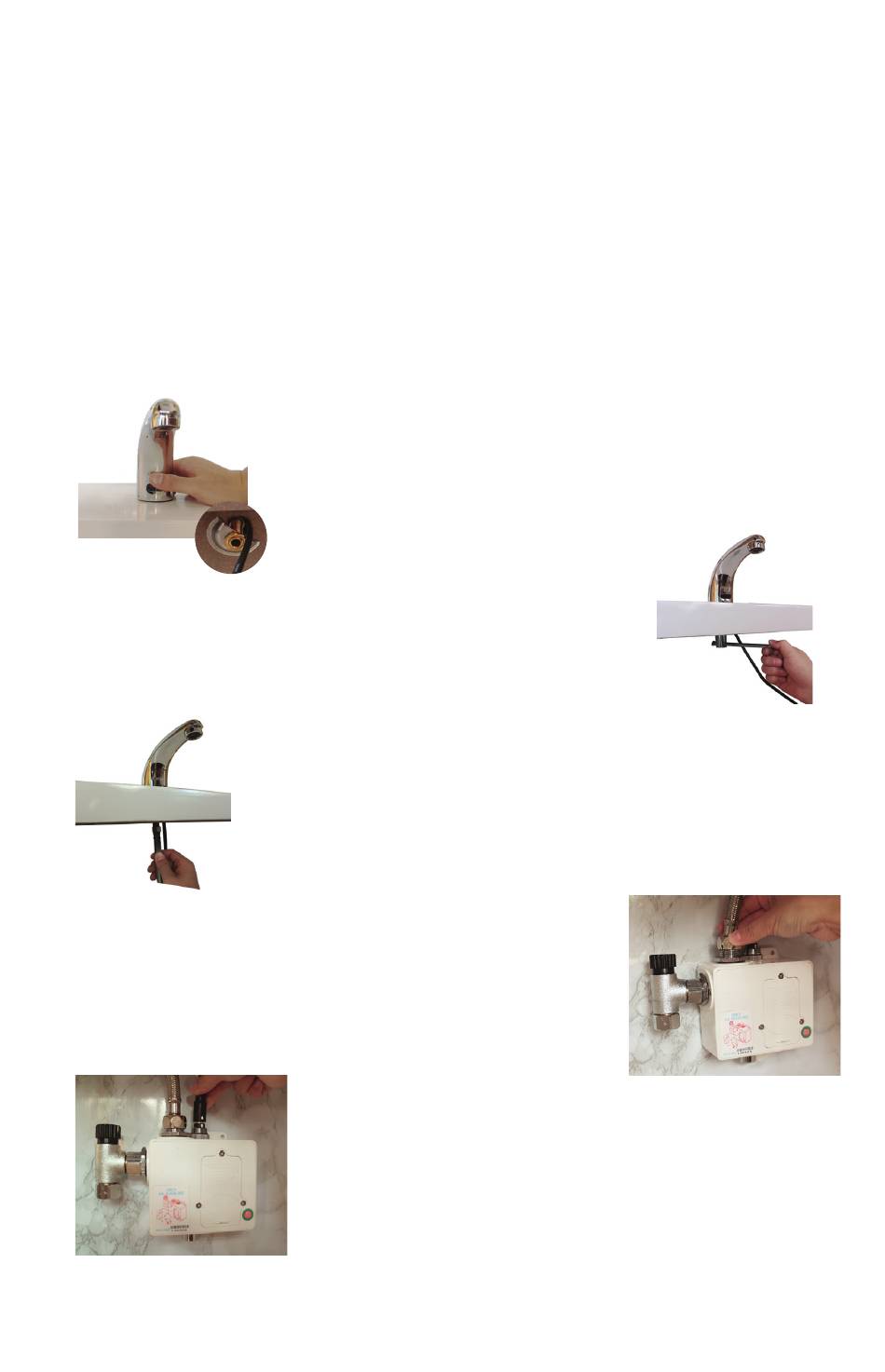

MOUNTING STEPS

Step 1
2. Secure using mounting washer and nut provided.
Step 3
4. Connect 1/2" NPSM end of hose
to control module.
Step 5
1. Insert sensor cable and inlet shank
through the base gasket and sink opening.
3. Connect 1/4" NPSM end of hose to inlet shank.
5. Align the white arrows on the sensor
cable and control module connector
and connect together.
2
Step 2
Step 4
