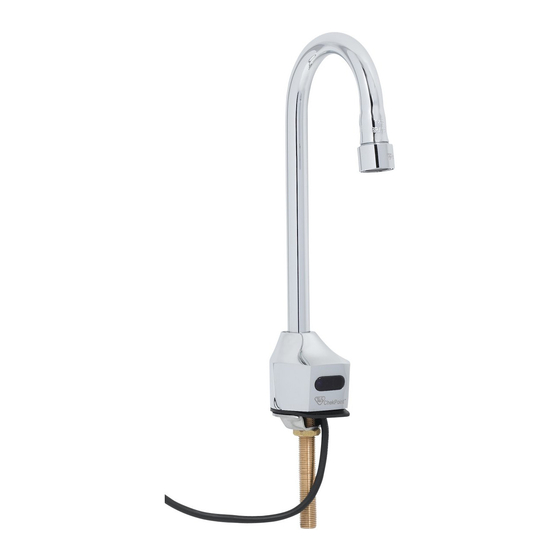

T&S ChekPoint EC-3100 Installation And Maintenance Instructions Manual
Electronic faucet deck-mount & wall-mount gooseneck, spout & 4" centerset sensor operated
Hide thumbs
Also See for ChekPoint EC-3100:
Table of Contents
Advertisement
Limited One Year Warranty
T&S warrants to the original purchaser (other
than for purposes of resale) that such product is
free from defects in material and workmanship for
a period of one (1) year from the date of purchase.
During this one-year warranty period, if the product
is found to be defective, T&S shall, at its options,
repair and/or replace it. To obtain warranty service,
products must be returned to...
T&S Brass and Bronze Works, Inc.
Attn: Warranty Repair Department
2 Saddleback Cove
Travelers Rest, SC 29690
Shipping, freight, insurance, and other
transportation charges of the product to T&S and
the return of repaired or replaced product to the
purchaser are the responsibility of the purchaser.
Repair and/or replacement shall be made within a
reasonable time after receipt by T&S of the returned
product. This warranty does not cover Items which
have received secondary fi nishing or have been
altered or modifi ed after purchase, or for defects
caused by physical abuse to or misuse of the
product, or shipment of the products.
Any express warranty not provided herein, and
any remedy for Breach of Contract which might
arise, is hereby excluded and disclaimed. Any
implied warranties of merchantability or fi tness
for a particular purpose are limited to one year in
duration. Under no circumstances shall T&S be
liable for loss of use or any special consequential
costs, expenses or damages.
Some states do not allow limitations on how
long and implied warranty lasts or the exclusion or
limitation of incidental or consequential damages,
so the above limitations or exclusions may not apply
to you. Specifi c rights under this warranty and other
rights vary from state to state.
P/N: 098-016361-45 Rev.6
Date: 04-22-14
Drawn: TEH
Checked: GEF 05-07-14
Approved: JHB 05-07-14
Installation and
Maintenance
Instructions
EC-3100
EC-3102
EC-3106
EC-3100 Series
ChekPoint
ELECTRONIC FAUCET
DECK-MOUNT & WALL-MOUNT
GOOSENECK, SPOUT & 4"
CENTERSET SENSOR
OPERATED
EC-3101
EC-3103
Advertisement
Table of Contents
Related Manuals for T&S ChekPoint EC-3100
Summary of Contents for T&S ChekPoint EC-3100
- Page 1 Installation and Maintenance Instructions Limited One Year Warranty T&S warrants to the original purchaser (other than for purposes of resale) that such product is free from defects in material and workmanship for a period of one (1) year from the date of purchase. EC-3100 During this one-year warranty period, if the product is found to be defective, T&S shall, at its options,...
-
Page 2: Exploded View
Exploded View EC-3100... - Page 3 Exploded View EC-3101...
- Page 4 Exploded View EC-3102...
- Page 5 Exploded View EC-3103...
- Page 6 Exploded View EC-3106...
- Page 7 Part Number Guide EC-3100 & EC-3101 Electronic Faucets Aerator, Vandal Resistant B-0199-06 Adapter for Non-Splash Aerator 044A O-Ring 006575-45 Angled Sensor w/ Cable 017195-45 Inlet Hose for use with EC-3100 1/2” NPSM-F x 1/4” NPSM-F x 18” Long 016297-45 Inlet Hose for use with EC-3101 1/2”...
-
Page 8: Prior To Installation
General Instructions Important: · Provide electrical receptacle within approximately 6’ from sink for plug-in · ALL ELECTRICAL WIRING IS TO BE transformer — 120 VAC, 2 amp service INSTALLED IN ACCORDANCE WITH for each plug-in transformer used. NATIONAL/LOCAL CODES AND REGULA- ·... - Page 9 General Instructions Installation of ChekPoint Faucets The T&S ChekPoint Sensor Operated Faucet is a pre-tempered faucet. A mixing valve (supplied) must be used in conjunction with the faucet. Water temperature can be controlled by adjusting the mixing valve. Install Faucet Assembly (Figures 2A, 2B, 2C and 2D) TO MOUNT ON A SURFACE UP TO 1”...
- Page 10 General Instructions OPTIONAL ANTI-ROTATION OPTIONAL ANTI-ROTATION FEATURE FEATURE Wall-Mount Model: EC-3101 Deck-Mount Models: EC-3100 & EC-3102 (Figure 2D) (Figure 2E) Note: The anti-rotation feature uses a set screw to anchor the faucet in the vertical Note: The anti-rotation feature uses a pin position and is intended for use ONLY on to anchor the faucet in position and is stainless steel sinks.
- Page 11 General Instructions Install Mixing Valve Assembly (Figure 3) Figure 3 (If supplied separately) Install mixing valve into fi tting on control module as shown in Figure 3. Tighten fi tting snugly BUT DO NOT OVERTIGHTEN. No thread sealant is necessary. Important: Orient mixing valve as shown in Figure 3.
-
Page 12: Battery Option
General Instructions Figure 5 TRANSFORMER OPTION (Figure 5) Important: DO NOT plug Transformer into receptacle until all wiring has been completed. This type of Transformer is designed to be plugged into a 120 VAC wall receptacle. The Transformer is supplied with a 6 foot Cable. Remove the rubber plug from the transformer connector on the control module. -
Page 13: Operation
General Instructions OPERATION 1. Place hands under spout. Water will fl ow for as long as the user’s hands remain within sensor range and will shut off after 15 seconds (time adjustable). 2. Keep electronic eye cover clean. 3. Red fl ashing in the electronic eye indication low batteries. (Replacement batteries: Alkaline AA.) 4. - Page 14 General Instructions EC-3106 (MANUAL/AUTO OPERATION) The EC-3106 model has the ability to be switched from the sensor mode to a manual mode. The manual mode can be used if a constant fl ow of water is needed for an extended period of time (e.g. the unit loses power, etc.). To switch from sensor to manual mode, press the red button behind the unit toward the top and turn counterclockwise 180°...
- Page 15 General Instructions FEATURES AUTO-ADJUSTMENT SCAN PERIOD • Two scan periods of 0.4 seconds or 0.7 seconds are automatically adjusted. The scan period at 0.4 seconds occurs while the faucet is at standby. The scan pe- riod will change to 0.7 seconds when the faucet detects an object in the front of the sensor.
- Page 16 General Instructions LOW BATTERY DETECTION • A red fl ashing light in the electronic eye indicates low batteries. • A solid red light in the electronic eye and no water fl ow indicates the batteries are dead. • The user should change new batteries immediately. POWER SAVING •...
- Page 17 General Instructions Q&A Q: Can I operate the faucet manually, without using the electronic eye? A: Yes. Press the on/off button and water will start fl owing. To turn water off , press on/off button again. If you forget to turn the water off , the faucet will automatically turn it off after 60 seconds.
-
Page 18: Troubleshooting Guide
General Instructions TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE/SOLUTION No Water When Activated If red LED stays on or is fl ashing: Red LED in electronic eye 1. Replace batteries and/or make sure transformer is plugged in 2. If appropriate action from no. 1 does not correct problem: •... - Page 19 RELATED T&S BRASS PRODUCT LINE T&S BRASS AND BRONZE WORKS, INC. A fi rm commitment to application-engineered plumbing products 2 Saddleback Cove, P.O. Box 1088, T & S Brass-Europe Travelers Rest, SC 29690 ‘De Veenhoeve’ Phone: (864) 834-4102 Oude Nieuwveenseweg 84 Fax: (864) 834-3518 2441 CW Nieuwveen...
-
Page 20: Installation And Maintenance Instructions
Installation and Maintenance Instructions Limited One Year Warranty T&S warrants to the original purchaser (other than for purposes of resale) that such product is free from defects in material and workmanship for a period of one (1) year from the date of purchase. During this one-year warranty period, if the product is found to be defective, T&S shall, at its options, repair and/or replace it. -
Page 21: Exploded View
Exploded View B-2740 Side Mount Mixer Assembly Gooseneck Assembly for B-2741, B-2742 & B-2746 * Some items are listed for instructional purposes and may not be sold as separate parts. - Page 22 Exploded View Gooseneck Assembly for B-2743, B-2744 & B-2749 * Some items are listed for instructional purposes and may not be sold as separate parts.
- Page 23 Part Number Guide B-2740 Side Mount Mixer Assembly Body Base w/ Supply Lines & Outlet Handle Kit 013113-45 Cartridge 013080-45 Index, Temperature 014173-45 D Trim Ring 016661-45 Locking Nut 016663-45 Inlet & Outlet Hose 013537-45 Set Screw 016675-45 Deck Mounting Ring Deck Mounting Ring O-Ring 4 Threaded Locking Rod Brass Lock Nut...
- Page 24 General Instructions Note: An adjustable wrench may be used instead of an open end wrench. Installation of Side Mount Mixer (No.1) B-2740 1. Shut off water supply and drain lines. Drill a hole approximately 1-1/2” diameter in countertop where installing no.1 (side mount body). 2.
- Page 25 General Instructions Installation of Gooseneck w/ Side Spray Assembly, Included in B-2743, B-2744 & B-2749 Assemblies: 1. With water supply and drain lines shut off from step 1 in Installation of Gooseneck Assembly, drill a 7/8” diameter hole in countertop where no.8 (center body assembly) is to be installed.
- Page 26 RELATED T&S BRASS PRODUCT LINE B-2710 Single Lever Faucet B-2711 Single Lever Faucet with Pop-Up Drain Assembly B-2730 B-2731 Single Lever Mixing Single Lever Mixing Faucet with Sidespray Faucet less Sidespray T&S BRASS AND BRONZE WORKS, INC. A fi rm commitment to application-engineered plumbing products 2 Saddleback Cove, P.O.
-
Page 27: Tools Needed
EC-TMV & 5EF-TMV Thermostatic Mixing Valve Installation Instructions Models EC-TMV and 5EF-TMV are a direct replacement Thermostatic Mixing Valve (TMV) for the Mechanical Mixing Valve used on ChekPoint (EC) and Equip (5EF) Electronic Faucets. These TMV’s are tested and certifi ed to ASSE 1070. These TMV’s will control and limit the temperature of tempered water to the faucet. - Page 28 3. Turn the knob to adjust the outlet water temperature to the desired comfort. It is recommended that the outlet temperature does not exceed 118˚F (48˚C) to reduce the risk of scalding. To decrease the temperature, turn the knob so more blue is seen on the color band. To increase temperature, turn the knob so more red is seen on the color band.
- Page 29 EC-HYDROGEN Installation Instructions For ChekPoint Models with Below Deck Temperature Mixing Valves Hydro Generator 1/2” NPSM Swivel Coupling NOTE: If installing to an existing ChekPoint faucet which is in use, shutoff the NOTE: If installing to an existing ChekPoint faucet which is in use, shutoff the water at the supply stops and unplug and disconnect the power supplies (the water at the supply stops and unplug and disconnect the power supplies (the plug-in wall transformer) and disconnect any external power sources to the...
- Page 30 SENSOR RANGE SETUP 1. AF-serial sensor range can only be set by using the on/off button situated on the bottom right corner of the control box. Do not attempt to open control box. 2. Push and hold the on/off button for 5-7 seconds. Water fl ow will stop and the red LED light inside the electronic eye will blink on.
- Page 31 Limited One Year Warranty T&S warrants to the original purchaser (other than for purposes of resale) that such product is free from defects in material and workmanship for a period of one (1) year from the date of purchase. During this one-year warranty period, if the product is found to be defective, T&S shall, at its options, repair and/or replace it.
