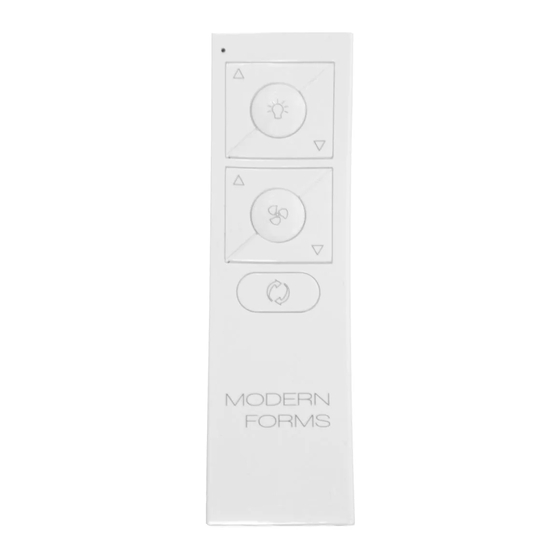

Modern Forms F-RC-WT Operating Instructions

OPERATION INSTRUCTIONS
Package Contents
Screws
Remote Wall Cradle
1
Pairing
To pair your remote control:
1. Power cycle your fan by removing power to the circuit for
10 seconds and then re-enable power.
2. Press and hold
for 10-15 seconds.
3. The LED will blink green then remain solid green.
4. The green LED along with audible beeps will indicate
that pairing is successful.
5. Test remote control using the steps in section 2.
F-RC-WT
SMART
FIG.1
COMPATIBLE WITH
NOTE: A maximum of 2 fans can be operated using the
remote control.
Remote Control Operation
2
Remote Control Button Functions
CR2032
CR2032
FIG.2
Batteries
NOTE: Your fan features 6 speeds. An audible tone will indicate
when the speed is increased or decreased. When the fan has
reached the minimum/maximum speed level the audible
indication will stop.
and buttons on remote control
Press and Hold
button: Turns the light ON or OFF.
Press or hold to increase the light level.
Press or hold to decrease the light level.
button: Turns the fan ON or OFF.
Press or hold the button to increase fan speed.
Press or hold the button to decrease fan speed.
button: Switch between Summer and Winter Mode.
SUMMER MODE (Counter-Clockwise):
A downward airflow creates a cooling
effect (FIG. 3). This allows you to set
your air conditioner on a warmer
setting without affecting your comfort.
FIG.3
WINTER MODE (Clockwise):
An upward airflow moves
warm air off the ceiling area and
re-distributes the warm air that hovers
around the ceiling to the living space.
This should allow for savings on
FIG.4
heating costs (FIG. 4).
NOTE: To operate the reverse button on your fan,
press the button while the fan is running
3
Unpairing
NOTE: Unpairing must be completed within 3 minutes
of turning the power on to the fan receiver.
1. When you re-engage power to the fans you
want to unpair, press and hold the
buttons for 4 seconds.
2. The LED will alternate red/green, blink green, and the
receiver will beep to indicate that unpairing is successful.
FIG.5
Press and Hold
and
