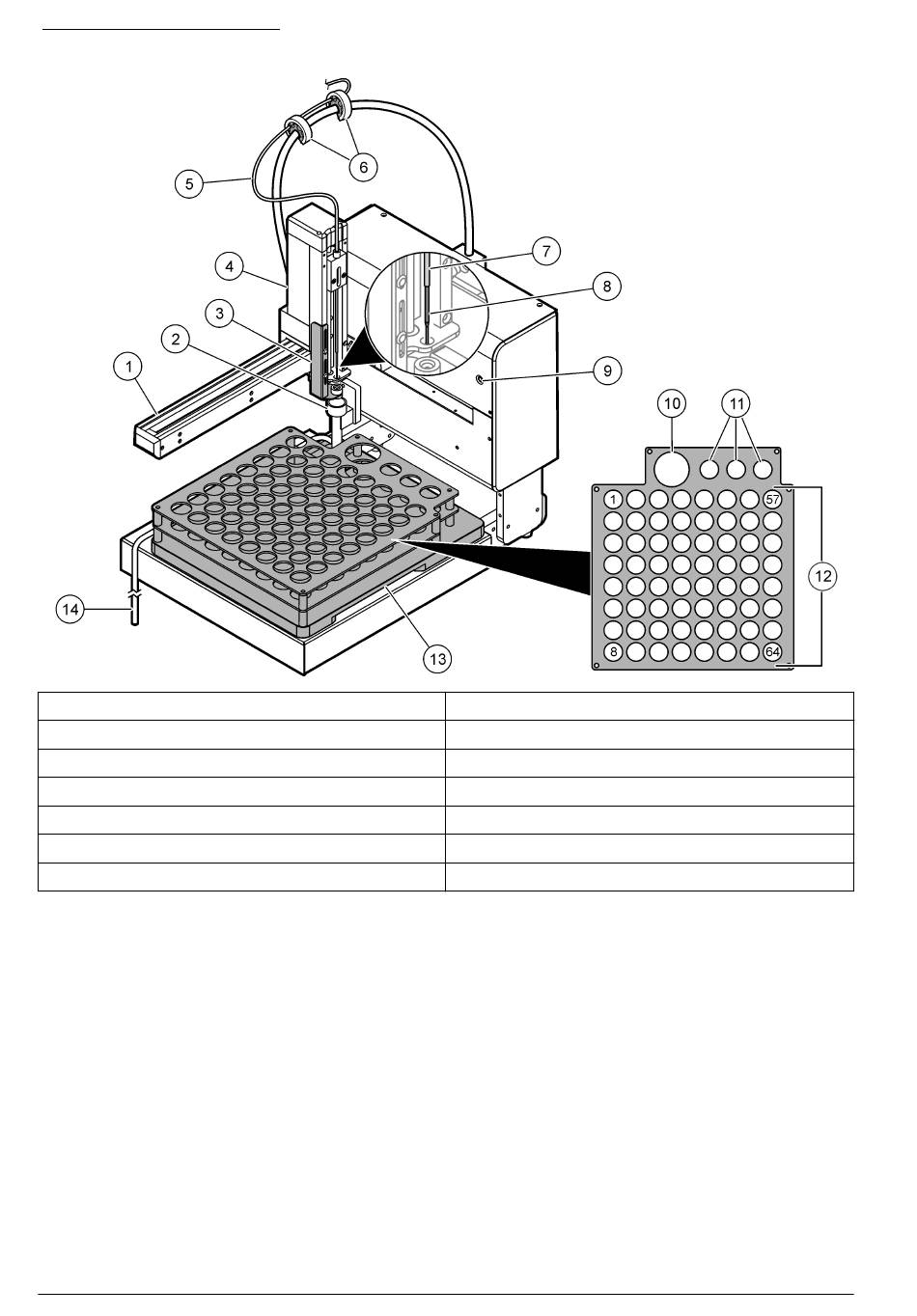

Figure 1 Product overview
1 Arm
2 Rinse station
3 Stripper plate
4 Mechanical Z-drive
5 Sample tube (from the analyzer)
6 Tube holders
7 Needle sleeve
6 English
8 Sample probe
9 Power indicator light
10 Calibration standard holder
11 System suitability holders
12 Sample positions (1 to 64)
13 Sample tray
14 Rinse station drain tube
