If the lifetime of either the Deuterium bulb or the Halogen bulb is reached or if one bulb is broken you

can replace the bulbs. Both bulbs are arranged in one housing so the bulbs cannot be changed separately.

To order replacement bulbs for the DH-mini, see

►

Procedure

To replace the bulbs,

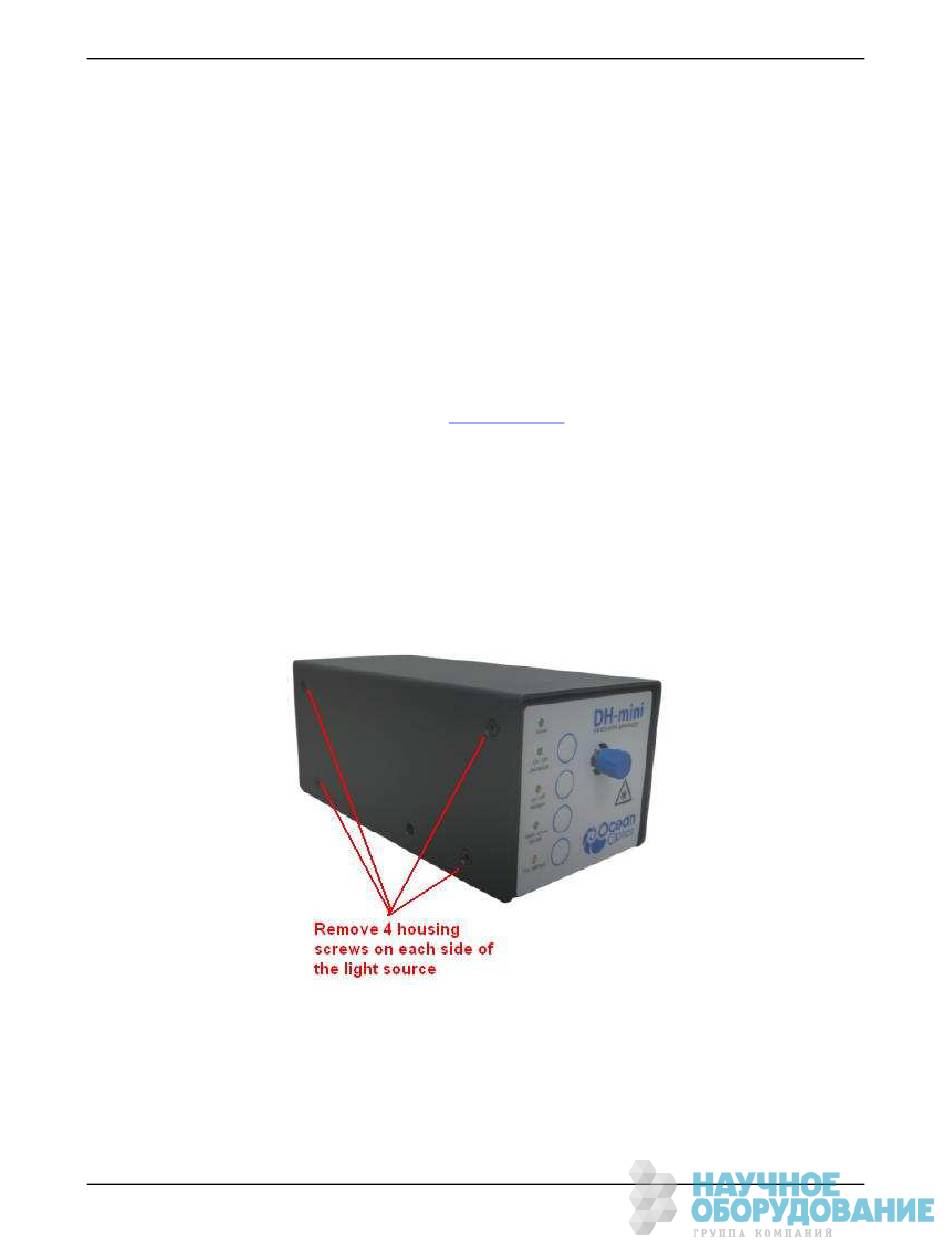

1. Remove all eight countersunk screws on each side of the light source housing with the provided

Hexagonal socket screw key SW 2.0.

2. Lift the housing off of the light source.

3. To remove the bulb, disconnect the cable at the rear side of the lamp first (1). Then use the

provided Hexagonal socket screw key SW 1.5 to loosen the stud screw (2).

000-10000-200-02-201510

Bulb Replacement

Spectral Output

Appendix B
