1: Setup

DH-mini Light Source

Power supply – 12 Vdc @ max. 1500 mA

Hexagonal socket screw key SW 2.0

Hexagonal socket screw key SW 1.5

TTL adapter cable 4-way Binder plug to DB-15 connector

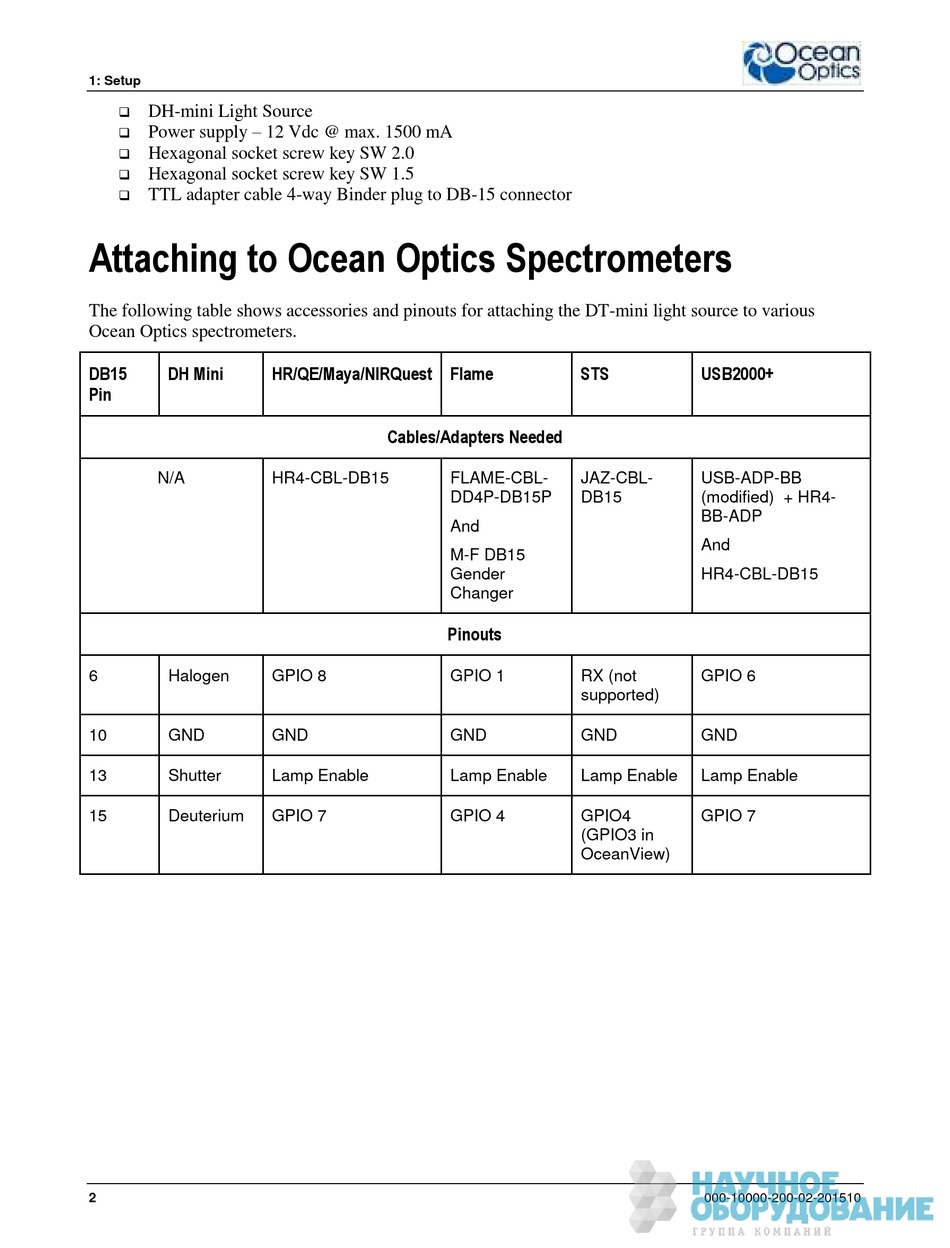

Attaching to Ocean Optics Spectrometers

The following table shows accessories and pinouts for attaching the DT-mini light source to various
Ocean Optics spectrometers.
DB15 DH Mini
Pin
N/A
6 Halogen
10 GND
13 Shutter
15 Deuterium
2
HR/QE/Maya/NIRQuest Flame
Cables/Adapters Needed
HR4-CBL-DB15 FLAME-CBL-
DD4P-DB15P
And
M-F DB15
Gender
Changer
Pinouts
GPIO 8 GPIO 1
GND GND
Lamp Enable Lamp Enable
GPIO 7 GPIO 4
STS USB2000+
JAZ-CBL- USB-ADP-BB
DB15 (modified) + HR4-
BB-ADP
And
HR4-CBL-DB15
RX (not GPIO 6
supported)
GND GND
Lamp Enable Lamp Enable
GPIO4 GPIO 7
(GPIO3 in
OceanView)
000-10000-200-02-201510
