2.0 Application
2.1
The FallTech 4-Person Temporary HLL provides horizontal mobility for workers exposed to fall hazards and is designed as an anchorage
subsystem for the attachment of up to four PFASs. The HLL is adjustable up to 100' in length for a single span system and is
designed to be used as part of a complete PFAS. See Figure 1.
A Carabiner
B 4-Person HLL Rope
C O-Rings x4
D Tensioner
E Energy Absorber
When properly tensioned, the lifeline will react to a fall event of up to four workers by combining the energy absorbing properties of the
lifeline energy absorber, the lifeline, and the worker's personal energy absorber. During a fall event, the the stretch of the lifeline and the
expansion of the user's PFAS will result in reduced forces to the anchor and to the user's body.
2.2 Application Limits: The FallTech 4-Person Temporary HLL is a dynamic anchorage subsystem that will vary in its performance depending
upon the length of the system, the number of workers attached and the type of PFAS being used. Care should be taken to understand the
capacity of the system, minimum required fall clearance, anchorage strength requirements, total allowable free fall, total allowable
fall clearance, and how the user's PFAS will deploy during a fall event. Longer HLL spans will generate more lifeline deflection and sag
during a fall event and will result in greater clearance requirements. See Figure 2.
B
C
G
D
E
F
A Deployed In-Line Energy Absorber
B Dynamic Lifeline Sag
C Deployed EAL
D D-ring Shift and Harness Stretch
* If SRD Deceleration Distance is unknown in overhead applications, use 2 feet for ANSI Z359.14
Class A SRDs or use 4-1/2 feet for ANSI Z359.14 Class B SRDs.
MHLL05 Rev A

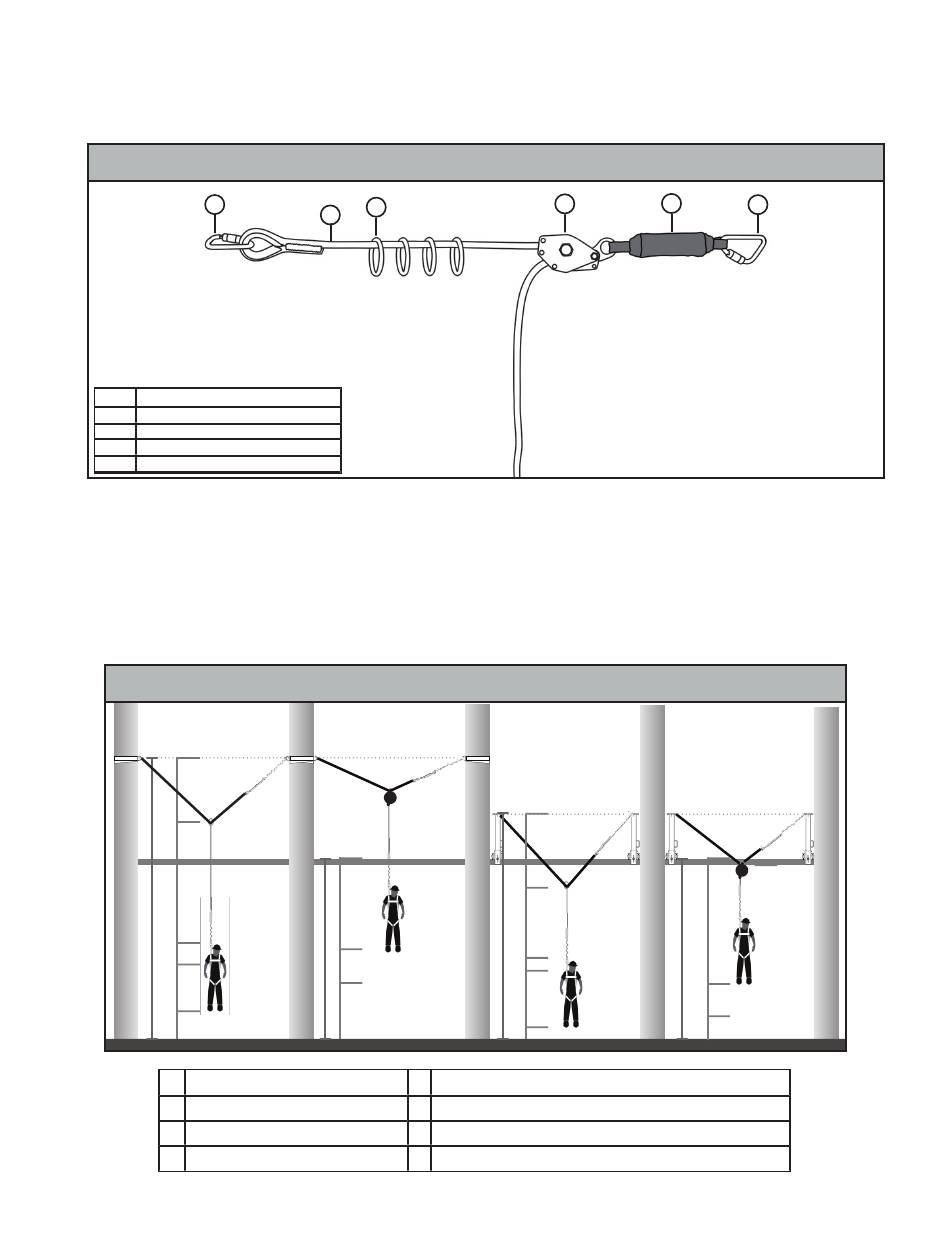

Figure 1 - About the 4-Person Temporary HLL
A
C
B
Figure 2 - Clearance Requirements
A
B
D
H
G
F
D
A
B
C
G
D
E
F
E Height of Worker
F Safety Factor
G Total Required Fall Clearance
H Total SRD Deceleration Distance from User's Manual*
