Verifone Vx520
Terminal Setup Guide
8/5/2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VX 520 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VeriFone VX 520

Summary of Contents for VeriFone VX 520

  • Page 1 Verifone Vx520 Terminal Setup Guide 8/5/2019...

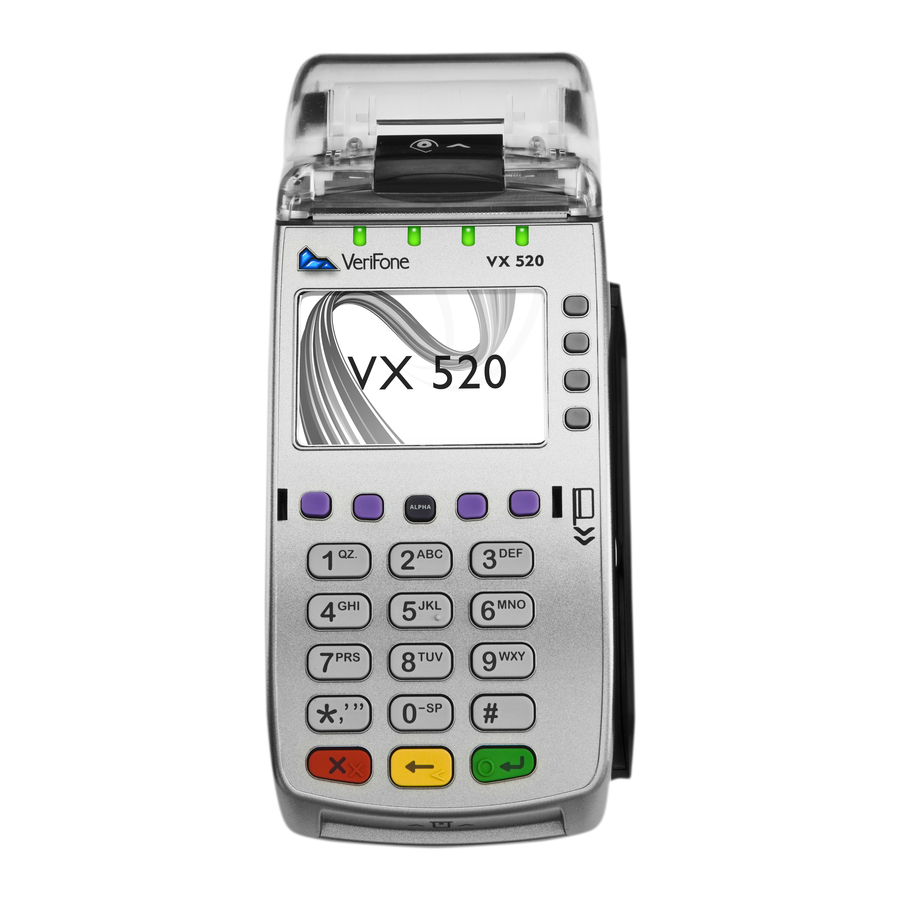

  • Page 2 In the Box The Verifone VX 520 terminal comes with a power adapter, phone cable, and a roll of thermal paper. Connecting the Terminal Before anything else, connect the VX 520 via ethernet (LAN) or phone line. The terminal requires either an internet or phone connection to be able to run transactions and communicate with the processor.
  • Page 3 2. Connect an ethernet cable to the ETH port and / or a phone line to the telephone port. 3. Plug the other end of the ethernet cable into an open port on the router / modem. If you are using a telephone line, connect the other end of the phone cable to a wall jack preferably not shared with another device.
  • Page 4 6. Replace the terminal’s back cover. 7. When the terminal displays COMMSERVER and SOFTPAY-FDMS press the F3 button to get to the main menu.
  • Page 5 Load the Paper 1. Lift the latch to open the printer cover. 2. Drop the paper into the tray with the leading edge feeding down from the bottom of the roll.
  • Page 6 3. Close the cover on the paper and be sure to have some sticking out from under the cover. Your terminal is now ready to take transactions.
