Whirlpool WGT3300SQ1 Parts List page 14

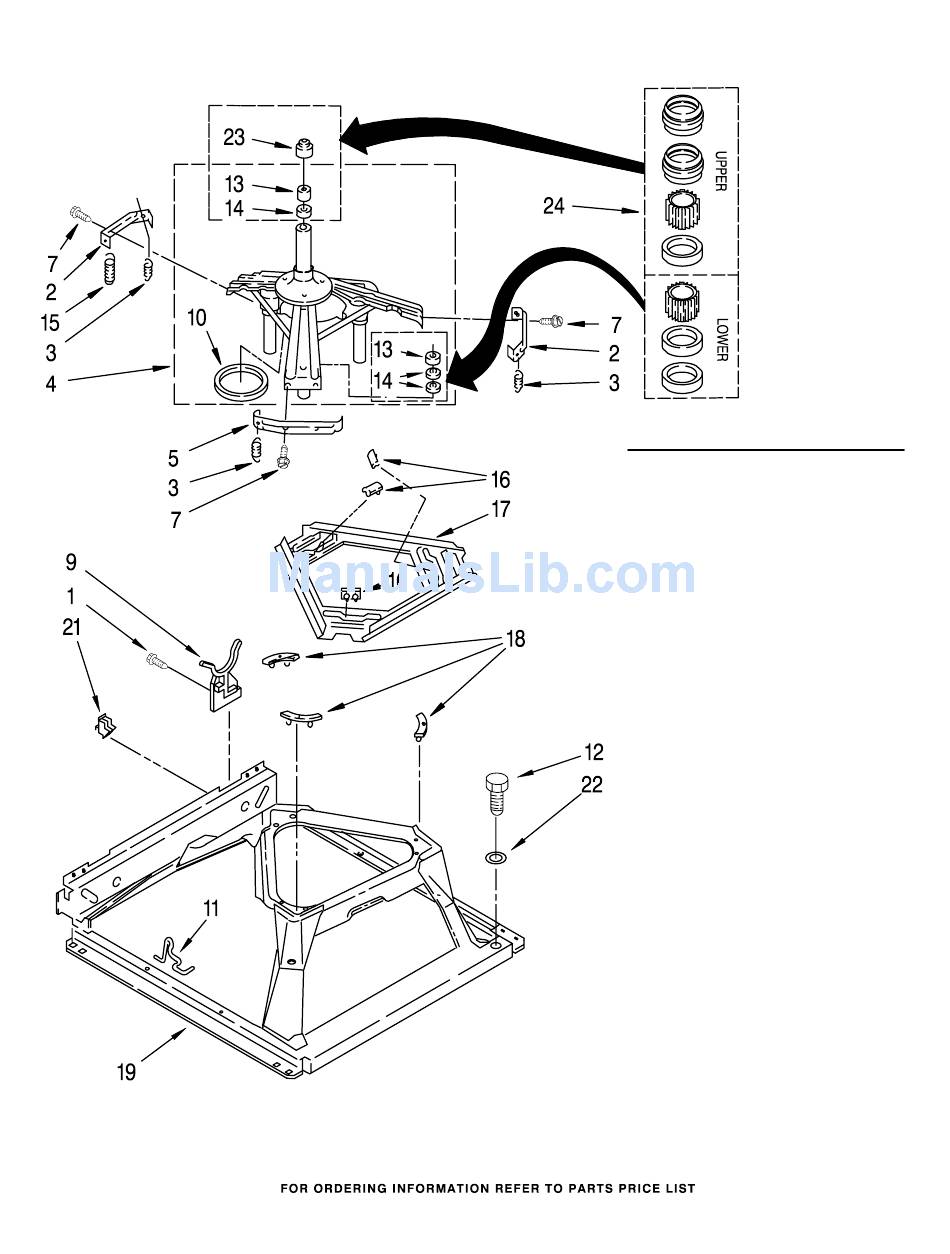

MACHINE BASE PARTS
For Model: WGT3300SQ1
(Designer White)
14
Illus. Part
No. No. DESCRIPTION
1 343641 Screw, Bracket
Mounting
(10−16 x 1/2)
2 64067 Bracket, Spring
Outer (2)
3 63907 Spring,
Suspension (3)
4 8575214 Support & Brake,
Tub
5 64065 Bracket, Spring
Outer (L.F.)
7 3400076 Screw, 10−32 x 5/8
9 3350506 Retainer, Hose
10 63134 Ring, Sound
Deadening
11 63806 Retainer,
Suspension Spring
12 3400501 Screw,
Shoulder (2)
13 8546455 Bearing,
Centerpost (2)
14 357409 Seal,
Centerpost (3)
15 388492 Spring,
Counterweight
16 62568 Pad, Plate
17 3946509 Plate, Suspension
(Includes Illus. 16)
18 3363660 Pad, Base
19 3349343 Base Assembly
(Includes
Illus. 11 & 18)
21 3349749 Restrainer, Base
22 3349340 Washer (2)
23 8577376 Seal, Centerpost
24 285203 Centerpost
Bearing Kit
(Includes Illus.
13, 14 & 23)
W10143421
