Summary of Contents for GreenWorks Pro 2608402CO

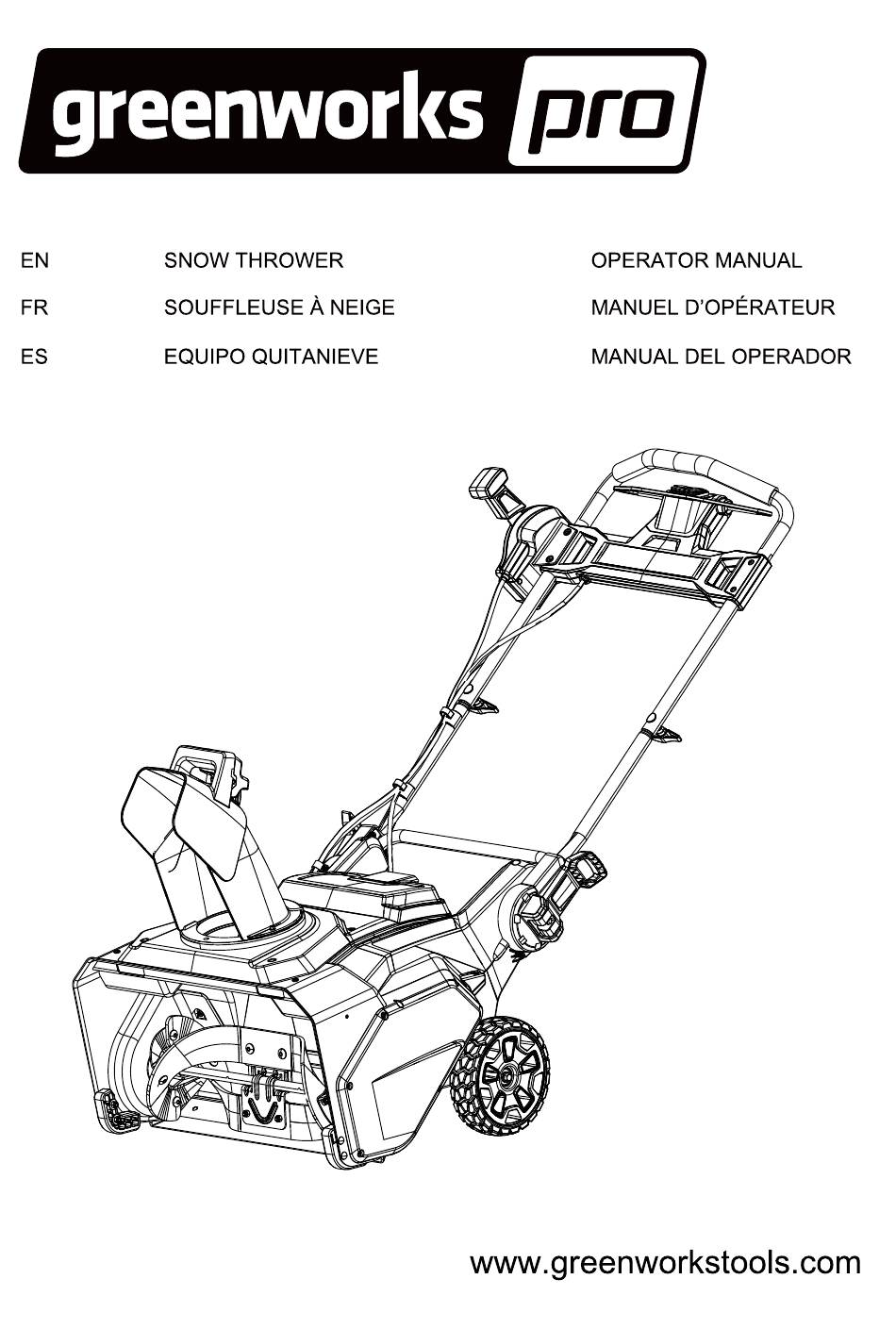

  • Page 1 2608402CO SNB404...
  • Page 2: Table Of Contents

    English Install the chute deflector........6 Description......... 2 Install the battery pack........7 Purpose.............. 2 Remove the battery pack........7 Overview............2 Operation........... 7 Packing list............2 Cold weather operation........7 General power tool safety Blue LED light...........7 warnings..........2 Start the machine..........7 Training..............2 Stop the machine..........
  • Page 3: Description

    English DESCRIPTION Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your battery- PURPOSE operated (cordless) power tool. This machine is used to remove and clear away snow from TRAINING pavements, gardens, driveways and other ground-level surfaces.
  • Page 4: Operation

    English • When battery pack is not in use, keep it away from other 1. SHUT THE ENGINE(Motor) OFF! metal objects,like paper clips, coins, keys, nails, screw or 2. Wait 10 seconds to be sure the impeller blades have other small metal objects, that can make a connection stopped rotating.
  • Page 5: Symbols On The Product

    English Item Temperature SYM- SIGNAL MEANING Battery charging temperature 39 ˚F (4 °C) ~ 104 ˚F (40 ˚C) range DANGER Indicates an imminently haz- ardous situation,which, if not Charger operation tempera- 39 ˚F (4 °C) ~ 104 ˚F (40 ˚C) avoided, will result in death ture range or serious injury.
  • Page 6: Proposition 65

    English UNPACK THE MACHINE WARNING If the battery pack cracks or breaks, with or without leaks, WARNING do not recharge it and do not use. Discard it and replace Make sure that you correctly assemble the machine before with a new battery pack. DO NOT TRY TO REPAIR IT! To use.
  • Page 7: Unfold The Middle Handle

    English UNFOLD THE MIDDLE HANDLE INSTALL THE CHUTE-ROTATION 1. Align the holes in the panel of the chute-rotation box (18) 1. Open the quick-release levers (15) on the two sides of the and the switch box (17). middle handle (3). 2.
  • Page 8: Install The Battery Pack

    English INSTALL THE BATTERY PACK Battery must be charged and stored indoors prior to use of the machine. If the machine does not start: • remove the battery pack from the machine, • charge the battery pack to 15 minutes in warm area, or when the charging light turns green.
  • Page 9: Stop The Machine

    English 2. To turn off the LED lights (33), press the light switch (25) WARNING again. Keep bystanders a safe distance from the machine. LED LIGHT WARNING Examine the work area. Remove all stones, sticks, wire, bones, and other debris that can ricochet because of the rotating impeller.
  • Page 10: Adjust The Chute Deflector

    English ADJUST THE CHUTE DEFLECTOR CAUTION Do not let brake fluids, gasoline, petroleum-based materials touch the plastic parts. Chemicals can cause damage to the plastic, and make the plastic unserviceable. CAUTION Do not use strong solvents or detergents on the plastic housing or components.
  • Page 11: Replace The Belt

    English REPLACE THE BELT 2. Remove the 4 sets of nuts and bolts on each side. 3. Remove the impellers (8). 4. Install the new impellers (8). 5. Tigthen the 8 sets of nuts and bolts that you removed. REPLACE THE SKID PLATES NOTE The range of adjustable height for skid plates is 1.5mm, WARNING...
  • Page 12: Technical Data

    English Problem Possible cause Solution Problem Possible cause Solution The machine does The battery is not Charge the battery The engine is on, The belt is dam- Replace the belt. not start. charged. by following the but the impeller aged. procedures in the does not turn.
  • Page 13 English 2. The unit, if it has not been operated and/or maintained in accordance with the owner's manual; or 3. Normal wear, except as noted below; 4. Routine maintenance items such as lubricants, blade sharpening; 5. Normal deterioration of the exterior finish due to use or exposure.
  • Page 14: Exploded View

    English EXPLODED VIEW Part No. Description xxxxxx Impeller assembly xxxxxx Scraper Kit xxxxxx Wheel Assembly xxxxxx Chute Deflector Assembly xxxxxx Quick-Release Lever Assembly xxxxxx Cam Lock assembly xxxxxx PCB board xxxxxx Skid plates xxxxxx Belt xxxxxx Upper handle assembly xxxxxx Battery...
