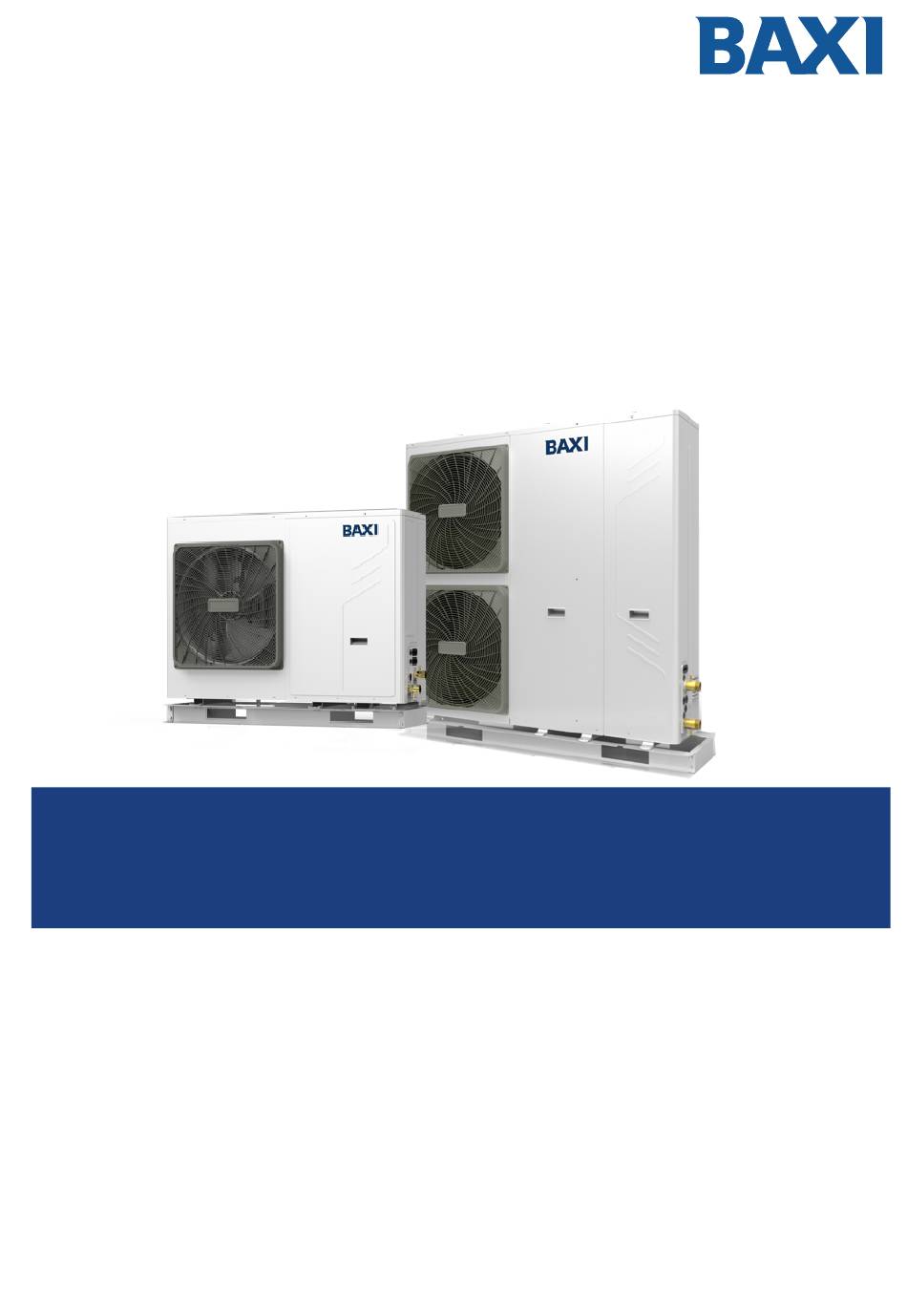

- Page 1 Operation and user manual Heat pump air/water "inverter" Assure Mono 5 Assure Mono 7 Assure Mono 9 Assure Mono 12 Assure Mono 16...
-
Page 2: Table Of Contents
This manual gives detailed description of the precautions that should be brought to your attention during operation. In order to ensure correct service of the wired controller please read this manual carefully before using the unit. For convenience of future reference, keep this manual after reading it. CONTENTS GENERAL SAFETY PRECAUTIONS About the documentation... -
Page 3: General Safety Precautions
1 GENERAL SAFETY The appliance is not intended for use by persons, including children, with reduced physical, sensory or PRECAUTIONS mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a 1.1 About the documentation person responsible for their safety. -
Page 4: Glance Of The User Interface
2 A GLANCE OF THE USER INTERFACE 2.1 The appearance of the wired controller Turn on or off the space operation Enter the menu mode or DHW structure from mode turn on or the home page off the function in the menu structure Navigate the cursor on the... -
Page 5: Using Home
3 USING HOME PAGES When you turn on the wired controller, the system will enter the language selection page, You can choose your preferred language, then press OK to enter the home pages. If you don't press OK in 60 seconds, the system will enter in the currently selected language. - Page 6 home page3： If the DHW MODE is set NON (See "FOR SERVICEMAN" > "DHW MODE SETTING" in "Installation and Owner's manual) , and if ''WATER FLOW TEMP.'' is set YES, ''ROOM TEMP. '' is set YES, (See "FOR SERVICEMAN" > "TEMP.TYPE SETTING" SETTING"...
-
Page 7: Menu Structure
4 MENU STRUCTURE The interface will be locked if there is no handing for a 4.1 About the menu structure long time(about 120 seconds:it can be set by the interface, see ''6.7 SERVICE INFORMATION''.) You can use the menu structure to read out and If the inerface is unlocked, long press "unlock", the configure settings that are NOT meant for daily usage. - Page 8 Use the room thermostat to turn on or off the unit for space heating or cooling. ① The room thermostat is not SET NON (See "ROOM THERMOSTAT SETTING" in "Installation and owner's manual). The unit for space heating or cooling is turned on or of by the room thermostat, press on/off on the interface, the following page will display: ON/OFF...
-
Page 9: Adjusting The Temperature
5.3 Adjusting the temperature Use the interface to turn on or off the unit for DHW.Press '' ''、 Press '' ''、 appear: 2） When the cursor is on the temperature of DHW mode. Press ''ON/OFF'' key to turn on/off the DHW mode. -
Page 10: Adjusting Space Operation Mode
The operation mode can not be changed. If you Then the space operation mode is… select… Always heating mode HEAT Always cooling mode COOL Automatically changed by the software based on the outdoor temperature (and depending on installer settings of the indoor temperature), and takes monthly restrictions into account. - Page 11 For example: Now time is 8:00 and temperature is PRESET TEMPERATURE 30°C. We set the PRESET TEMP as following table. The following page will appear: PRESET WEATHER TEMP. TEMP.SET MODE TIME TEMP. 00:00 25°C 00:00 25°C 00:00 25°C PRESET TEMPERATURE TIME TEMP PRESET...
- Page 12 If the weather TEMP.SET is actived,the desired PRESET TEMPERATURE temperature adjusted 、 PRESET WEATHER temperature on home page. The following page will TEMP. TEMP.SET MODE appear: ZONE1 C-MODE LOW TEMP. ZONE1 H-MODE LOW TEMP. ZONE2 C-MODE LOW TEMP. Weather temp.set function is ZONE2 H-MODE LOW TEMP.
-
Page 13: Domestic Hot Water(Dhw)
6.3 Domestic Hot Water(DHW) Use ' ''、 '' ''to scroll .Press ''OK'' to select. The following page will appear: DHW mode typically consists of the following : 1) DISINFECT PRESET TEMPERATURE 2) FAST DHW 3) TANK HEATER PRESET WEATHER 4) DHW PUMP TEMP. - Page 14 6.3.2 Fast DHW DOMESTIC HOT WATER DHW The FAST DHW function is used to force the system to operate in DHW mode. DIS- FAST TANK INFECT HEATER PUMP The heat pump and the booster heater or addition heater will operate for DHW mode together, and the DHW CURRENT STATE desired temperature will be changed to 60℃.
-
Page 15: Schedule
6.4 Schedule DOMESTIC HOT WATER DHW DIS- FAST TANK SCHEDULE menu contents as follows: INFECT HEATER PUMP 1) TIMER 2) WEEKLY SCHEDULE START START 3) SCHEDULE CHECK 00:00 00:00 4) CANCEL TIMER 00:00 00:00 6.4.1 Timer 00:00 00:00 If the weekly schedule function is on, the timer is off, the later setting is effective. - Page 16 Example: First select the days of the week you wish to schedule. Use '' ''、 '' ''to scroll, press ''OK'' to select on Six timer is set as following: unselect the day. “ ” means that the day is selected,“MON” means START MODE TEMP...
-
Page 17: Options
6.4.3 Schedule check If TIMER or WEEKLY SCHEDULE is canceled, icon'' or '' '' will disappear on the home page. schedule check can only check the weekly schedule. Go to ''MENU'' > ''SCHEDULE'' >''SCHEDULE' CHECK''. Press''OK''. The following page will appear: SCHEDULE WEEKLY SCHEDULE... - Page 18 6.5.1 Silent Mode 、 ''OK''. The SILENT MODE is used to decrease the sound of the unit. However, it also decreases the heating/cooling If the silent TIMER is selected, Press “OK” to enter, the capacity of the system. There are two silent mode levels. following page will appear.
- Page 19 Then you can do the following: OPTIONS 1) Configure the holiday away the following settings: 2) Activate the holiday mode. SILENT HOLIDAY HOLIDAY BACKUP Go to ''MENU'' > ''OPTIONS'' > ''HOLIDAY AWAY''. MODE AWAY HOME HEATER Press ''OK'' . Use ''ON/OFF'' to select ''OFF'' or ''ON'' and use '' ''、...
-
Page 20: Child Lock
The cool/heat mode can't turn on or off when the Use ''ON/OFF'' to select ''OFF'' or ''ON'' . COOL/HEAT MODE ON/OFF is locked.If you want to turn on or off the cool/heat mode when COOL/HEAT MODE INFORMATION ON/OFF is locked,the following page will appear: If the operation mode is auto mode in space heating or cooling side, the buckup heater function can not be selected. -
Page 21: Operation Parameter
The service call can show the service phone or mobile SERVICE INFORMATION number.The installer can input the phone number.See ''FOR SERVICEMAN''. SERVICE ERROR PARAMETER DISPLAY CALL CODE SERVICE INFORMATION ROOM SET TEMP. SERVICE ERROR MAIN SET TEMP. PARAMETER DISPLAY CALL CODE TANK SET TEMP. -
Page 22: For Serviceman
OPERATION PARAMETER OPERATE MODE COOL INFORMATION CURRENT 12 A The power consumption parameter is optional. COMPRESSOR FREQUNCY 24 Hz if some parameter not be activated in the system, the parameter will show "--" COMP. RUN TIME1 54 MIN The heat pump capacity is for reference only, not COMP. -
Page 23: Menu Structure : Overview
7 MENU STRUCTURE : OVERVIEW MENU OPERATION MODE HEAT OPERATION MODE COOL PRESET TEMPERATURE AUTO DOMESTIC HOT WATER(DHW) SCHEDULE PRESET TEMPERATURE OPTIONS PRESET TEMP. CHILD LOCK WEATHER TEMP. SET SERVICE INFORMATION ECO MODE OPERATION PARAMETER FOR SERVICEMAN WLAN SETTING DOMESTIC HOT WATER(DHW) DISINFECT FAST DHW DISINFECT... - Page 24 FOR SERVICEMAN 1 DHW MODE SETTING 1 DHW MODE SETTING 1.1 DHW MODE 2 COOL MODE SETTING 2 COOL MODE SETTING 1.2 DISINFECT 2.1 COOL MODE 3 HEAT MODE SETTING 1.3 DHW PRIORITY 2.2 t_T4_FRESH_C 4 AUTO MODE SETTING 1.4 DHW PUMP 2.3 T4CMAX 5 TEMP.
- Page 25 Table1 The environment temperature curve of the low temperature setting for heating - 19 - 18 - 17 - 16 - 15 - 14 - 13 - 12 - 11 - 10 1-T1S 2- T1S 3- T1S 4- T1S 5- T1S 6- T1S 7 -T1S 8- T1S...
- Page 26 The automatic setting curve The automatic setting curve is the ninth curve,this is the calculation: T1S (T1S2) T1SETH1 T1SETH2 T4H1 T4H2 State:In the setting the wired controller, if T4H2<T4H1, then exchange their value; if T1SETH1<T1SETH2, then exchange their value. Table3 The environment temperature curve of the low temperature setting for cooling -10 T4 15 T4 1 - T1S...
- Page 27 Table4 The environment temperature curve of the high temperature setting for cooling -10 T4 15 T4 1 - T1S -10 T4 15 T4 2 - T1S -10 T4 15 T4 3- T1S -10 T4 15 T4 4- T1S -10 T4 15 T4 5 - T1S -10 T4...
- Page 32 FOR UNITED KINGDOM For Baxi Customer Support and Technical Advice, contact us at 0344 871 1545 Please note calls may be monitored or recorded www.baxi.co.uk Open Monday - Friday: 8am - 6pm Weekends & Bank Holidays: 8.30am - 2pm Baxi, Brooks House Coventry Road, Warwick, CV34 4LL.
