Rhino-Rack MS15-680 Fitting Instructions Manual

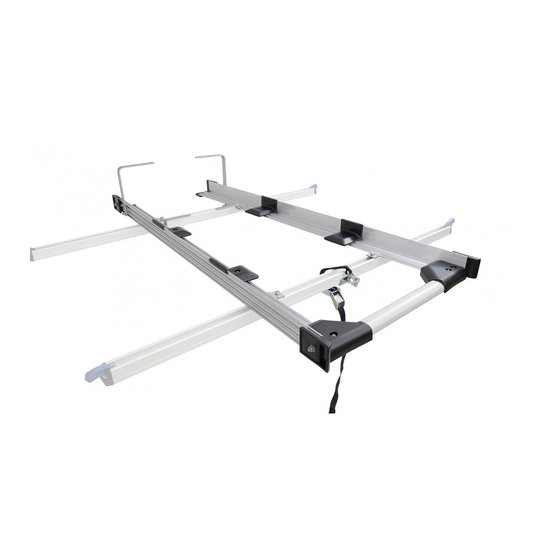

MS15-680 Short Multi Slide Step Ladder System
Place these instructions in the vehicle's glove box after installation is complete.
Important: Please read these instructions carefully prior to installation.
Please refer to your fi tting instruction to ensure that the roof racks are installed in the correct locations.
Check the contents of this kit before commencing fi tment and report any discrepancies.
Place these instructions in the vehicle's glove box after installation is complete.
Care Instruction: Wash vehicle roof prior to installing Rhino roof racks.
Maximum carrying capacity: 35kg (including frame and roof bars)
Recommendations: It is essential that all bolt connections be checked after driving a short distance when you fi rst
install your crossbars. Bolt connections should be checked again at regular intervals (probably once a week is enough,
depending on road conditions, usage, loads and distances travelled). You should also check the crossbars each time
they are re-fi tted. Make sure to fasten your load securely. Please ensure that all loads are evenly distributed and that
the centre of gravity is kept as low as possible.
Use only non-stretch fastening ropes or straps. Sensitivity to cross winds, behaviour in curves and braking.
The handling characteristics of the vehicle, changes when you transport a load on the roof. For safety reasons, we
recommend you exercise extreme care when transporting wind-resisting loads; special consideration must be taken
into account when braking.
Please remove cross bars when putting vehicle through an automatic car wash.
Load Ratings:
Maximum permissible load is 35kg per ladder rack.
Note for Dealers and Fitters:
It is your responsibility to ensure instructions are given to the end user or client.
Tab Kit Required (Sold as separate).
Vortex Crossbar 1 x RLTABM6-8
Heavy Duty
1 x RLTAB-8
Crossbar
Rhino-Rack
3 Pike Street, Rydalmere,
NSW 2116, Australia.
(Ph) (02) 9638 4744
(Fax) (02) 9638 4822
These instructions remain the property of Rhinorack Australia Pty Ltd and may not be used or changed for any other purpose than intended.
Important Information
Strap Kit Required (Sold as separate).
Vortex Crossbar SLS5
Heavy Duty
RLS5
Crossbar
Document No: R710
Prepared By: Kayle Everett
Authorised By: Chris Murty
CONTROLLED
Hoop Kit Required (Sold as separate).
Vortex Crossbar SUH
Heavy Duty
RUH
Crossbar
Fit Time: 30min
Issue No: 03
Issue Date: 01/05/2017
Page 1 of 6
