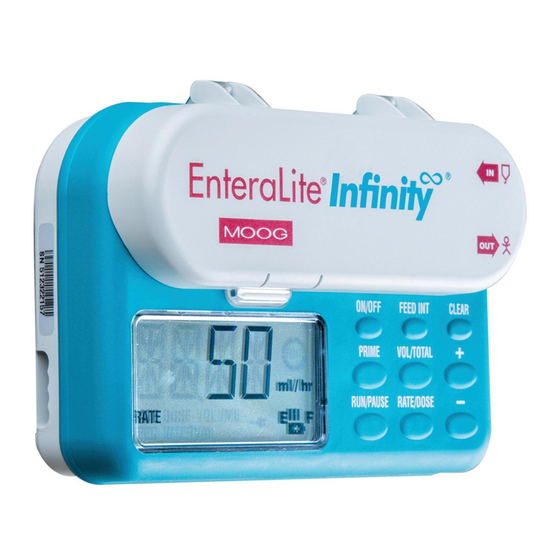

Moog EnteraLite Infinity Field Manual
Feeding pump
Hide thumbs
Also See for EnteraLite Infinity:
- Troubleshooting manual (2 pages) ,
- Operator's manual (113 pages) ,
- Manual (12 pages)
Subscribe to Our Youtube Channel
Related Manuals for Moog EnteraLite Infinity
Summary of Contents for Moog EnteraLite Infinity

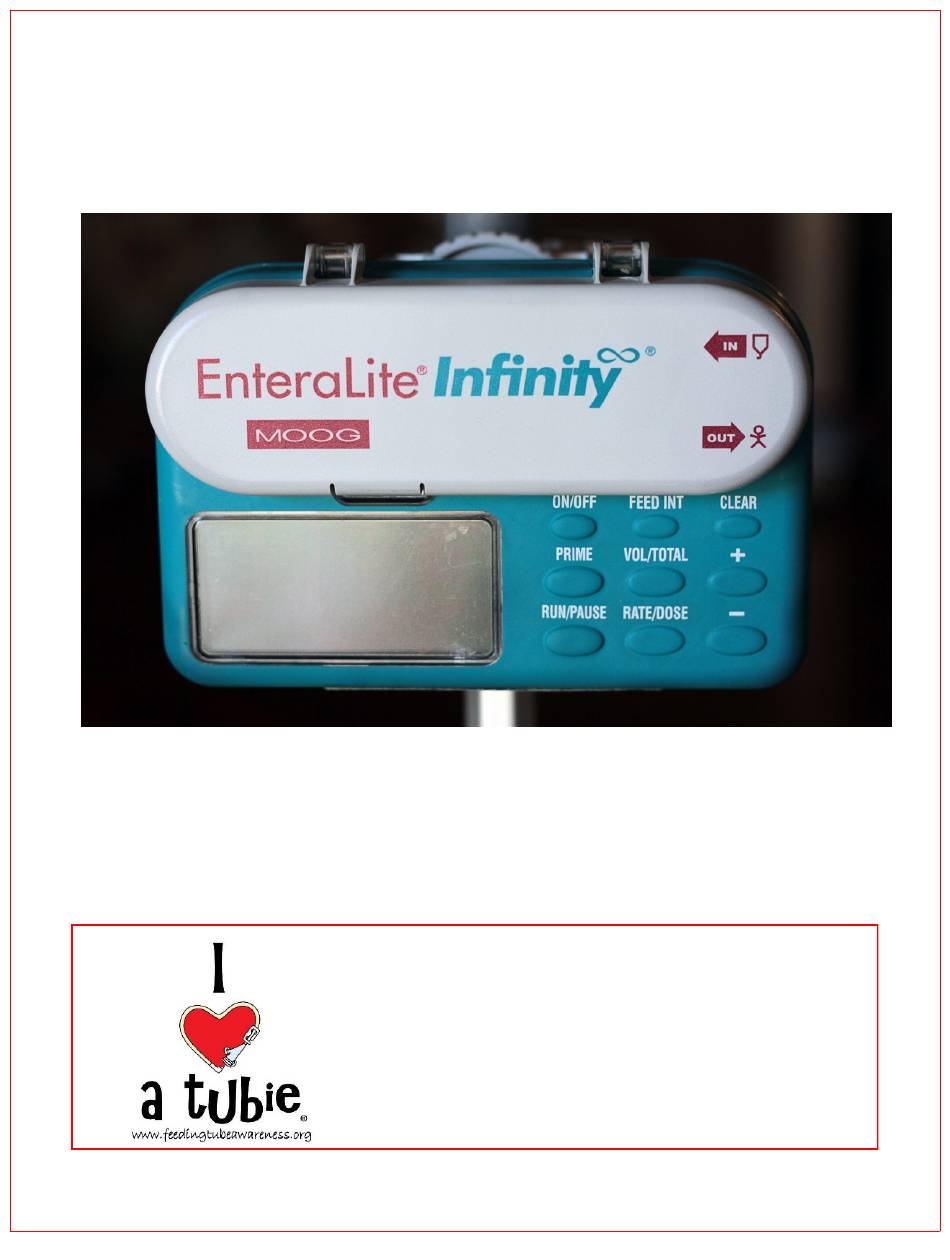

- Page 1 MOOG EnteraLite Infinity: A Feeding Pump Field Guide For family, friends, school, daycare, and babysitters Brought to you by: the Feeding Tube Awareness Foundation www.feedingtubeawareness.org www.facebook.com/FeedingTubeAwareness...
- Page 2 Filling, priming, and closing the pump bag Before filling the pump bag, rub the empty bag between your fingers to break the inside suction. If you don’t pull open the bag before filling, food will spill out the top. Pour slowly! Once you’ve filled the bag to the desired amount, PUSH down on the blue cap while TWISTING it closed.
- Page 3 REMOVE CAP from RED ADAPTER TIP at the end of the tubing and hold adapter in one hand. With the other hand, FLIP bag over and gently squeeze so the air bubble moves up towards the tubing. With one hand, SQUEEZE the TEAL TUBING at the end opposite the loop, where the droplet symbol is located.
- Page 4 Loading bag into the pump and starting a feeding Open DOOR of pump by pushing on the tab above the display screen. Stretch TEAL TUBING LOOP around the outside of the black WHEEL. Fit PLASTIC CASSETTE into SLOTS. Check that tubing is not obstructing the door. Close DOOR. Make sure feed set adapter is connected to extension set and the extension set is UNCLAMPED and connected to the feeding tube.
-
Page 5: Troubleshooting
When you hear 3 short beeps and see a circle around the word “run” on the display, the pump is running. Troubleshooting The feeding pump is beeping! What should I do? Message on display screen: NO FLOW IN Problem: Food has stopped flowing into the pump from the pump bag. Solution: Find and fix the blockage. - Page 6 Is there FOOD in the bag? If YES, see below. If NO, skip to next section. Press RUN/PAUSE and look for kinks in the tubing between the pump bag and the pump. Straighten kinks out of the tubing. Press RUN/PAUSE again. Listen for 3 beeps and look for RUN on the display;...
- Page 7 Message on display screen: NO FLOW IN (continued) Is the bag empty? If yes, press RUN/PAUSE. Refill and close bag, removing as much air as possible. Press RUN/PAUSE again. Listen for 3 beeps and look for RUN on the display; the pump is running. NOTE: Sometimes you get multiple alarms consecutively, even after fixing the source of the alarm.
- Page 8 Message on display screen: NO FLOW OUT Problem: Food has stopped flowing out of the pump Solution: Find and fix the blockage Is the EXTENSION SET clamped? If YES, press RUN/PAUSE, UNCLAMP, and then press RUN/PAUSE again. Listen for 3 beeps and look for RUN on the display; the pump is running. If the extension set is NOT CLAMPED: Press RUN/PAUSE and look for kinks in the tubing between the pump and the feeding tube.
- Page 9 Message on display screen: NO FOOD Problem: Air has gotten into the line from the bag. Solution: Press RUN/PAUSE. Reposition bag so food is at bottom of bag. Refill bag if necessary. NOTE: If a large amount of air is present in the tubing, it may be necessary to disconnect the pump tubing from the extension tube before removing air from the tubing to avoid feeding air into the stomach.
- Page 10 Message on display screen: LOAD SET Problem: Feed set is not loaded into pump. Solution: Load feed set into pump. Press RUN/PAUSE. Open DOOR of pump by pushing on the tab above the display screen. Stretch TEAL TUBING around the outside of the black WHEEL. Fit PLASTIC CASSETTE into SLOTS.
- Page 11 Message on display screen: PUSH RUN TO FEED This alarm will sound after 2 minutes unless the word RUN is on the display indicating that the pump is running. Solution: Press RUN/PAUSE to stop alarm; press RUN/PAUSE again to resume feed. Listen for 3 beeps and look for RUN on the display;...
- Page 12 Notes For more information about the Feeding Tube Awareness Foundation, scan the code below. www.feedingtubeawareness.org Page 11...
