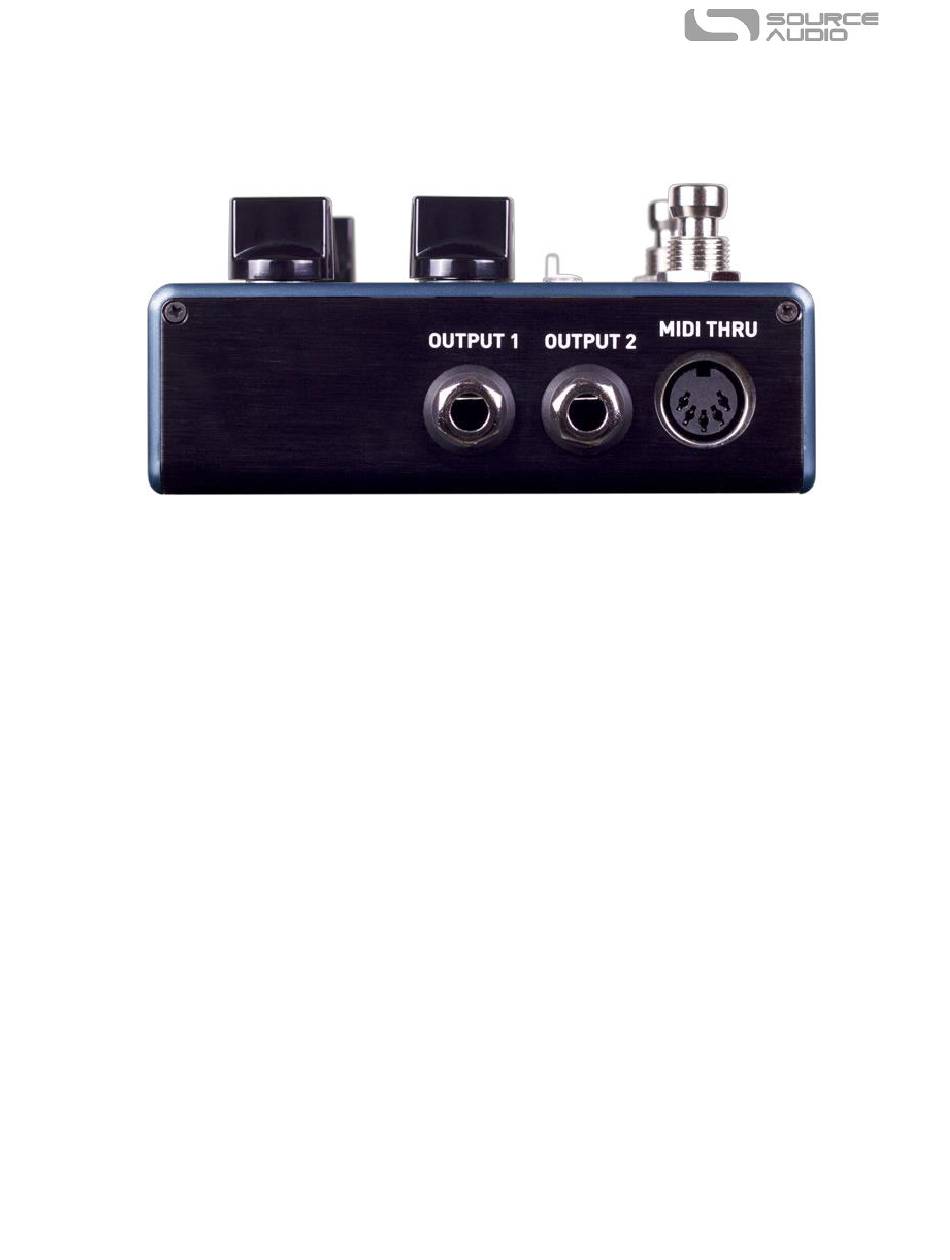

Output Side Connections
Output 1
This is the primary audio output. Connect it to your amplifier, recording interface, or the next device
in your effects signal chain using a mono (TS) ¼" cable.
Output 2
O 2 can act either as an audio output or a daisy-chain data connection for the Neuro App.
UTPUT
•
Output 2 as an Audio
carries an audio signal when the Collider is configured with a signal routing that uses stereo
outputs. Connect it to your amplifier, recording interface, or the next device in your effects
signal chain using a mono (TS) ¼" cable.
•
Output 2 as a Neuro App Data Daisy-Chain Output:
connection for the Neuro App, passing data from the Collider to the next Source Audio effect in
your signal chain. You can daisy-chain the Neuro App data regardless of whether O
configured to output audio or not. Connect O
2) using a stereo (TRS) 1/4" cable. The audio signal (if applicable) will be on the tip
(usually I
NPUT
contact of the plug, and the Neuro App data will be on the ring contact. This allows audio and
Neuro data to flow on the same cable.
MIDI Thru
This is a standard 5-pin DIN connector that echoes MIDI messages from the MIDI I
them to other devices. The Collider does not generate any of its own MIDI data, but it will copy and
output any data it receives.
