and the sleeve connection is ground. In this configuration, the Collider uses the X expression signal as
its expression source.

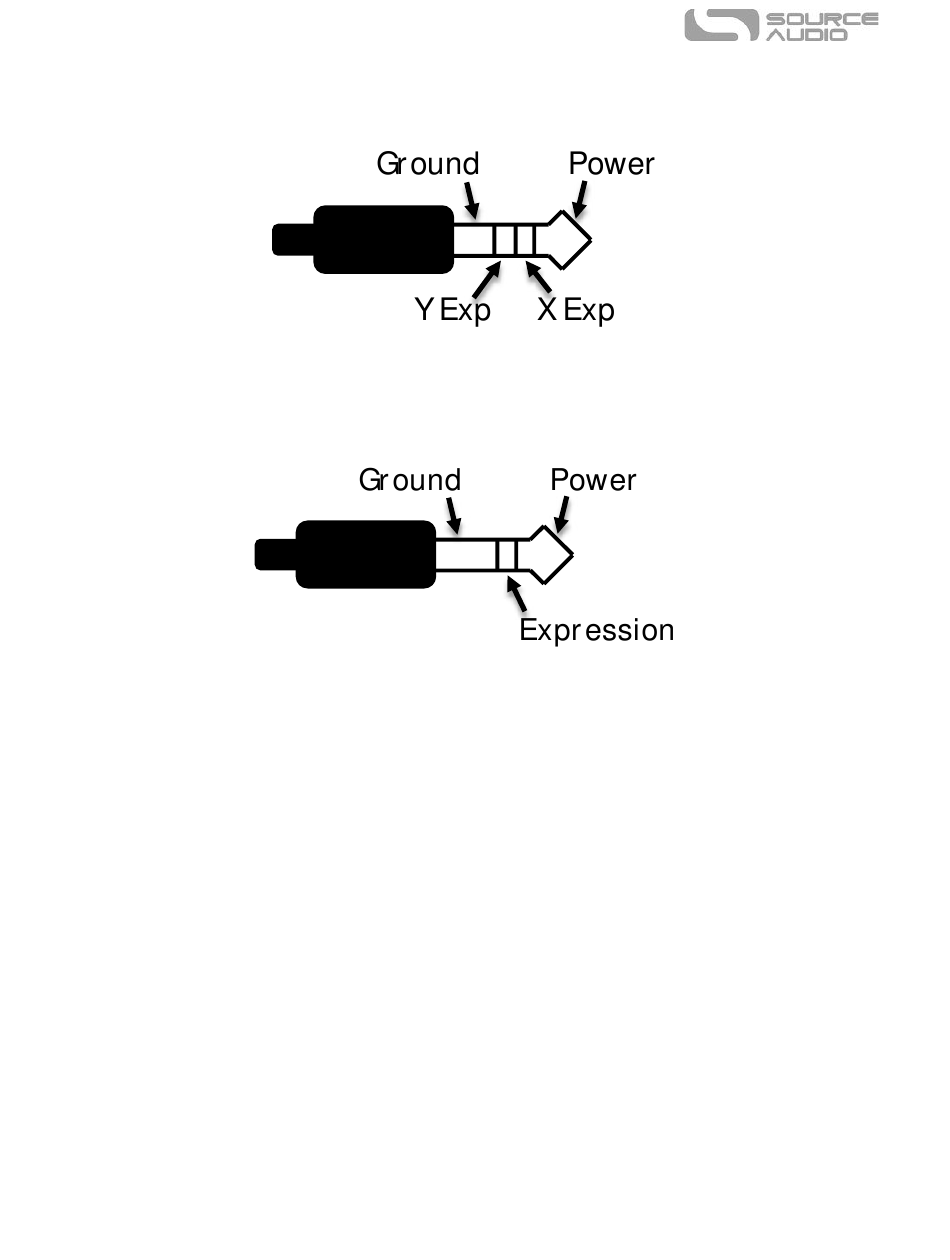

Third party expression pedals can be connected to the C
3.5 mm (1/8") TRS (Tip Ring Sleeve) plug with power on the tip, expression (the wiper of the
potentiometer) on the ring, and ground on the sleeve, as seen in the diagram below.
Expression pedals with TS (Tip Sleeve) plugs will not work correctly with the C
Collider. For proper operation, the configuration steps in the next section must be followed when
using any expression pedal, whether from a third party or from Source Audio.
Configuring the Expression Pedal
When the expression pedal is connected to the Collider, follow these simple steps to calibrate it and
map it to control different effect parameters.
1. Press the C
ONTROL
lit red.
2. Press and hold the C
(approximately one blink per second).
3. Move the expression pedal over the range of motion you would like to use to control the
Collider. If you would like to use the expression pedal's full range of motion, make sure to
move the pedal all the way from its minimum position to its maximum position. Note that
you can create "dead zones," if desired, by only moving the expression pedal over a limited
region of its full range of motion.
4. After setting the expression pedal range, click the DELAY/TAP footswitch once. The
calibration is now complete, and the C
second). Now, it is time to map the expression pedal to the effect parameters.
SA263
I button to enable external control mode. The C
NPUT
I button until the C
ONTROL NPUT
ONTROL
Collider Delay+Reverb Owner's Manual
I as well, as long as they have a
ONTROL NPUT
ONTROL
L begins to blink slowly
ONTROL ED
L will blink faster (about 2 blinks per
ED
I of the
NPUT
L should be
ONTROL ED
